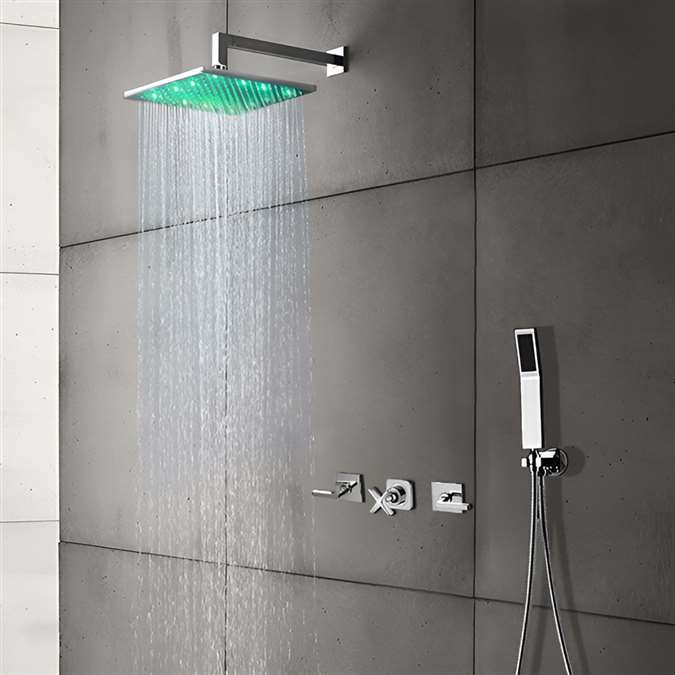

Functional Showers the New Tagress LED Rain Shower System

multicolor led showersmulti color led showresmulti color red shower headled showers

Lights are powered by the water pressure,No electrical wiring needed changes color as temperature change

Functional Showers Details

LED Shower Head, Multilevel Mixer & Hand Held

  • Saturating Spray; Massage Spray; Bubbling Spray
  • Multi-function solid brass control valve.
  • Drip Free Ceramic disc cartridge for smooth and long lasting operation
  • Easy to clean for non-tarnish life shine
  • Self-powered by Water. No Battery nor Electricity needed.
  • Complete with all the installation accessories
  • Stainless steel shower hose double hooked 0.55"
  • Anti-twist brass conical nut & brass hex nut
  • The flow rate is 2.5 GPM
Tagress LED Shower Set - Available in 3 sizes Tagress LED Shower Set - Available in 3 sizes Tagress LED Shower Set - Available in 3 sizes
Tagress LED Shower Set - Available in 3 sizes
Tagress LED Shower Set - Available in 3 sizes
  • Body : Made of heavy solid brass for durability & reliability.
  • Valve: Equipped with drip-free ceramic disc valves for long life and smooth feel.
  • When water temperature is ≤89 F (≤32 C), Green color will show automatically;
  • When water temperature is between 97 to 107 F (36-42 C), Blue color will show automatically;
  • When water temperature is between 109 to 122 F (43-50 C), Red color will show automatically;
  • When water temperature is above 122 F (>50 C), Red color will flash immediately.

Led Color:

Blue, Green, Red, Red Flash (According to the water temperature)

BathSelect Manufacturer Warranty Information

Installation Instruction For Tagress LED Shower Set

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
Tagress LED Shower Set

Shower Head Installation

  1. Use your hands counter clockwise to unscrew the old showerhead and removed it.
  2. Take out the showerhead, make sure the shower filter is placed in the connector.
  3. Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
  4. Use your hands clockwise to tighten showerhead.

Shower Mixer Installation

Hand-Held Shower Instructions

5. Hole Locations For Wall Mount
Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

7. Wall Mount Installation
Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A).

8. Drop Elbow & Hose Installation
Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4 3/4 from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.
Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).

9. Unit Start-Up
Turn on hot and cold water supplies, and check all connections for leaks.

10. Final Flushing
For final flushing, turn the valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.
