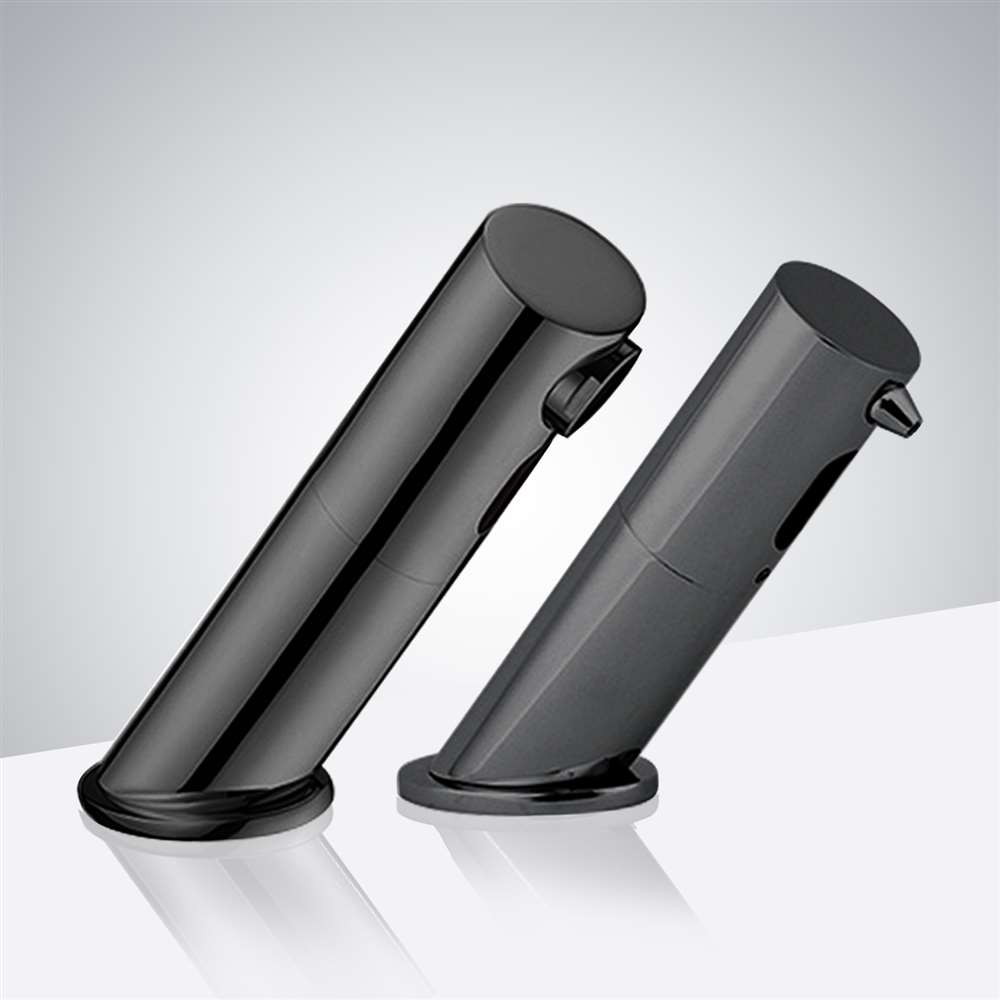

Fontana Contemporary Automatic Commercial Sensor Faucet and Matching Soap Dispenser in Finish

Fontana Contemporary Automatic Commercial Sensor Faucet and Matching Soap Dispenser

Alternative Views:


Retail Price: $1,536.40
Sale Price: $1,070.88
You save $465.52!

Price with Selected Options: $1,070.88





Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5136B


Hot & Cold Option:


Qty:
Description Technical Specs Extended Technical Information

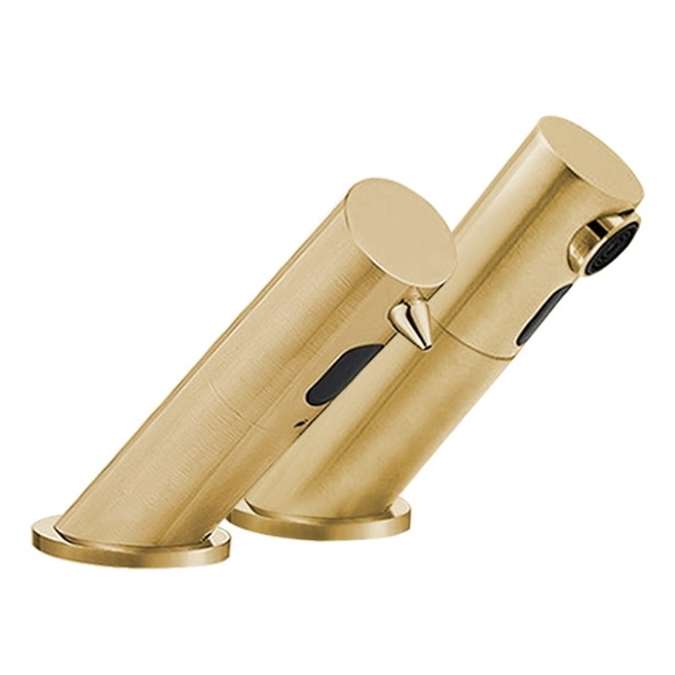

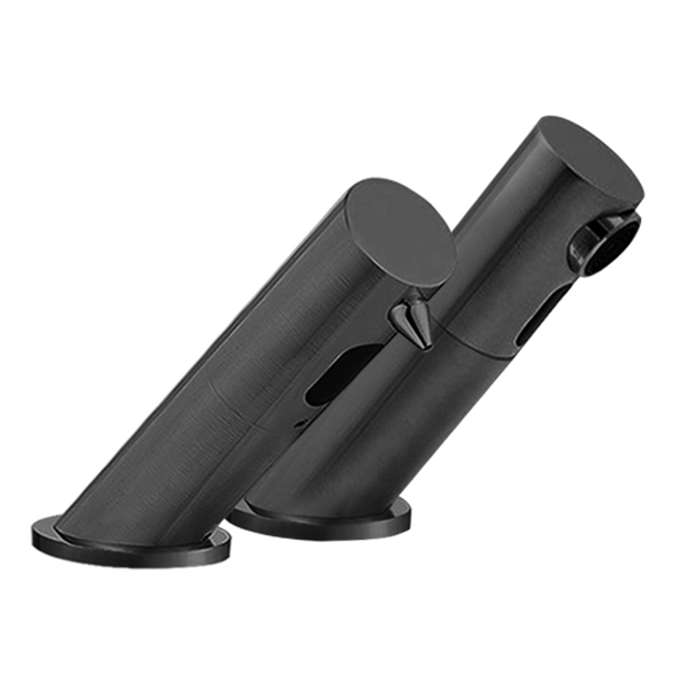

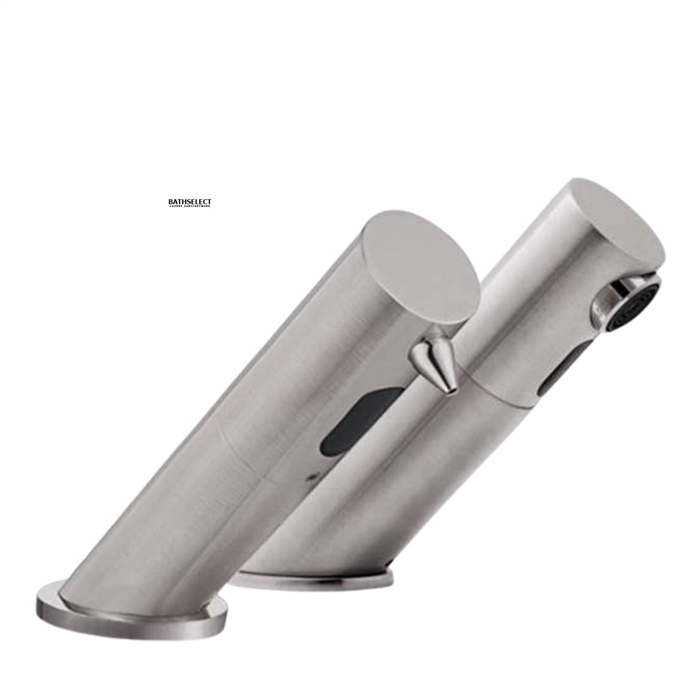

Fontana Contemporary Automatic Commercial Sensor Faucet and Matching Soap DispenserTairus Contemporary Automatic Commercial Sensor Faucet B5136 (also available in ORB or Gold Finish)

Available in Chrome Finish or Oil Rubbed Bronze Finish Automatic Hands Free Motion Sensor Faucet

Quick Details

  • Model Number: B5136B
  • Brand Name: Fontana
  • Surface Finish: Black
  • Feature: Sense Faucets, Electric Faucets
  • Surface Treatment: Black
  • Faucet Mount: Single Hole
  • Installation Type: Deck Mount
  • Number of Handle: None
  • Style: Contemporary
  • Valve Core Material: Solenoid Valve
  • Quality Management: ISO9001
  • Certificate: CE & RoHS
  • Material of Faucet: Solid Brass
  • Sensor Program: Multi-function Customizable
  • Power Supply: DC6V/AC220V/Dual Modes
  • Solenoid Valve: Brass
  • Filter Screen: Built-in
  • Sensor Components: Waterproof
  • Suitable Places: Residential /High traffic & public toilet basin
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features:
  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • This faucet can we used for Commercial / Residential use
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

BathSelect® Manufacturer Warranty Information
Installation Manual For Tairus Contemporary Commercial Sensor Faucet B5136 (also available in Dark Oil Rubbed Bronze or Gold Finish)

Sensor FaucetsSimple Installation Instructions

FAQ-Sensor Faucet

Features

Tairus Contemporary Sensor Faucet B5136

With advanced infrared sensor technology:

Sensor-operated taps increase hygiene in public and patient restrooms.

Advantage:

1. Installation is a child's game, almost like manual faucet
2. Easy servicing
3. Version with mixer to adjust the temperature also available
4. 6V battery
5. Solenoid valve inside product
6. Operates with low and high pressures (0.5 to 7Bar)
7. Range adjustment or Optional Remote adjustment

Electronic Faucet
1. Water efficient,
2. Hygienic,
3. No-touch activation,
4. Easy installation Durable,
5. Solid DR-brass construction,
6. Built-in filter,
7. ADA compliant,
8. Vandal resistant,
9. Waterproof components,
10. Complies with Food Premises Standard

Electronic Sensor Tap Specifications:
1. Body: Solid brass with Chrome
2. Power: DC AA Alkaline Battery*4, AC/DC alternately
3. Working pressure: 0.5~7Bar
4. Water supply pipe size: DN15(G1/2")
5. Ambient Tem. Range: 0.1~ 55 Celsius
6. Sensing distance: adjustable 25cm (default 25cm)
7. Sensing range setup: Digital
8. Response time: 0.3 sec (default)
9. Off Delay time: 1 sec (default)
10. Fresh Battery Life Cycle: 500,000 on/off
11. Low Battery Indicator: Red Led flash
12. Weakness of Battery: Red Led on,

Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 1 Write a review.

  2 of 2 people found the following review helpful:

4 of 5 Great Style January 23, 2023
Reviewer: American Plumbing Pros. from Tennessee
We have been looking for commercial automatic soap dispensers and sensor faucets for our facilities, and this automatic faucet from Fontana caught our attention. Price was reasonable. After installing those faucets last week it made a big difference in our facility. The finish is great and the quality is just superb. Works flawlesly.
