How does the brushed gold sensor faucet optimize touchless activation performance?

Adaptive infrared sensing algorithms continuously analyze reflected signal characteristics to improve user-detection accuracy and reduce false triggering.

What pressure-balancing features maintain consistent outlet flow?

Internal hydraulic equalization chambers compensate for supply-pressure variation and stabilize discharge velocity throughout operation.

How does the brushed gold finish resist environmental degradation?

Multi-layer metallic plating technology improves resistance to oxidation, corrosion, abrasion wear, moisture exposure, and surface discoloration.

What hydraulic engineering reduces cavitation formation?

Smooth flow-path transitions minimize localized pressure reductions and suppress vapor-pocket generation within the water circuit.

How does the faucet reduce turbulence-related inefficiencies?

Flow-conditioning channels stabilize velocity profiles and reduce eddy formation throughout the hydraulic pathway.

How does the automatic shutoff system improve water efficiency?

Sensor-controlled valve operation terminates flow immediately after user disengagement, minimizing unnecessary water consumption.

How does the faucet resist mineral scale accumulation?

Low-adhesion wetted surfaces reduce calcium buildup and preserve outlet-flow consistency during long-term operation.

What structural properties support commercial durability?

Commercial-grade electronics, corrosion-resistant construction, and reinforced solenoid assemblies withstand intensive usage cycles.

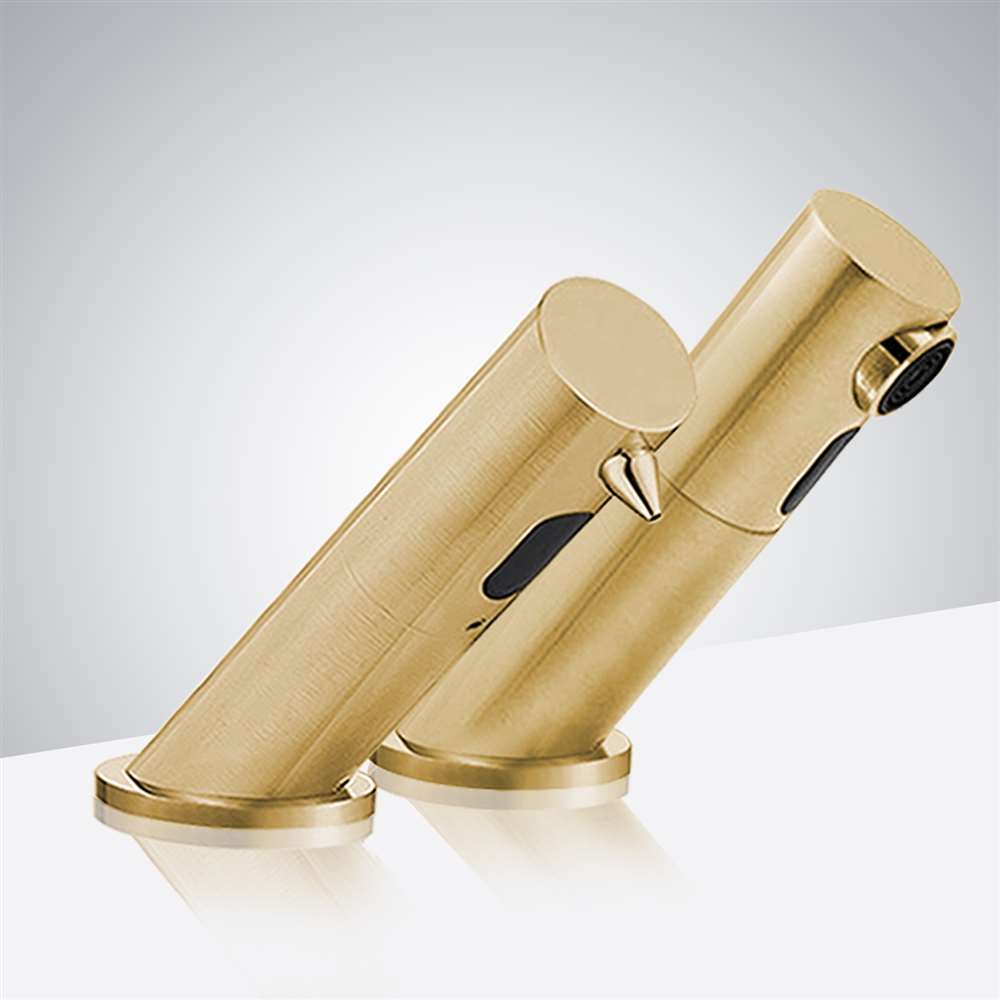

Fontana Contemporary Automatic Commercial Sensor Faucet and Matching Soap Dispenser in Brushed Gold

Alternative Views:

Retail Price: $2,031.89

Sale Price: $1,416.24

You save $615.65!

Price with Selected Options: $1,416.24

Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5136BG

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Brushed Nickel

Matte Black

Dark Oil Rubbed Bronze

Light Oil Rubbed Bronze

Fontana Contemporary Automatic Commercial Sensor Faucet and Matching Soap Dispenser

Available in Black Finish or Oil Rubbed Bronze Finish Automatic Hands Free Motion Sensor Faucet

Quick Details

Model Number: B5136BG
Brand Name: Fontana
Surface Finish: Brushed Gold
Feature: Sense Faucets, Electric Faucets
Surface Treatment: Brushed Gold
Faucet Mount: Single Hole
Installation Type: Deck Mount
Number of Handle: None
Style: Contemporary
Valve Core Material: Solenoid Valve
Quality Management: ISO9001
Certificate: CE & RoHS
Material of Faucet: Solid Brass
Sensor Program: Multi-function Customizable
Power Supply: DC6V/AC220V/Dual Modes
Solenoid Valve: Brass
Filter Screen: Built-in
Sensor Components: Waterproof
Suitable Places: Residential /High traffic & public toilet basin
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
This faucet can we used for Commercial / Residential use

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power: DC.6V
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure: 1P56

FAQ-Sensor Faucet

Automatic commercial Sensor Faucet Product Description

Commercial Sensor Faucet; Designed for institutional use—stable activation range, anti-splash aeration, controlled discharge, low-consumption flow, and long-cycle operational durability. State of the art infrared sensor technology and touch-free design minimize waste of water, by using the automatic faucet. The solenoid valve built-in filter screen prevents debris in the water from clogging the tap, and therefore increases the durability of the products This brushed gold cast brass electronic sensor faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard faucets. Uses 4AAA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi Parts are Built-in Complete. BathSelect Sensor Faucets Simple Installation Instructions No Water Dripping Design.Finish is brushed gold, Built-in Infrared AI Smart-Chip, No Water Dripping Design, Touch-free operation.Comes Complete for easy installation.

contemporary-automatic-Commercial-sensor

Conto Sensor Faucet water-saving; hygienic; automatically opens and closes

Hands Free - no touch, avoid bacteria mutual infections!

A great addition to public bathroom, hotels, restaurants, public places, government facilities...!

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2â€ NPT Male
Water Temperature Control;
check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Senso
Microprocessor: Digital, Pug And Play Sensing Range: 2â€ to 6â€
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Features

We're available to provide assistance and support for your inquires!

Featured

Contemporary Sensor^™
Technical FAQs

Commercial touchless faucet with solid brass construction, adaptive infrared sensing, dual-mode power, built-in filtration, adjustable detection and vandal-resistant automatic shutoff.

✥ How Does Sensor Self-Adjustment Work? +

The integrated microcomputer automatically evaluates the lavatory environment and adjusts the optimum detection zone according to basin color, shape and surrounding conditions. Complete final sensor commissioning only after the basin, countertop and backsplash are installed.

◇ What Is the Sensor Detection Range? +

The factory detection zone is approximately 25 cm or 10 inches based on the standard inductive board. The sensing range can be adjusted to suit different basin geometries and installation conditions while reducing unintended activation.

◯ How Fast Does the Faucet Respond? +

The digital infrared control provides approximately 0.3-second response time after valid hand detection. The default shutoff delay is approximately 2 seconds, helping maintain responsive operation while reducing unnecessary water discharge between uses.

↻ How Does the Anti-Vandal Shutoff Operate? +

The electronic controller limits continuous activation with an approximately 60-second maximum running period. This anti-vandal function helps prevent prolonged water flow when an object remains inside the detection field or the sensor is intentionally obstructed.

⌁ What Operating Pressure Is Required? +

The specified hydraulic operating range is approximately 0.05 to 0.7 MPa. Flush the supply line before connection, verify stable dynamic pressure and inspect the inlet filtration if flow becomes restricted during commissioning or scheduled maintenance.

⌂ How Is the Solenoid Protected From Debris? +

A built-in filter screen prevents sediment and other particles from entering the solenoid valve assembly. The strainer is serviceable and should be inspected periodically, particularly where water quality or supply-line debris may affect valve performance.

⚡ What Power Configurations Are Supported? +

The faucet supports DC6V, AC220V and dual-mode power configurations depending on the supplied installation package. Verify the specified controller and power components before connection and maintain accessible service space for future electrical maintenance.

⌕ What Does the Diagnostic Indicator Show? +

The flashing indicator assists with power-up diagnostics, low-battery identification and solenoid-function checks. If operation becomes irregular, inspect the power source, sensor window, detection zone, built-in strainer and solenoid assembly before changing calibration settings.

Brushed Gold

♧

2.2 GPM Standard Aerator

◇

Solid Brass Vandal Resistant

⌁

Infrared Sensor Self Adjusting

⚡

AC / DC Dual Power Modes

⚙

IP56 Protected Components

Average Customer Review: Average Customer Review: 4.5 of 5

4.5 of 5 Total Reviews: 3 Write a review.

3 of 3 people found the following review helpful:

Burden Lower	May 20, 2026
Reviewer: Isolde Pembroke, Infrastructure Consultant from Beaufort, SC

We installed this system as part of a restroom upgrade initiative completed in 2023 and have tracked its performance through 2026. The previous touchless units frequently generated maintenance requests due to inconsistent soap dispensing, activation delays, and occasional synchronization issues between faucet and dispenser functions. Since installation, the integrated system has maintained dependable sensor responsiveness and predictable operation throughout daily use. Soap delivery remains consistent, water activation is reliable, and shutoff timing has remained stable even during high-traffic periods. Maintenance records show fewer service interventions compared with the equipment previously installed, and facility staff have reported improved user satisfaction. The brushed gold finish has also remained durable with standard cleaning procedures, reducing appearance-related maintenance concerns.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Commissioning Accuracy	May 15, 2026
Reviewer: Caleb Cole, Specialist from Columbia, SC

Our contractor completed functional testing on 20 newly installed units before the building was occupied. Every faucet met activation and operational requirements without requiring sensor recalibration, allowing commissioning documentation to be signed off immediately and eliminating follow-up adjustment visits.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Compact Sensor Efficiency	April 22, 2025
Reviewer: Summit Ridge Commercial Interiors from Indianapolis, IN

We specified this unit for a mixed-use development and consulted support to confirm efficiency documentation for compliance reporting. The response included full technical sheets and installation guidance. Setup was straightforward with minor sensitivity adjustment. After roughly six months of weekday use, the unit has maintained consistent performance without lag or leakage. It appears engineered for sustained commercial reliability.

Was this review helpful to you?
