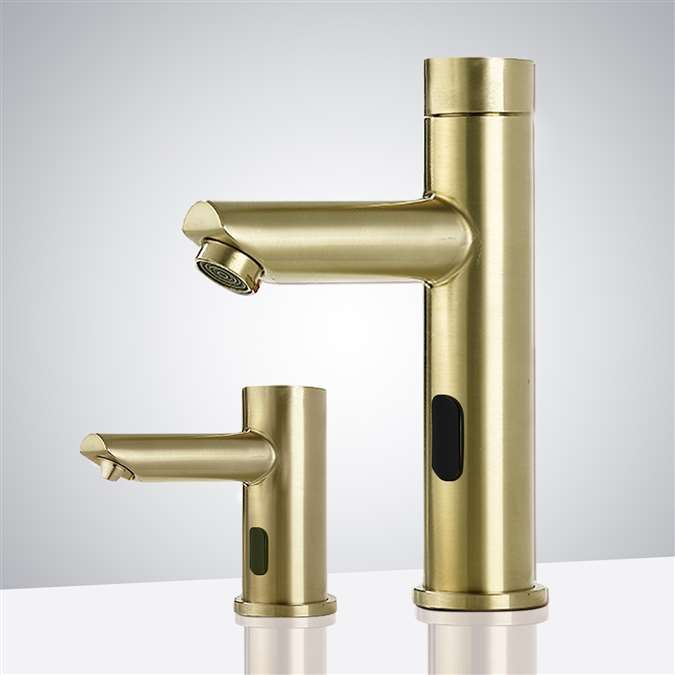

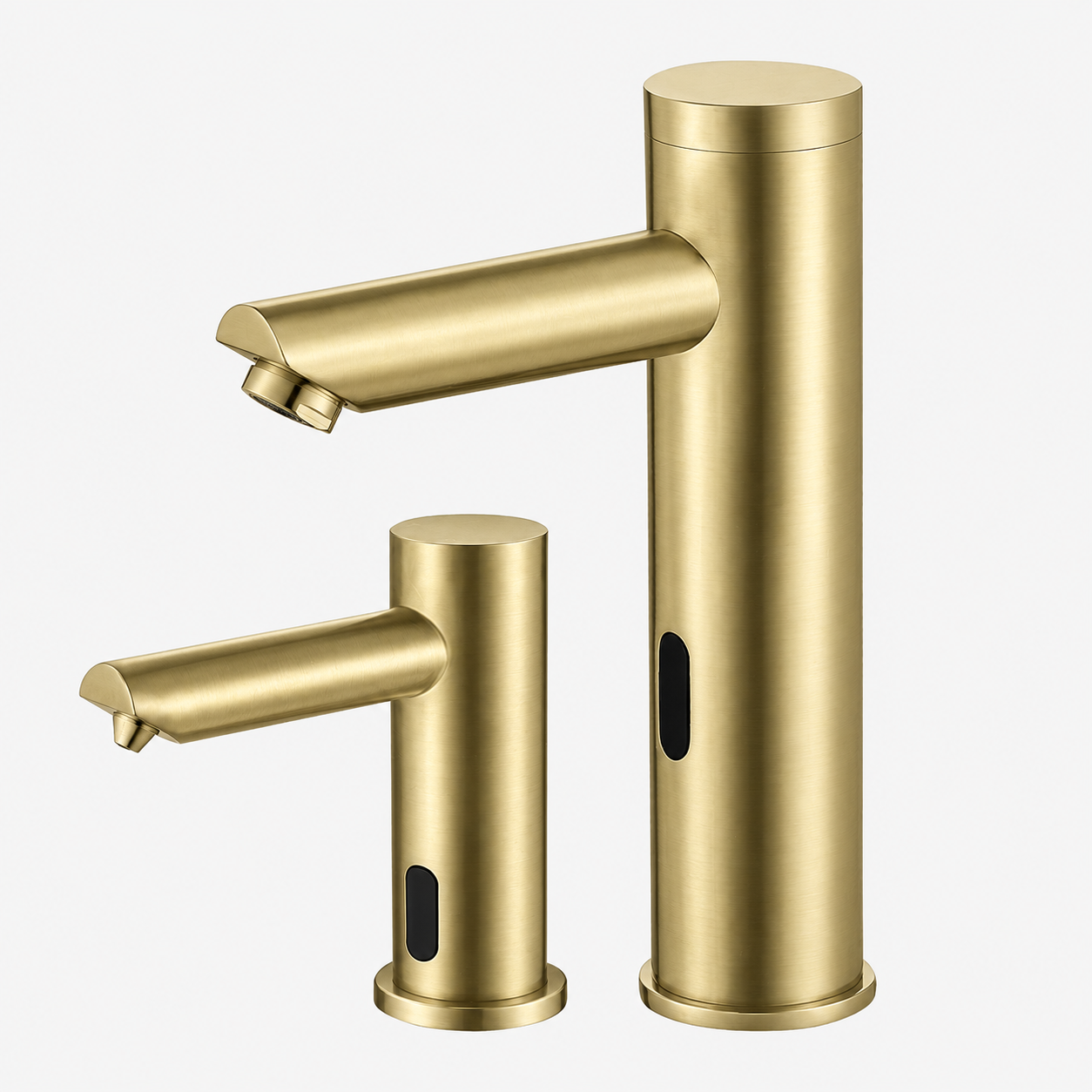

Solo Touchless Automatic Commercial Sensor Faucet and Soap Dispenser Brushed Gold Product Description
Our Solo Brushed Gold Sensor faucet and Soap Dispenser combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming Brushed Gold color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Solo Hands Free Brushed Gold Automatic Commercial Sink Faucet and Soap Dispenser
Motion detection touchless sensor faucet operation
Commercial and residential use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Brushed Gold Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow. Hands-Free Faucet & Dispenser Combo; Designed for hygienic use with dual activation and controlled output performance.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Sensor Faucets
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power:
DC.6V
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect SoloCaelvix™ Collection Brushed Gold
Features
We're available to provide assistance and support for your inquires!
Featured
categories
SOLO TOUCHLESS SYSTEM
Solo™
Commercial touchless faucet and automatic soap dispenser combination with
solid brass construction, infrared sensing, adjustable detection,
automatic shutoff, and AC/DC operation.
✥
Sensor Calibration Procedure?
+
Complete commissioning after the countertop,
sink and both touchless fixtures are installed.
The micro-computer controlled sensors can
self-adjust their detection zones according
to surrounding geometry and surface conditions.
◇
Hydraulic Checks During Installation?
+
Flush the water supply before final connection,
verify secure DN15 and 1/2-inch plumbing
connections, inspect the faucet strainer for
debris, and confirm stable pressure before
commissioning the solenoid assembly.
◯
Flow Rate Verification?
+
Verify approximately 2.2 GPM through the standard
faucet aerator under normal operating conditions.
Restricted discharge should be checked against
available water pressure, aerator condition,
inlet filtration and supply-line cleanliness.
↻
Touchless System Diagnostics?
+
Clean both sensor windows, remove reflective
objects from the activation zones, verify stable
power, inspect the faucet solenoid, and confirm
the dispenser pump is primed if either fixture
fails to activate correctly.
⌁
Sensor Detection Range?
+
The faucet sensing field is adjustable, with the
factory range typically around 4 to 5 inches.
Technical data also lists a factory detection
zone of approximately 25 cm depending on the
sensor configuration.
⌂
Operating Water Pressure?
+
Maintain stable inlet pressure within approximately
10 to 125 PSI for normal commercial operation.
The technical section also specifies a hydraulic
range of approximately 0.05 to 0.7 MPa.
⚡
Power Supply Options?
+
The Solo system supports AC110V hardwired power
and DC6V battery operation. The faucet can use
four AA alkaline batteries, while the electronic
system is designed for efficient long-term
commercial operation.
⌕
Soap Dispenser Maintenance?
+
Keep the dispenser reservoir filled with compatible
soap, prime the pump after servicing, clean the
sensor and outlet regularly, and maintain accessible
under-counter components for reservoir refilling,
battery replacement and pump inspection.
‹
›
