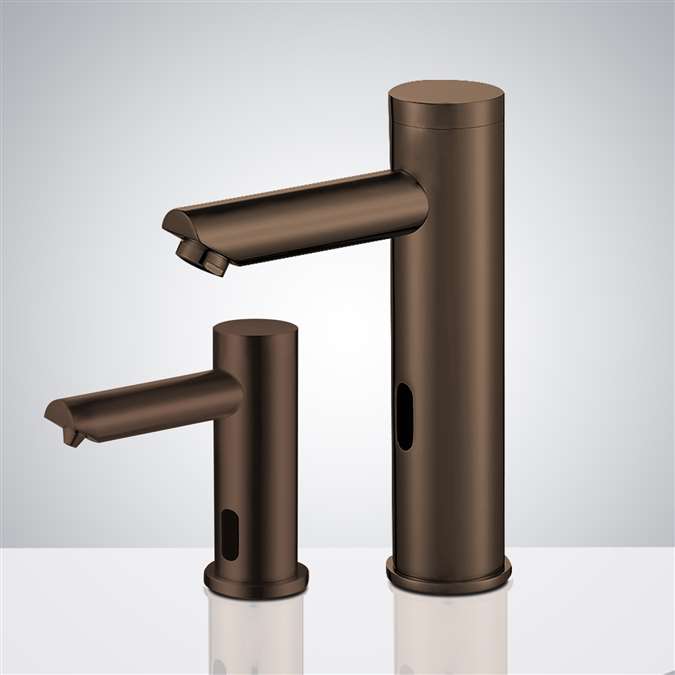

Solo Touchless Automatic Commercial Sensor Faucet and Soap Dispenser Light Oil Rubbed Bronze Product Description
Our Solo
Light Oil Rubbed Bronze Sensor faucet and Soap Dispenser combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming Oil Rubbed Bronze color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Automatic Soap Dispenser System; Touch-free dispensing unit for high-traffic environments—precise sensor control, consistent dosing, drip-resistant output, and durable refill-ready construction.
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Solo Hands Free Light Oil Rubbed Bronze Automatic Commercial Sink Faucet and Soap Dispenser
Motion detection touchless sensor faucet operation
Commercial and residential use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Light Oil Rubbed Bronze Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Light Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.Sensor faucet and Soap Dispenser. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Sensor Faucets
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power:
DC.6V
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect SoloCaelvix™ Collection - Light Oil Rubbed Bronze
Features
We're available to provide assistance and support for your inquires!
Featured
categories
SOLO TOUCHLESS SYSTEMS
Solo Touchless™
Commercial touchless faucet and automatic soap dispenser
system with infrared sensing, solid brass construction,
AC/DC power, adaptive detection and controlled dispensing.
✥
How Does the Sensor Self-Calibration Work?
+
The integrated microcomputer automatically evaluates the
lavatory color and geometry and adjusts the optimum
detection zone accordingly. Complete final commissioning
after the basin, countertop, faucet and soap dispenser
are installed in their permanent positions.
◇
What Is the Faucet Detection Range?
+
The faucet sensing field is adjustable, with the factory
setting approximately 4 to 5 inches from the sensor.
Extended technical data specifies a programmable
approximately 2 to 6 inch operating range, allowing
commissioning to match the basin geometry.
◯
How Fast Does the Faucet Respond?
+
The active infrared sensor provides approximately
0.3-second response after valid hand detection.
Water flow stops approximately 2 seconds after the
user exits the sensing field, helping provide responsive
operation while reducing unnecessary water use.
↻
How Does the Safety Shutoff Operate?
+
The system includes a factory-set approximately
30-second automatic shutoff that can be adjusted.
Extended control protection also limits continuous
operation to approximately 60 seconds to reduce
unattended or vandal-related water discharge.
⌁
How Does the Soap Dispenser Operate?
+
The coordinated dispenser uses touch-free sensor
activation to provide controlled soap delivery without
manual contact. Its dispensing system is designed for
consistent dosing, drip-resistant output and convenient
refilling in high-traffic commercial washrooms.
⌂
How Is the Solenoid Protected From Debris?
+
A serviceable built-in strainer helps prevent sediment
and foreign material from entering the solenoid valve.
During maintenance, isolate the water supply, clean
the strainer and inspect the 50-mesh particle filtration
before restoring the system to operation.
⚡
What Power Configurations Are Supported?
+
The Solo system supports AC110V and DC6V configurations.
The faucet may also operate from four AA alkaline
batteries depending on the supplied installation package.
Verify the transformer, battery and controller arrangement
before final electrical commissioning.
⌕
How Should the Faucet and Dispenser Be Maintained?
+
Periodically clean both sensor windows, inspect the
faucet aerator and inlet strainer, verify solenoid
shutoff and check soap delivery for consistent dosing.
Maintain accessible space below the counter for power,
water, soap reservoir and service components.
‹
›
Light Oil Rubbed Bronze
Light Oil Rubbed Bronze
Brushed Nickel

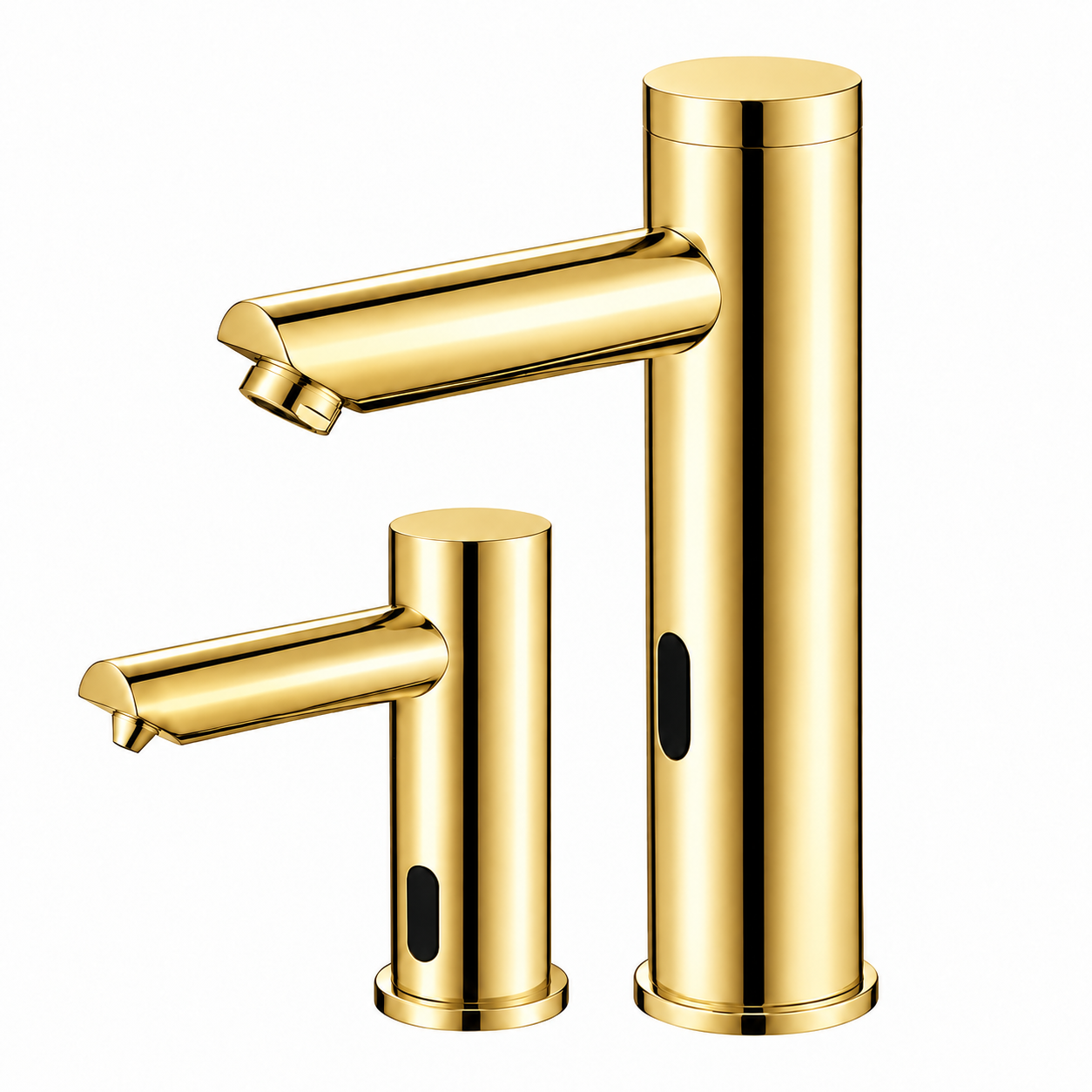

Polished Gold

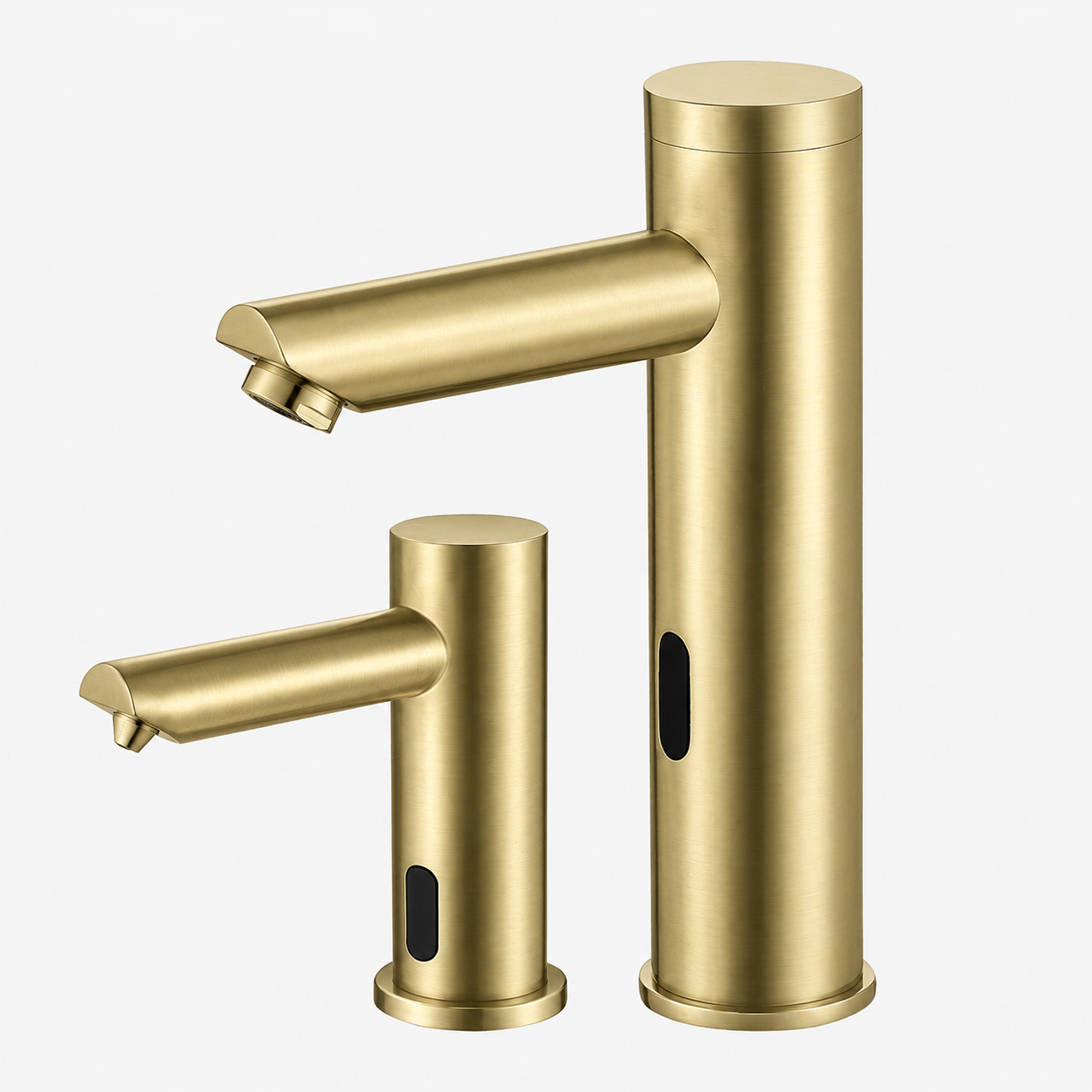

Brushed Gold

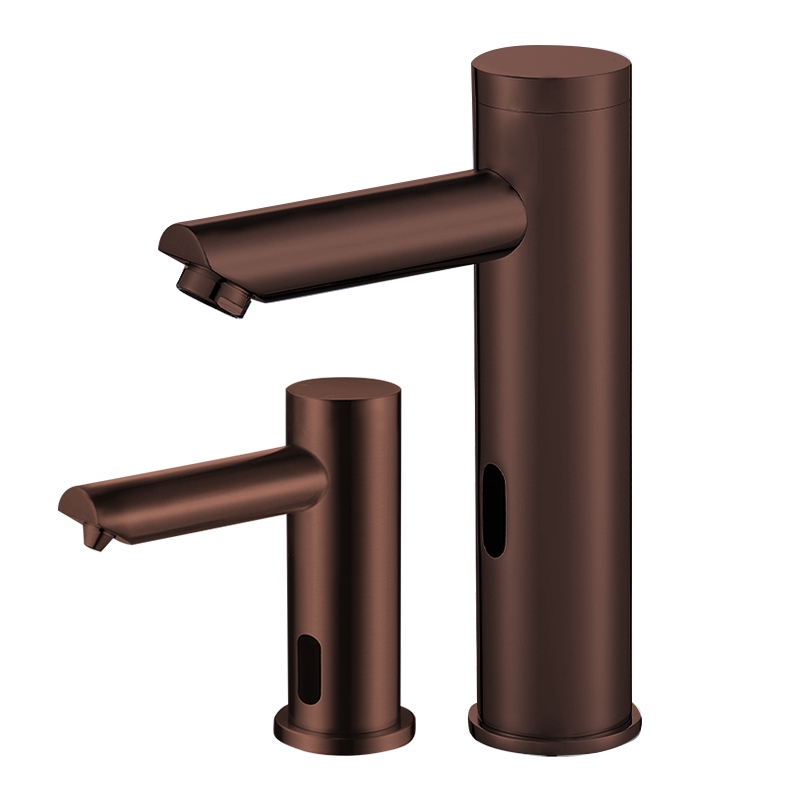

Dark Oil Rubbed Bronze
♧
