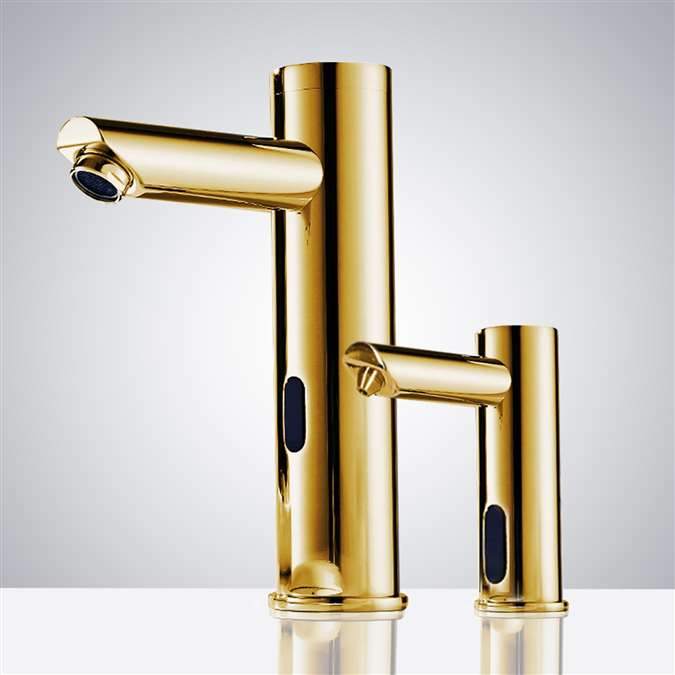

Solo Touchless Automatic Commercial Sensor Faucet and Soap Dispenser Gold Product Description
Our Solo Gold Sensor faucet and Soap Dispenser combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming Gold color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Commercial Hands-Free Faucet; Built for continuous-use facilities—fast-response sensing, anti-false triggering, low-flow efficiency, and durable construction for long service life.
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Solo Hands Free Gold Automatic Commercial Sink Faucet and Soap Dispenser
Motion detection touchless sensor faucet operation
Commercial and residential use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Gold Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Sensor Faucets
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power:
DC.6V
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect SoloCaelvix™ Collection - Gold Automatic Commercial
Features
We're available to provide assistance and support for your inquires!
Featured
categories
SOLO TOUCHLESS LINE
Solo™
Coordinated commercial touchless faucet and soap dispenser
with solid brass construction, Gold finish, infrared sensing,
AC/DC power, and electronically controlled water delivery.
✥
How Should the Sensor Zone Be Commissioned?
+
Commission the faucet only after the basin, countertop
and adjacent fixtures are installed. The active infrared
sensor provides an adjustable approximately 2 to 6 inch
detection range, allowing activation to be coordinated
with the final lavatory geometry.
◇
How Quickly Does the Faucet Respond?
+
The digital infrared control is specified with an
approximately 0.3-second response time. During final
testing, verify repeatable hand detection throughout
the intended sensing field without false triggering
from nearby reflective surfaces.
◯
What Flow Rate Should Be Verified?
+
The faucet is specified with a standard 2.2 GPM
mesh aerator. If water delivery becomes restricted,
inspect the aerator, 50-mesh particle filter,
built-in strainer and available dynamic supply
pressure before servicing the solenoid.
↻
How Does Automatic Shutoff Operate?
+
The Solo system is factory configured with an
approximately 30-second automatic shutoff that can
be adjusted. During normal operation, the solenoid
also closes approximately two seconds after the
infrared sensing field clears.
⌁
What Is the Anti-Vandal Run Limit?
+
Continuous water delivery is limited to approximately
60 seconds. This electronic safeguard interrupts
operation when an object remains inside the sensor
field for an extended period, helping control
unattended water discharge.
⌂
What Supply Pressure Is Required?
+
The extended specification identifies a working
water-pressure range of approximately 1 to 100 PSI,
while the product description also references
10 to 125 PSI. Maintain stable dynamic pressure
and flush supply piping before commissioning.
⚡
What Power Configurations Are Supported?
+
The faucet supports AC/DC operation using four
AA alkaline batteries or an AC adapter. The
electronic valve uses a 6-volt magnet-latching
solenoid, while the product description also lists
AC110V and DC6V configurations.
⌕
What Routine Maintenance Is Required?
+
Periodically clean the faucet sensor window and
soap dispenser sensor area, inspect the aerator,
built-in strainer and 50-mesh filtration, and verify
reliable solenoid closure, dispenser operation,
power connections and reservoir access.
‹
›
