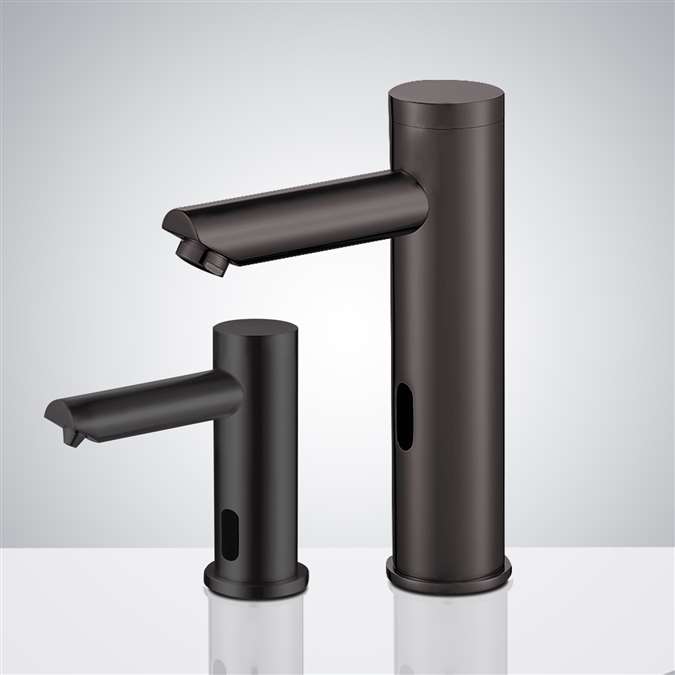

Solo Touchless Automatic Commercial Sensor Faucet and Soap Dispenser Oil Rubbed Bronze Product Description
Our Solo Oil Rubbed Bronze Sensor faucet and Soap Dispenser combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming Oil Rubbed Bronze color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Solo Hands Free Oil Rubbed Bronze Automatic Commercial Sink Faucet and Soap Dispenser
Motion detection touchless sensor faucet operation
Commercial and residential use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Oil Rubbed Bronze Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Sensor Faucets
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power:
DC.6V
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect SoloCaelvix™ Collection - Rubbed Bronze
Features
We're available to provide assistance and support for your inquires!
Featured
categories
SOLO SENSOR LINE
Solo™
Commercial solid-brass touchless faucet and automatic soap dispenser
with infrared AI sensing, AC/DC power and 2.2 GPM standard flow.
✥
Sensor Calibration Procedure?
+
Complete sensor commissioning after the basin, countertop and surrounding
fixtures are installed. The micro-computer controlled infrared system can
self-adjust its detection zone according to lavatory color and geometry,
while sensing distance can also be field adjusted.
◇
Hydraulic Checks During Installation?
+
Flush the supply piping before final connection, verify the DN15 or
1/2-inch NPT supply connection, inspect the built-in strainer and confirm
stable dynamic pressure before commissioning the electronic valve.
◯
Flow Rate Verification?
+
The detailed faucet specification lists a 2.2 GPM standard mesh aerator.
If field discharge is restricted, inspect the aerator, inlet filtration
and available dynamic pressure before servicing the solenoid assembly.
↻
Automatic Shutoff Operation?
+
The faucet is factory configured with an approximately 30-second automatic
shutoff that can be adjusted. A separate anti-vandal control limits
continuous operation to approximately 60 seconds.
⌁
Sensor Detection Range?
+
The digital plug-and-play infrared sensor provides an approximately
2–6 inch sensing range. The factory hand-detection setting is also noted
at approximately 4–5 inches and can be adjusted during commissioning.
⌂
Response & Shutoff Timing?
+
The infrared control is specified for approximately 0.3-second response
with a 2-second shutoff delay. Verify repeatable activation and complete
solenoid closure during final commissioning.
⚡
Power Supply Options?
+
The faucet supports AC110V and DC6V operation with AC/DC capability.
Battery-powered installations can use four AA alkaline batteries, with
the detailed specification listing approximately 250,000 activation cycles.
⌕
Routine Maintenance Requirements?
+
Periodically clean the faucet and dispenser sensor windows, inspect the
built-in strainer and aerator, check soap delivery, remove buildup and
verify battery condition, electrical connections and solenoid shutoff.
‹
›
