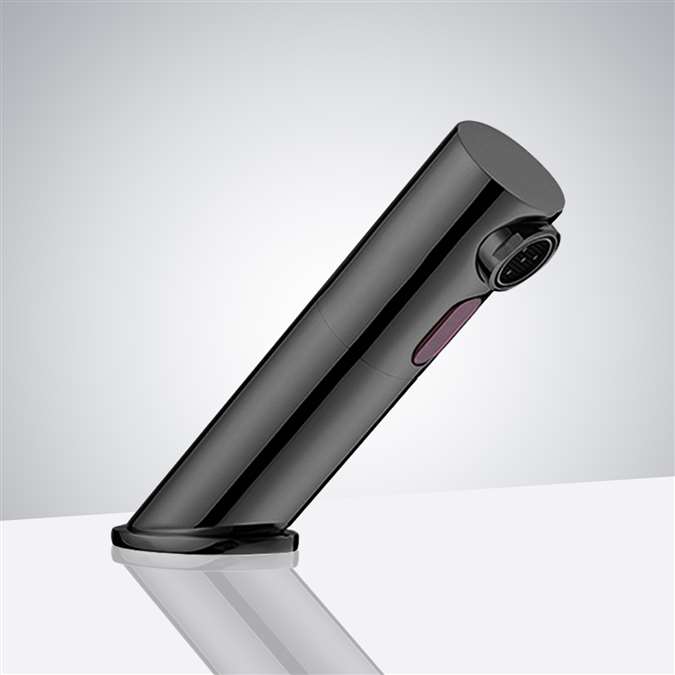

Lyon Matte Black Automatic Commercial Deck Mount Sensor Faucet
Lyon Black Automatic Commercial Deck Mount Sensor Faucet Sale

Alternative Views:
Retail Price: $925.06
Sale Price: $907.26
You save $17.80!

Price with Selected Options: $907.26





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5136B-SF


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Brushed Nickel

Brushed Gold

Light Oil Rubbed Bronze

Oil Rubbed Bronze

Lyon Black Automatic Commercial Deck Mount Sensor Faucet Tairus Contemporary Automatic Commercial Sensor Faucet B5136 (also available in ORB or Gold Finish)

Lyon Black Automatic Commercial Deck Mount Sensor Faucet Product Description

Deck-mounted unit with durable construction, optimized sensing range, and controlled flow rate. State of the art infrared sensor technology and touch-free design minimizes the waste of water, by using the automatic faucet. The solenoid valve built-in filter screen prevents debris in the water from clogging the tap and therefore increases the durability of the products This black-cast brass electronic sensor faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard faucets. Uses 4AAA Alkaline Batteries (purchase separately).

Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi Parts are Built-in Complete.

BathSelect Sensor Faucets Simple Installation Instructions No Water Dripping Design

The finish is black, Built-in Infrared AI Smart-Chip, No Water Dripping Design, Touch-free operation.

Comes Complete for easy installation.

Comes Complete for easy installationBrand Name: FontanaInstallation Type: Deck Mounted

Quick Details

  • Model Number: B5136B-SF
  • Brand Name: BathSelect®
  • Surface Finish: Matte Black
  • Feature: Sense Faucets, Electric Faucets
  • Surface Treatment: Chrome Plated
  • Faucet Mount: Single Hole
  • Installation Type: Deck Mount
  • Number of Handle: None
  • Style: Contemporary
  • Valve Core Material: Solenoid Valve
  • Quality Management: ISO9001
  • Certificate: CE & RoHS
  • Material of Faucet: Solid Brass
  • Sensor Program: Multi-function Customizable
  • Power Supply: DC6V/AC220V/Dual Modes
  • Solenoid Valve: Brass
  • Filter Screen: Built-in
  • Sensor Components: Waterproof
  • Suitable Places: High traffic & public toilet basin
  • Usage: Commercial
  • Ideal for: commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.



Sensor Activated Faucet Special Features:
  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
  • This faucet can be used for Commercial use.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ? / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

FAQ-Sensor Faucet

Lyon Matte Black Automatic Commercial Deck Mount Sensor Faucet.

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more
LYON SENSOR LINE

Lyon™
Technical FAQs

Commercial deck-mounted infrared faucet with solid brass construction, Matte Black finish, self-adjusting sensor control, dual-mode power, and solenoid-regulated flow.

✥ How Should the Infrared Sensor Be Commissioned? +
Complete sensor commissioning after the faucet, basin and countertop are fully installed. The Lyon platform uses self-adjusting infrared detection, while detection length can also be configured to coordinate activation with the final basin geometry.
◇ How Is Water Flow Automatically Controlled? +
Water flows while hands remain within the infrared detection area. The sensor signals the brass solenoid valve electronically, eliminating mechanical handle operation and allowing controlled touch-free opening and closure during each use cycle.
◯ What Flow Limitation Is Specified? +
The matching B5136 technical documentation specifies a standard 5 L/min flow limiter, with a lower 1.9 L/min configuration available in certain applications. Verify the specified flow configuration before final project commissioning.
↻ How Does the Automatic Shutoff Function Work? +
The faucet is preset with an approximately 30-second automatic shutoff safeguard. This limits unattended water discharge if the sensing field remains continuously occupied and helps reduce the risk of unnecessary water use.
⌁ Can Sensor Parameters Be Adjusted? +
The B5136 sensor platform supports configurable operating parameters including detection length, flow duration and temporary stop functions. This allows final commissioning to be adapted to site-specific lavatory conditions.
⌂ What Water Pressure Range Is Supported? +
BathSelect lists approximately 10 to 125 PSI for the product page configuration. The matching technical documentation specifies approximately 0.5 to 8.0 bar operating pressure. Maintain stable dynamic pressure during commissioning.
⚡ What Power Configurations Are Available? +
The faucet supports dual-mode electrical operation. BathSelect specifies DC6V and AC220V configurations, while related B5136 technical documentation also supports transformer or alkaline battery operation depending on the supplied control system.
⌕ What Routine Maintenance Points Require Inspection? +
Periodically clean the infrared sensor window, inspect the built-in filter screen for debris, verify secure supply and power connections, and confirm that the brass solenoid valve opens and closes reliably during scheduled servicing.
BathSelect Lyon Matte Black Automatic Commercial Sensor Faucet
Matte Black
♧
5 L/min Flow Limiter
◇
Solid Brass Durable Construction
⌁
Infrared Sensor Self Adjusting
⚙
AC / DC Power Dual Mode Design
◇
Built-In Filter Solenoid Protection

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 13 Write a review.

  1 of 1 people found the following review helpful:

5 of 5 Trouble Eliminated Sunday, July 5, 2026
Reviewer: Weston Montgomery, Analyst from Missoula, MT
The technical support representative understood every aspect of the installation and provided precise recommendations without hesitation. Their expertise helped complete commissioning quickly, and the faucet has maintained dependable sensor performance ever since.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Contemporary Sensor Control Wednesday, April 15, 2026
Reviewer: Cameron Ellis, Systems Specialist from Charlotte, NC
Following several large office restroom modernization projects where earlier sensor faucets suffered from erratic shutoff timing and unreliable sensor calibration, we installed the Lyon Faucet across multiple commercial facilities between 2021 and 2024.The faucet maintained highly dependable performance during continuous high-cycle usage. Its infrared sensing system provided accurate activation with very few false triggers, while the brass valve assembly handled long-term operation far more effectively than previous commercial fixtures.A technical improvement we noticed was the consistency of the detection range across multiple sink configurations, which simplified installation planning and reduced calibration adjustments after deployment.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 Excellent quality product! Beautiful finish Saturday, June 28, 2025
Reviewer: Studio Architects from Houston
The BathSelect Lyon Commercial Sensor Faucet was included in a luxury retail complex project in Houston. The faucet’s built-in infrared sensor showed excellent accuracy, activating instantly without unnecessary delay. Contractors highlighted the robust solenoid valve and noted that the power options—both AC and battery—offered flexibility during installation. The faucet also supported a preset maximum temperature when paired with a mixing valve, ensuring user safety. Facilities staff valued the tamper-resistant design, which limited misuse in a public environment. By delivering consistent operation under heavy traffic, this faucet has proven to be a reliable specification that satisfies both performance and compliance requirements.

Was this review helpful to you?

  5 of 5 people found the following review helpful:

5 of 5 Hygenic Product Friday, January 17, 2025
Reviewer: Hartwell Design Group from San Jose
For a technology campus in San Jose, we recommended the BathSelect Lyon Automatic Sensor Faucet. Contractors reported that the deck-mounted installation was streamlined, aided by the faucet’s standardized fittings. The faucet’s flow rate was calibrated to balance water savings with sufficient delivery, avoiding complaints from end users. The solenoid valve demonstrated durability under continuous cycles of activation, which is crucial in high-occupancy restrooms. Facilities staff appreciated the vandal-resistant design and the availability of compatible thermostatic mixing valves. The product met project specifications for sustainability credits while supporting operational goals. We found it to be a technically reliable solution for a demanding environment.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Easy to use Friday, January 17, 2025
Reviewer: Horizon Medical Design from Phoenix
In a healthcare clinic in Phoenix, the BathSelect Lyon Sensor Faucet supported strict hygiene standards with its accurate infrared activation. Facilities staff highlighted its water efficiency and dependable brass construction, while contractors noted the straightforward installation.

Was this review helpful to you?
