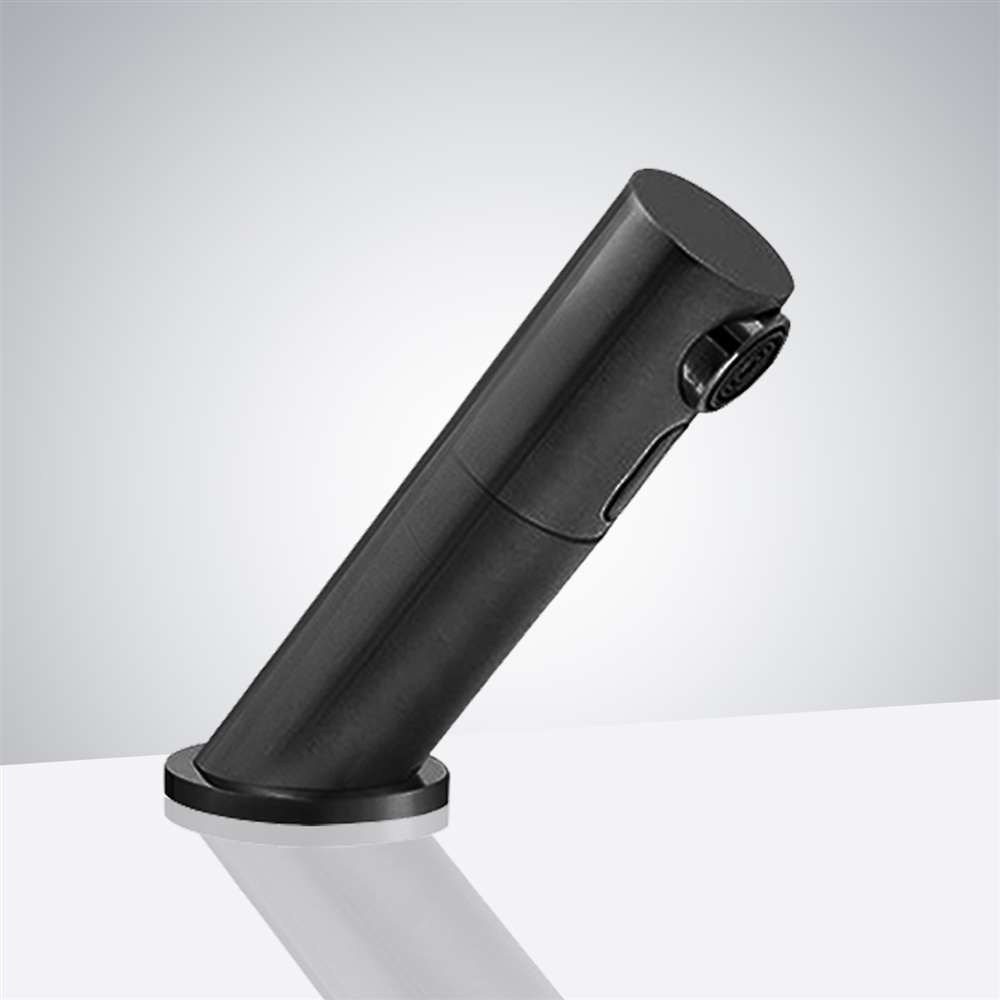

Milano Oil Rubbed Bronze/Matte Black Deck Mount Automatic Commercial Sensor Faucet
Milano Oil Rubbed Bronze Deck Mount Automatic Commercial Sensor Faucet

Alternative Views:
Retail Price: $911.26
Sale Price: $891.39
You save $19.87!

Price with Selected Options: $891.39





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5136ORB-SF


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Brushed Nickel

Brushed Gold

Light Oil Rubbed Bronze

Matte Black

Milano Oil Rubbed Bronze Deck Mount Automatic Commercial Sensor Faucet Tairus Contemporary Smart Automatic Commercial Sensor Faucet B5136 (also available in ORB or Gold Finish)

Milano Oil Rubbed Bronze Deck Mount Automatic Commercial Sensor Faucet Product Description

Contemporary Commercial Sensor Faucet; Engineered for consistent activation, low-flow efficiency, and reliable performance in high-use environments. State of the art infrared sensor technology and touch-free design minimizes the waste of water, by using the automatic faucet. The solenoid valve built-in filter screen prevents debris in the water from clogging the tap and therefore increases the durability of the products This oil rubbed bronze-cast brass electronic sensor faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard faucets. Uses 4AAA Alkaline Batteries (purchase separately).

Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi Parts are Built-in Complete. Engineered for large-scale deployments where uniform behavior across hundreds of fixtures is required.

BathSelect Sensor Faucets Simple Installation Instructions No Water Dripping Design

The finish is oil rubbed bronze, Built-in Infrared AI Smart-Chip, No Water Dripping Design, Touch-free operation.

Comes Complete for easy installation.

Comes Complete for easy installationBrand Name: FontanaInstallation Type: Deck Mounted

Quick Details

  • Model Number: B5136-ORBSF
  • Brand Name: BathSelect
  • Surface Finish: Oil Rubbed Bronze
  • Feature: Sense Faucets, Electric Faucets
  • Surface Treatment: Rubbed Bronze
  • Faucet Mount: Single Hole
  • Installation Type: Deck Mount
  • Number of Handle: None
  • Style: Contemporary
  • Valve Core Material: Solenoid Valve
  • Quality Management: ISO9001
  • Certificate: CE & RoHS
  • Material of Faucet: Solid Brass
  • Sensor Program: Multi-function Customizable
  • Power Supply: DC6V/AC220V/Dual Modes
  • Solenoid Valve: Brass
  • Filter Screen: Built-in
  • Sensor Components: Waterproof
  • Suitable Places: High traffic & public toilet basin
  • Usage: Commercial
  • Ideal for: commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.



Sensor Activated Faucet Special Features:
  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant
  • Batteries life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • This faucet best use is for commercial restrooms.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ? / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

FAQ-Sensor Faucet

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more
MILANO COMMERCIAL SENSOR LINE

Milano™
Technical FAQs

Commercial deck-mounted infrared touchless faucet with solid brass construction, adjustable sensing, solenoid valve control, and automatic water-saving operation.

✥ Sensor Calibration Procedure? +
Complete sensor commissioning after the sink, countertop and surrounding accessories are installed. The intelligent infrared control self-adjusts to the installation environment, while the sensing field can be fine-tuned where required.
◇ Hydraulic Checks During Installation? +
Flush the supply piping before final connection, confirm adequate dynamic pressure, inspect the built-in strainer for debris, and verify secure water connections before commissioning the electronic solenoid valve.
◯ Flow Performance Verification? +
Verify stable discharge after installation and confirm that the aerator and internal filtration remain unobstructed. Restricted output should be checked against available supply pressure, inlet screen condition and service-line cleanliness.
↻ Continuous Water Flow Diagnostics? +
Clean the infrared sensor window, remove reflective objects from the detection zone, confirm reliable electrical power, and inspect the solenoid valve and filtration system if water continues flowing after the user leaves the sensing field.
⌁ Sensor Detection Range? +
The infrared sensing field is adjustable for different countertop and sink configurations. BathSelect lists a factory detection zone of approximately 25 cm / 10 inches, allowing field adjustment where installation conditions require it.
⌂ Operating Water Pressure? +
Maintain stable inlet pressure within the specified operating range and confirm adequate dynamic pressure during activation. Excessive pressure should be regulated, while low pressure or clogged filtration may reduce available discharge.
⚡ Power Supply Options? +
The electronic sensor system supports battery and electrical power configurations depending on the specified installation package. Confirm the selected power arrangement before connecting the infrared sensor and solenoid valve assembly.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and outlet, inspect the built-in strainer, remove mineral or particulate accumulation, and verify positive solenoid shutoff during scheduled commercial maintenance.
BathSelect Milano Oil Rubbed Bronze Automatic Commercial Sensor Faucet
Oil Rubbed Bronze
♧
Touchless Flow Water Efficient
◇
Solid Brass Durable Construction
⌁
Infrared Sensor Adjustable Detection
⚙
Solenoid Valve Electronic Control
◇
Commercial Grade High-Traffic Use

Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 5 Write a review.

  1 of 1 people found the following review helpful:

5 of 5 Planning Confidence Restored Friday, May 8, 2026
Reviewer: Declan Ramsey, Engineer from Plano, TX
After a difficult experience with another renovation project, our engineering department approached this installation cautiously. BathSelect's knowledgeable technical team reviewed every requirement before delivery, and the project progressed smoothly with dependable performance continuing long after commissioning.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Sensor Precision Saturday, April 25, 2026
Reviewer: Patrick Holloway, Technology Consultant from Phoenix, AZ
Several contemporary bronze sensor faucets we previously installed struggled with irregular flow timing and unstable infrared performance under continuous commercial operation. After upgrading to the Milano Bronze Faucet between 2022 and 2024, overall operational consistency improved noticeably.The faucet maintained highly dependable infrared activation during heavy daily usage, while the oil-rubbed bronze finish resisted oxidation and cleaning-related surface wear substantially better than earlier contemporary fixtures. Water delivery also remained smooth without the pressure pulsing issues common with previous designer systems.A technical strength became especially apparent during long-term servicing evaluations: the sensing field maintained highly stable responsiveness near reflective surfaces and darker countertops where earlier bronze sensor faucets frequently required recalibration.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

4 of 5 Modern Sensor Precision Sunday, January 28, 2024
Reviewer: Anthony Hall from Cleveland, OH
The infrared detection is accurate and repeatable, even with varied ambient lighting. Compared to my prior brand, it has less lag and better flow control. The product arrived ahead of schedule, and customer help quickly clarified the battery/power options and maintenance routine, making long-term reliability feel realistic.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

2 of 5 Confusion Was Resolved Wednesday, February 6, 2008
Reviewer: Tyler Simmons from Austin, TX
Different representatives gave me conflicting information about whether the faucet had already shipped, so I had to explain the situation more than once. Eventually, one representative checked the order directly and clarified everything with accurate tracking and a firm delivery date. The oil-rubbed bronze sensor faucet arrived in excellent condition and looked very refined once installed. The repeated explanations were frustrating, but the final resolution and product experience were positive.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

3 of 5 Service Turned Around Sunday, September 28, 2003
Reviewer: Anthony Miller from Phoenix, AZ
Reaching someone who could answer my order question took more effort than expected, and I had to explain the issue again after being transferred. The process was frustrating at first, but the final representative took ownership, confirmed the shipping details, and provided accurate tracking. The faucet arrived in excellent condition and looked professional once installed. I was happy with the product and appreciated that the service experience improved before the order was completed.

Was this review helpful to you?
