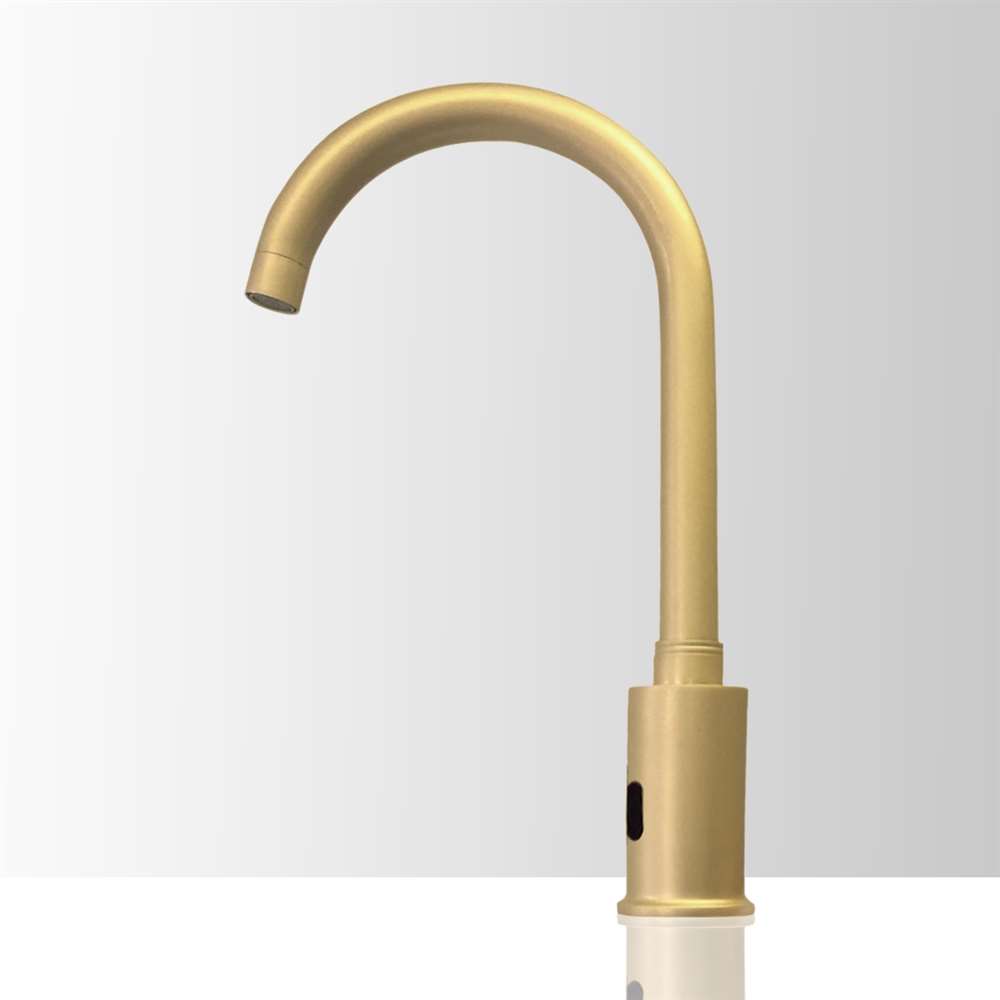

Wella Goose Neck Commercial Touchless Sensor Faucets for Bathroom Application- Solid Brass Construction Available in Polished Brushed Gold
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted)
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction; available in 3 Finishes
- Brushed Gold Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Sensor Faucet Applications: Commercial use.
- Usage: Commercial
- Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.
|
%20109.jpg)
|
|
Wlla Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Technical Details of Wella Goose Neck Brushed Gold Commercial Sensor Faucet B510BG
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Detection Zone: Factory set 25cm(based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure: 1P5
- Overall Height: 11- 1/2" (measured from countertop to the highest part of the faucet)
- Spout Height: 7-3/4" (measured from countertop to the spout outlet)
- Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of the spout outlet)
- Mounting Type: Single hole
- Number of Hole Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation
- Faucet Body Material: Brass
- Faucet Spout Material: Brass
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation
Goose Neck Sensor Faucet Product Description
|
ADA Compliant. Heavy Duty
Automatic Sensor Faucet, Solid Brass, 360 degree rotating neck. Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Residential Applications. Perfect for Bathroom or Kitchen.
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!
Sensor Faucet finish is polished Brushed Gold, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Detailed Product Description: Electronic Faucet Goose Neck Sensor Faucet B510
Tap Features
- Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor4. Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- Battery: 4*'AA' size cells
- Operational water pressure range: 0.05 - 0.6MPa
- Water supply pipe size: DN15 (G1/2")
- Ambient temperature range: 0.1 - 45ºC
- Sensing distance: factory set 30cm
- Time delay: less than 0.5 seconds
- Operation duration: power will automatically cut off after continuous use for 60 seconds
- Color: chrome
|
|
|
|
|
|
|
