Installation Instructions for Vicenza Bathroom Shower Set

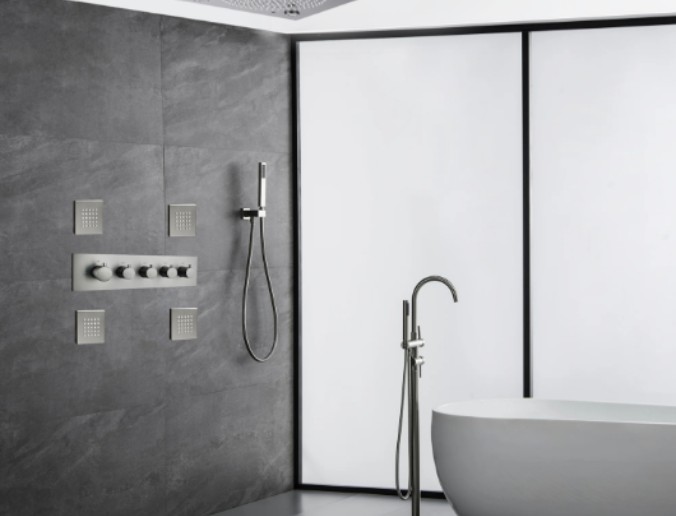

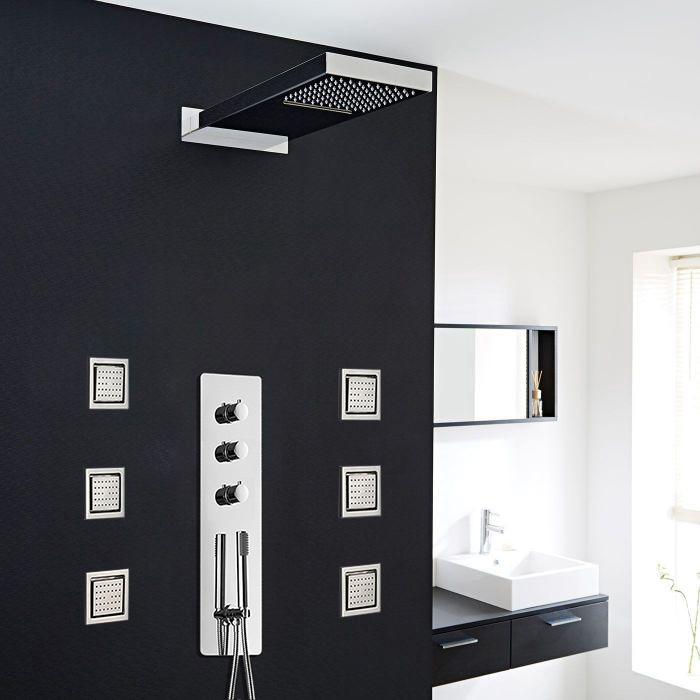

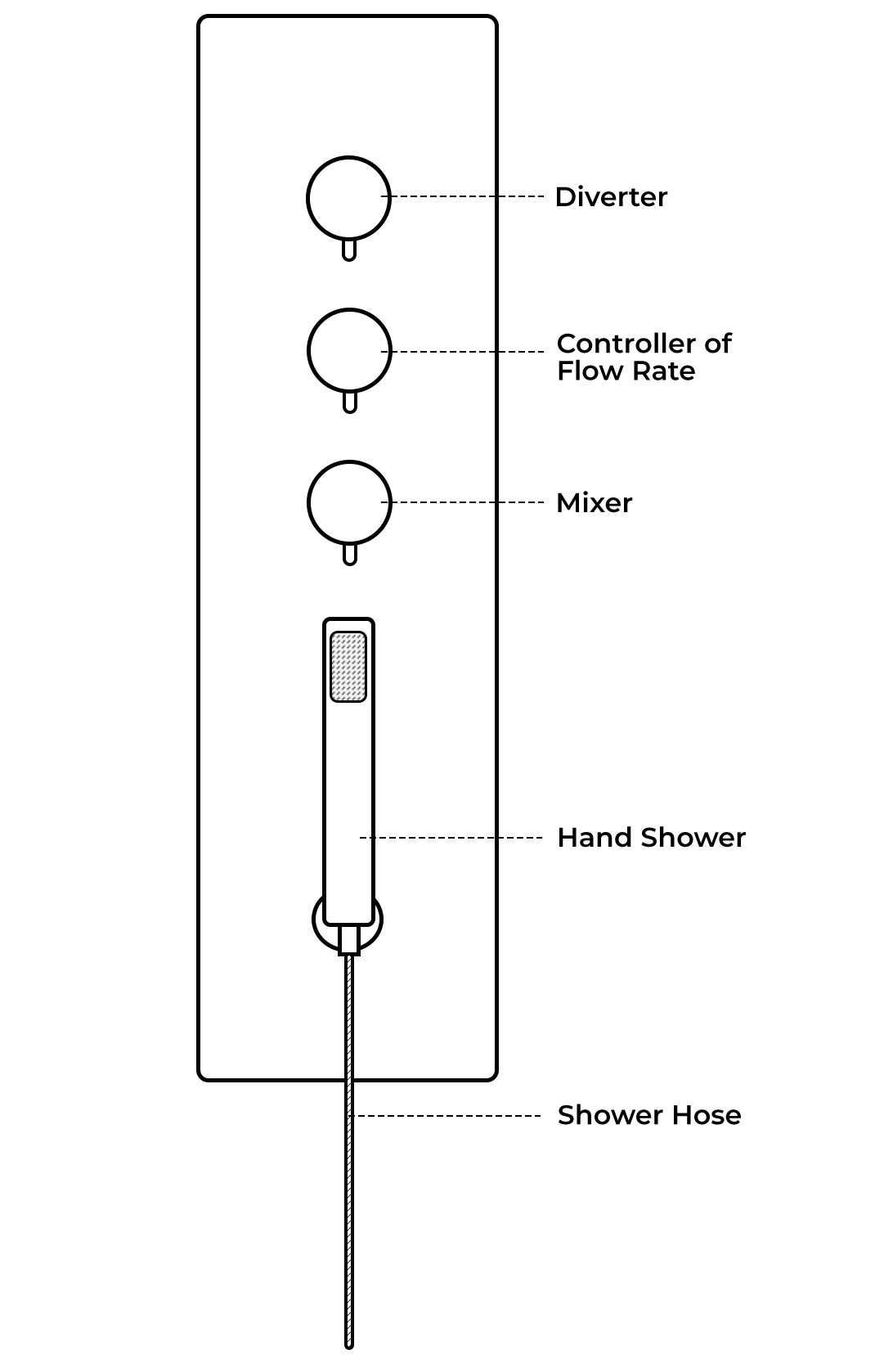

Vicenza Thermostatic Bathroom Shower Set with Rainfall Shower Head & Hand Shower
The Taranto Bathroom Thermostatic Shower Set is a Rainfall Showerhead, Body Massage Jets & Handshower combo which comes in Chrome Finish. The Taranto Showerset is a Wall-Mount Shower Set which Valve that controls the Hot / Cold Water flow and the Shower functions along with 6 Body Shower Jets.
Taranto Bathroom Shower Set with Rainfall Shower Head & Hand Shower Specifications
Vicenza Bathroom Shower Set Specifications
- Type : Shower Set
- Features : Rainfall Shower Head, Body Massage Jets & Hand Shower
- Hot / Hold Water : Yes
- Cold/Hot Water Control Type : Single Holder Dual Control
- Installation Type Wall Mount
- Surface Finish : Chrome
- Surface Treatment : Polished
- Valve Core Material : Ceramic
- Size : 15.74" (40 cm)
|
|
BathSelectฎ Manufacturer Warranty Information
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
|
1. Open the top cover and drill according to the marked position.
- Mark by the position of the four holes.
- Take care to avoid wires and pipes to prevent damage.
- Be sure to confirm that the four holes are on the same horizontal line
2. Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
3. Reinstall the top cover.
Body-Jet Installation
Multiple Bodyspray Installation
Water Supply
Nipple Mamelon Nipple
Pressure Balancing Loop
1. Route the water supply lines.
2. If installing more than one bodyspray off the same supply line, construct a pressure balancing loop. Locate a tee along the loop at each bodyspray installation location.
3. Do not strap the pipes at this time.
Single Bodyspray Installation
Nipple Mamelon Nipple
1. Route the water supply line.
2. Install an elbow to the end of the supply pipe at the bodyspray installation location.  Install the Plaster Guard
Elbow (or Tee)
Install the plaster guard
Set Piping Depth
Align mark with the front of the stud face
Thin Wall
Align mark with the front of the stud face
Standard Wall
Install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).  1. Install the water-resistant wallboard.
2. Cut out a 4" (10.2 cm) to 4-1/4" (10.8 cm) square at each the installation location.
3. Install the finished wall material.
 Escutcheon
Leak Shield
Adapter
Extension
Socket Wrench With Bit
Screw
Waterway Passage
1. Insert the escutcheon into the rough opening. The double ribs of the leak shield should be facing up.
2. If the leak shield makes contact with the elbow: Enlarge the hole in the back of the leak shield to 1-1/4" (3.2 cm).
3. Thread the adapter onto the nipple using the provided 0.4" bit, 11 mm or 7/16" socket, extension and socket wrench. Use masking tape to hold the bit in place, as the bit could fall off and cause damage.
IMPORTANT! The escutcheon should sit loosely at this point. If it is tight against the wall, use a longer pipe nipple.
4. Align the groove in the waterway with the double ribs on the leak shield.
5. Press the waterway into place over the adapter. Secure the waterway to the adapter with the screw provided.
6. Verify that the escutcheon does not turn or shift.
 With the ribs of the sprayhead facing up, install the sprayhead to the waterway.  With the ribs of the sprayhead facing up, install the sprayhead to the waterway.  Mixer Installation
First, carve a rectangular slot in the wall that 39.3" high from the ground and two inlet water pipeline (the overall height shall not be greater than 65.7").
Put the concealed box into the slot on the wall and fixed with the screws (no slipping, no loosening).
Link the hot and cold water pipes, then tighten the screws (Attention: Filter washer must be installed to avoid dirt clogging), finally paste up the tiles as the picture shows.
Link the hot and cold water pipes; accurately (please clean up the foreign body of connecting pipes installation, and hang up the preassembled panel components following the picture shows. (A must to all click into the B slot).
NOTES
- Reasonable use of this product by technical parameters.
- The product temperature control valve is an automatic thermostatic valve, will not be affected by the temperature change under normal using any of the following circumstances that may affect the use.
- Low water pressure.
- Hot water inlet temperature is lower than 38 degrees.
- Cold aster temperature is too low.
- Used with the gas water heater.
Special note: If the cold water pipe suddenly anhydrous, the thermostatic valve will automatically switch to stop the water, avoid the hot to bodily harm.
For a more rational use of this product. Here recommended the storage-type electric water heater. Maintenance considerations:
- After the installation, please dredge it with cold aster and repeat opening and closing to make sure the installation meets the requirements and no irregularities, then use the hot water.
- It only allows using a soft cloth to clean the water stains and dirt on the surface of the panel.
- Not use any acidic or alkaline cleaners or will corrode the surface.
- While the water is highly contaminated. Please stop using to avoid plug the water hole.
- If you encounter a small shower water, please clean the filter gasket of the inlet valve.
|
