Installation Instructions for Lenox Oil Rubbed Bronze Finish Commercial Automatic Sensor Faucet | BST992RB


Here is a faucet in a class of its own. It has an oil-rubbed bronze finish which sets your restroom apart from others. The infrared sensors enable a totally hands-free operation, effectively preventing transfer of germs. The Lano oil-rubbed bronze faucet is compatible with all standard US plumbing. The Infrared AI Smart-Chip enables complete touch-less operation. The faucet comes with easy installation instructions and all the required hoses and accessories. There is a water-resistant solenoid enclosure, which houses the solenoid valve set at a 30-second shutoff, but can be adjusted according to user preferences. The faucet uses 4AA alkaline batteries and has an advanced energy-saving design for longer battery life but can also run on AC110V. Water pressure delivery is 0.5 - 7.0 KGS/cm, 10-125 psi. The robust brass construction has a dark tone with an oil-rubbed bronze finish, giving the faucet a sleek, aesthetically-pleasing effect. The faucet can be used in commercial and residential locations, and is ADA Compliant, and has a 1-year warranty. This cast brass electronic faucet in Oil Rubbed Bronze finish reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Features: Visit Product Page
  • Complete motion detection touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure : 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid brass construction, dark tone Oil Rubbed Bronze Finish
  • Easy to install - instructions included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life

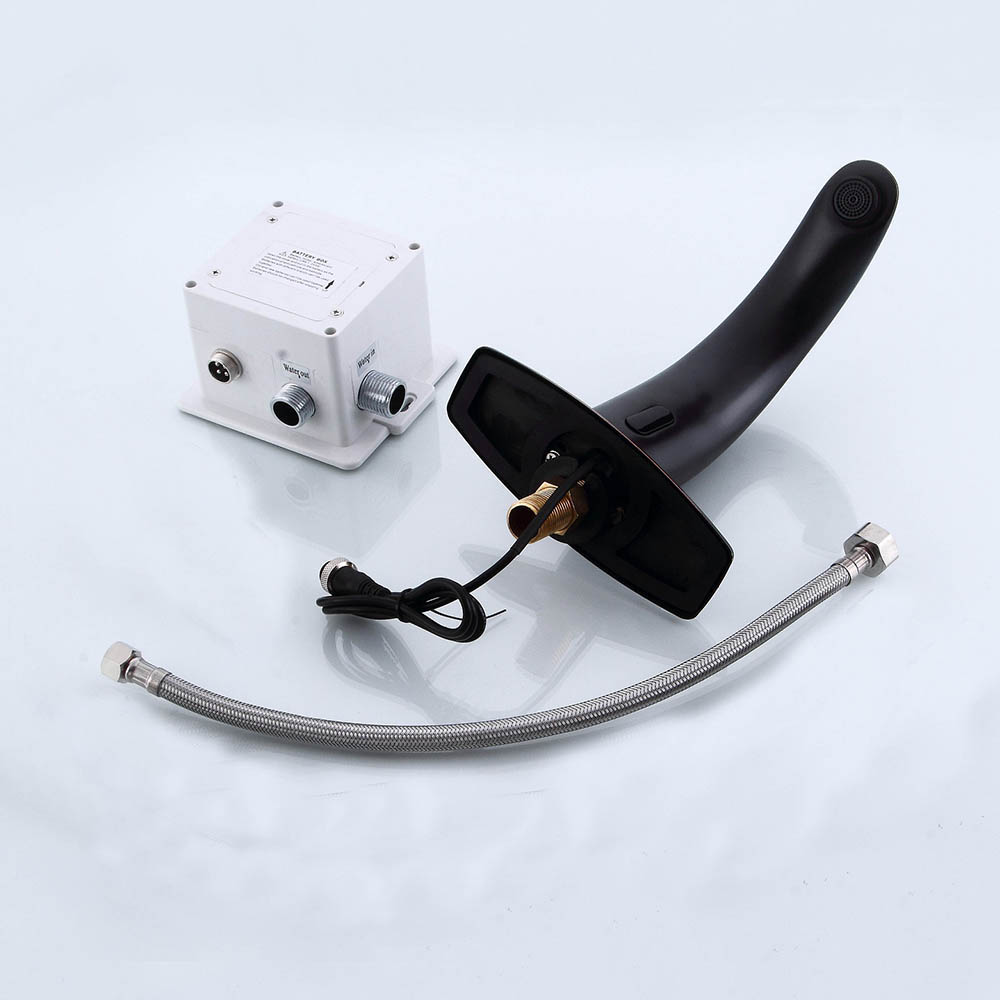

  • Sensor faucet comes complete with hoses & accessories
  • Power Supply : AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Fit for residential or commercial use applications.
  • ADA Compliant.
  • Easily can be installed in new or retrofit applications.
  • Usage: Commercial / Residential
sensor faucet Lenox Oil Rubbed Bronze Finish Commercial Automatic Sensor Faucet

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

  • Sensor Faucet Installations Instructions


    Size:




    Battery (DC 6V) Only Control Box

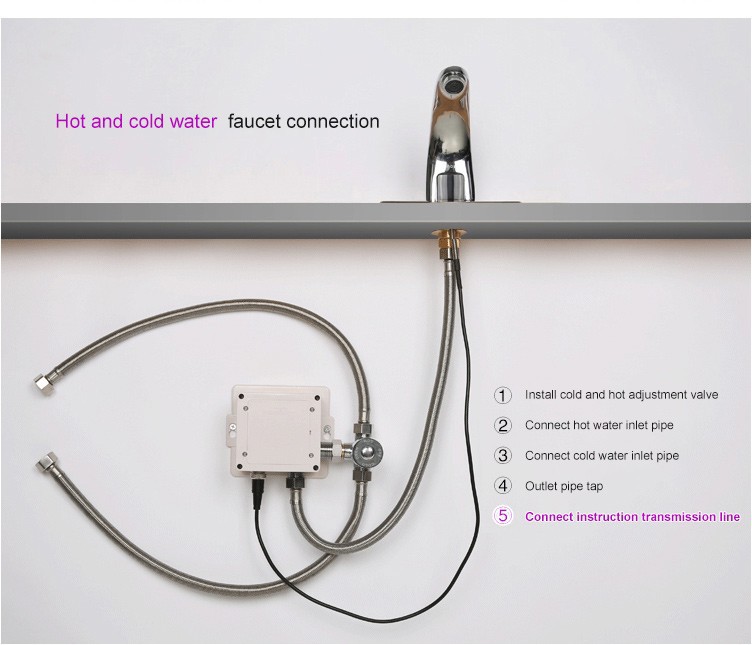

    Step 1: Step 2: (Hot & Cold Connection)
    infrared



    Battery (DC 6V) & AC 220V Control Box
    Step 3: Step 4:


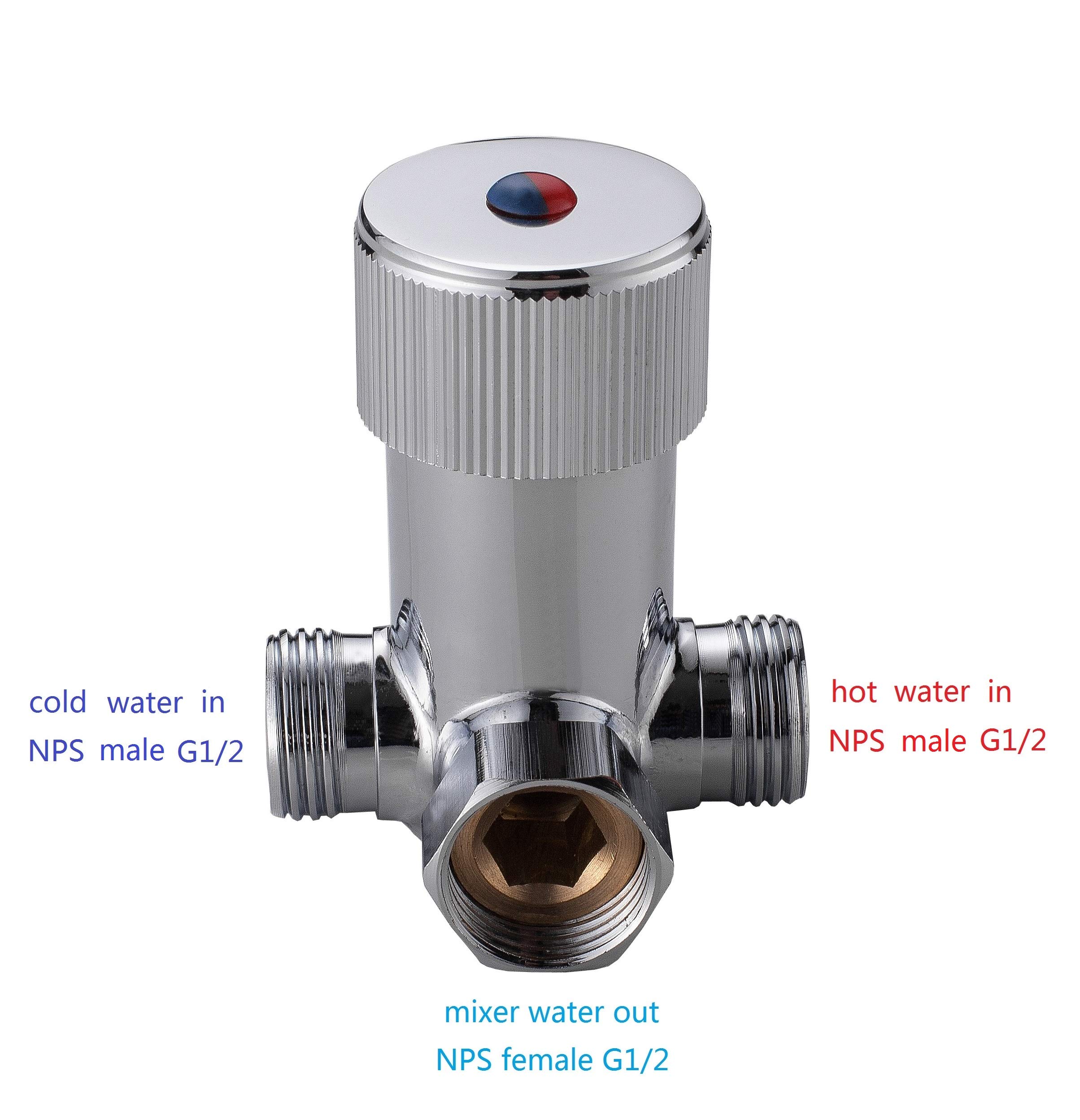

    Step 5: (Flush debris from waterpipes) Step 6: Hot & Cold Regulator


    Step 7: (Correct way for Hose)

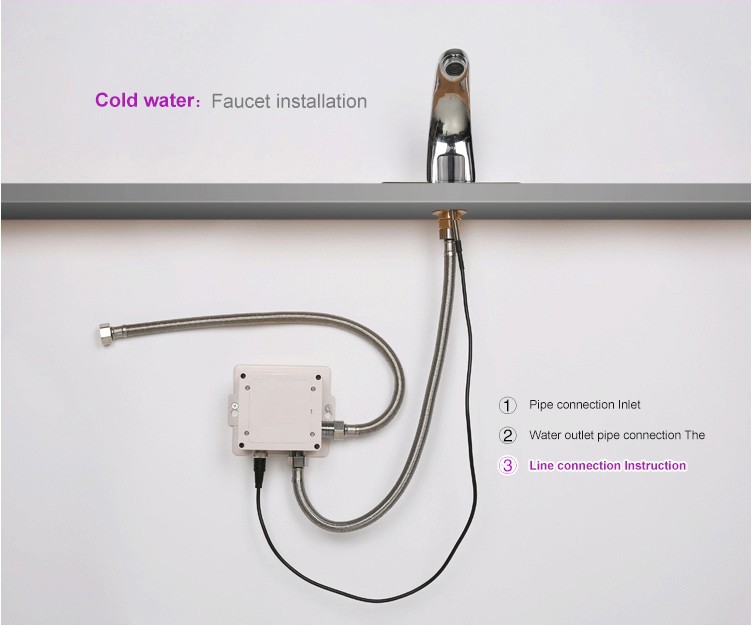

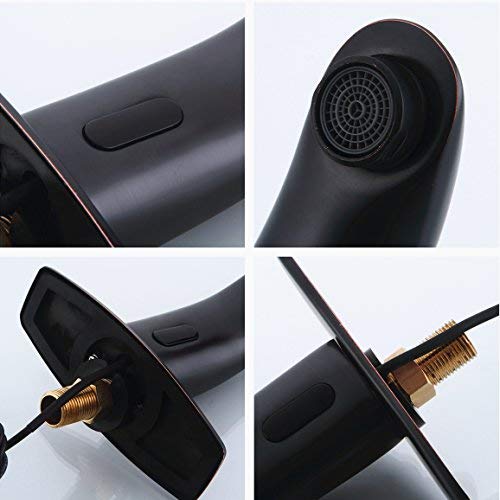

    1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body.

    2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws.

    3. Install the control box to the wall and fix it with screws.

    4. Add the rubber washer and screw supply elbow to the control box.

    5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin.

    6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts.

    7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).

    8. Turn the faucet on for 1 minute to flush any debris.


    Flexible Connecting Hose

    Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
    See above for recommended ways to fit the flexible connecting hose.

    Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.



    Control Box Installation Instructions


    Step 1: Step 2:
    control box
    Step 3: Step 4:

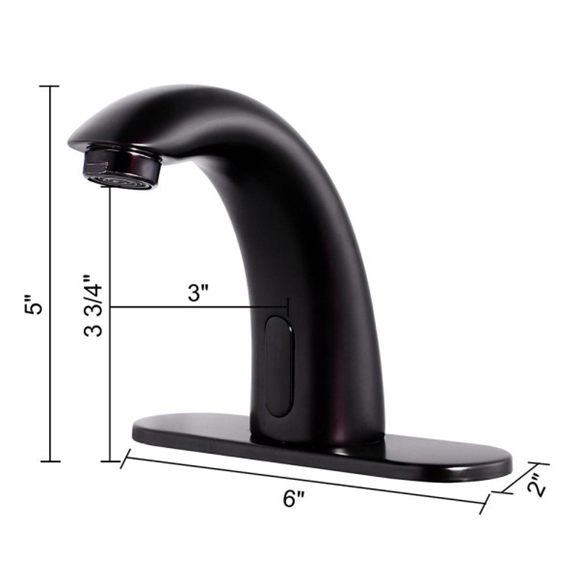

    Size: 5" x 5"

    AC Cable
    Step 5: Step 6:


    Control Box Installation
    1. Remove the four screws from the control box. Remove the control box cover. Faucets for Public Sanitary Facilities, Remove the battery box from the control box, and gently remove the screw from the battery box cover. Install AA batteries in the orientation shown. Note: Use only alkaline AA batteries. Re-install the battery box cover, matching the alignment arrows together. Set the battery box back into the control box, and re-install the control box cover using the previously removed screws.

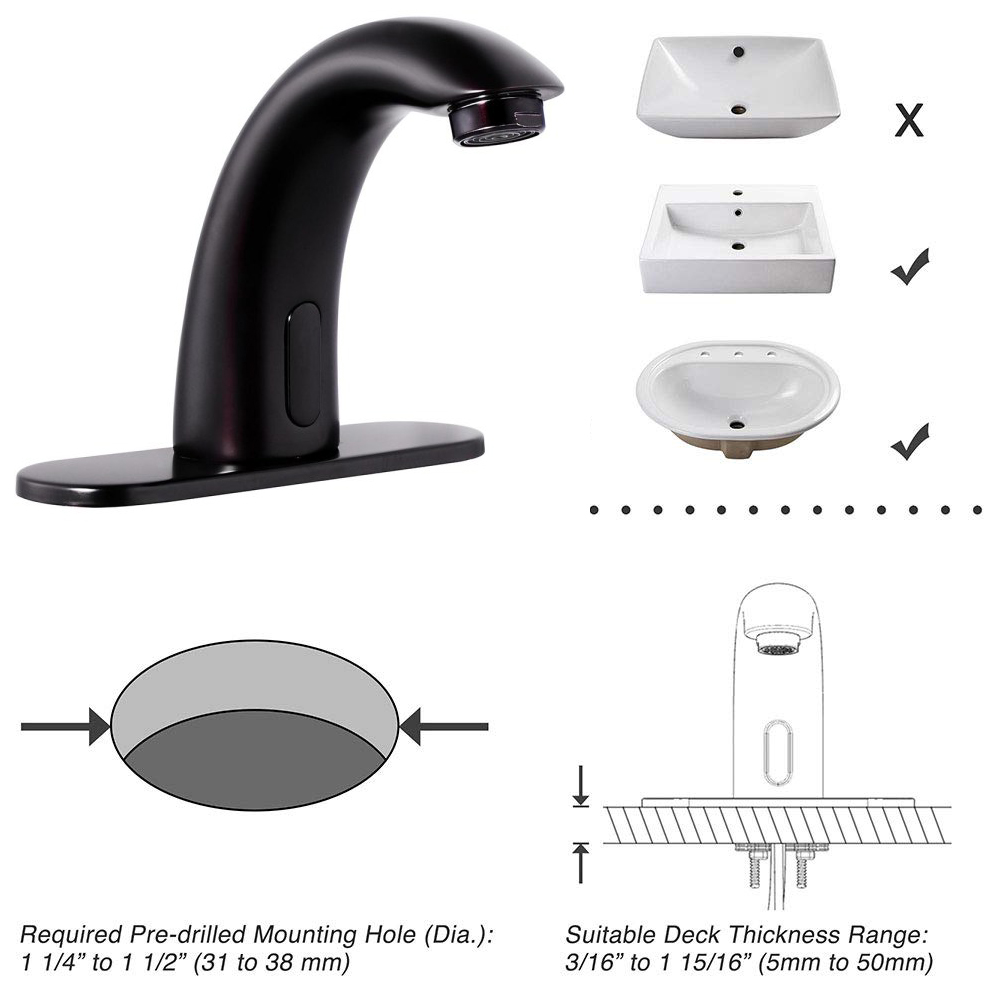

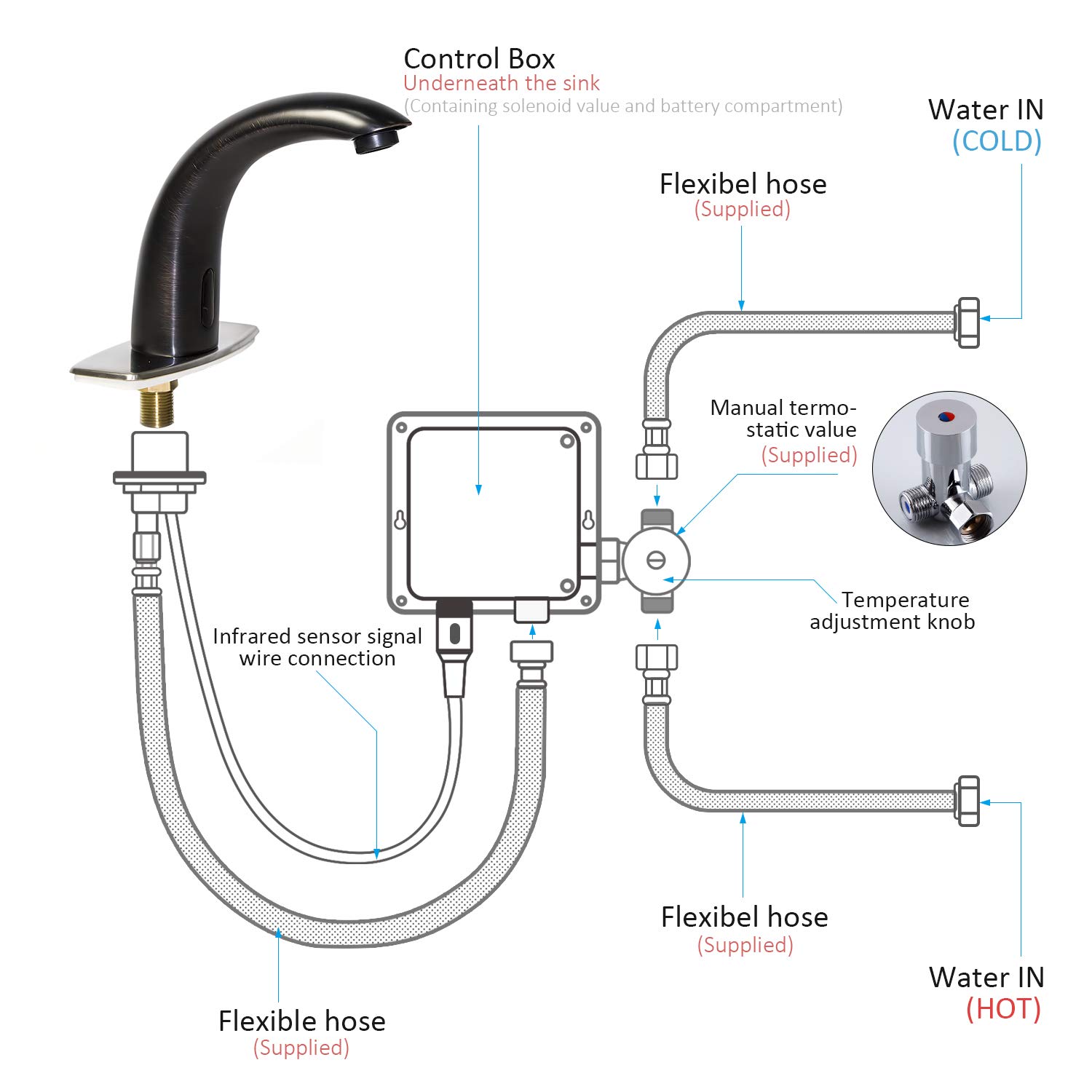

    2. Choose a location under the sink basin to mount the control box, such that the sensor cable, flexible hose, and incoming water supply all connect to the control box. Under the sink basin, drill a hole minimum 3/4” to fit the sensor cable and flexible hose from the spout. Feed the sensor cable and flexible hose through the hole.

    3. Mount the control box to the wall in the orientation shown. Drill four 1/8" (3mm) holes, and push drywall anchors into each hole. Secure the control box to the wall with the drywall screws.

    4. Connect the incoming water supply line to the control box, at the connection marked Inlet.

    5. Thread on the swivel nut to the hose by hand. Tighten with a wrench.

    6. Connect the faucet hose to the control box, at the connection marked Outlet.

    7. Slide sensor cable connector over the sensor cable connector on the control box and tighten by hand.
    Note: Prior to connecting the sensor cable to the control box, open the water supply stop valve and ensure the sink basin is completely clean and clear of objects, or the sensor will not correctly calibrate. Please wait approximately 60 seconds after connecting the sensor cable for sensor calibration to complete and to begin using the faucet.

    Inserting Batteries
    Your infrared spout is supplied with a backup battery pack (batteries not included). In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function.


    Before fitting the power supply box into position on the wall/floor, batteries (not included) will need to be fitted.

    1. Remove Power Supply Box Cover - Remove all four screws in each corner of the power supply box and remove the cover.
    2. Remove Battery Box - Remove the battery case from the power supply box and remove the screw in the center of the case.
    3. Insert Batteries - Insert 4 x AA batteries (not included) into the battery box ensuring they are inserted the correct way.
    4. Replace Battery Box - Replace the battery case cover. Replace and tighten the screw. Insert the battery case back into the power supply box.
    5. Replace Power Supply Cover - Replace the power supply cover and tighten all 4 screws ensuring they are all fully tightened.


    Electrical Connections


    1. Position Power Supply Box - Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible.
    Note: Ensure that the power supply box is fitted the correct way up and that the flexible hose will reach from the underside of the spout to the power supply box.
    Using suitable fixings for the wall type secure the power supply box to the wall.

    2. Plug-In Power Cable - Plug the power cable into the power supply box.

    3. Connect The Sensor Cable - Plug the sensor cable from the spout into the power supply box to activate the infrared senor.


    Water Connections

    Connecting Water Supply - A blended water supply is required to the inlet of the power supply box. Before connecting the water supply to the power supply box flush through the pipework to ensure removal of debris. Once flushed through turn off the mains water supply and close any isolating valves.

    Inlet Connection - The inlet connection on the power supply box is a 1/2” BSP male threaded connection. Connect a 1/2” BSP female connector to the inlet connection ensuring a suitable sealing washer is used to create a watertight connection.

    Outlet Connection - The outlet connection is a standard 1/2” BSP male threaded connection. Connect the flexi hose to the outlet connection, ensuring it is tightened fully.


    Sensor Range

    This machine can automatically adjust the inductive range within 10 seconds of electrification. Don't use an inductor during this period in order for the inductor to automatically adjust to a suitable inductive range.

    Set Water Flow Time-Out

    The machine will shut off the water when washing time exceeds 1.5 minutes foreign matter induces continuously in inductive areal. If follow-up washing is needed, re-induce after removing hands for 2 seconds.

    Notes
    1. Please use the AA type alkaline battery (1.5v for each).
    2. Fix the battery correctly. Should not be mix use the batteries with different brands, the new and old and if use non-alkaline battery, the battery life is short in 1-2 months.
    3. After installation of the battery, the solenoid valve will do its self-testing.
    4. After providing the power, in 10sec, the machine will self adjust the sensor distance, so during this period, do not make it work.
    5. If the sensor distance is short, please move away the barrier for 5-6 mins, the machine will adjust to normal.
    6. If the sensor distance from far to near, and water flows continuously, the machine will self-adjust the distance after 5 mins.





    Sensor Activated Faucet Special Features :

    • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
    • Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
    • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
    • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
    • Faucet can be mount to any sink surface.
    • ADA Compliant.
    • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.

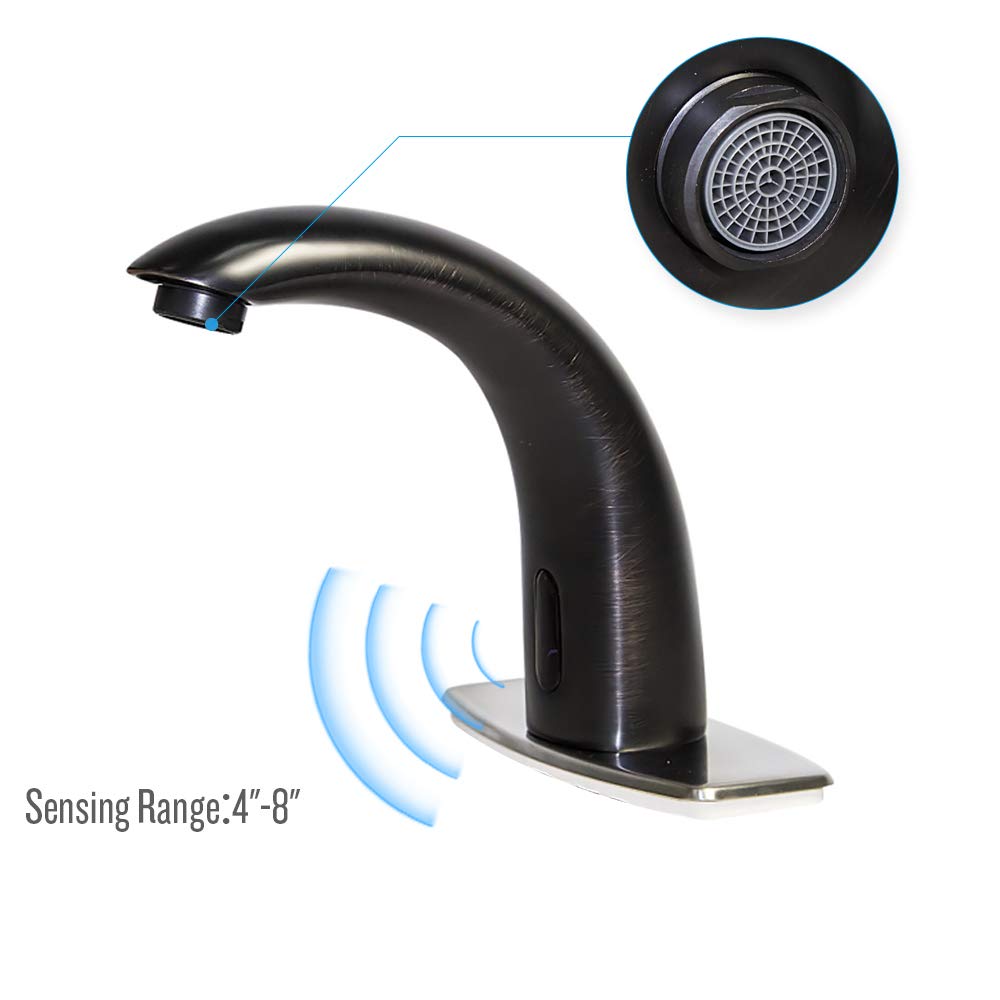

    • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

    Diameter of inlet pipe DN15
    Diameter of outlet pipe DN15
    Water Pressure 0.05Mpa - 0.7Mpa
    Power and Voltage DC.6V
    AC.220V - 50/60Hz
    Power Consumption 0.5MW
    <2W
    Detection Zone Factory set 25cm/10" (based on standard inductive board)
    Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F
    Degree of protection by enclosure 1P56





    Functions:

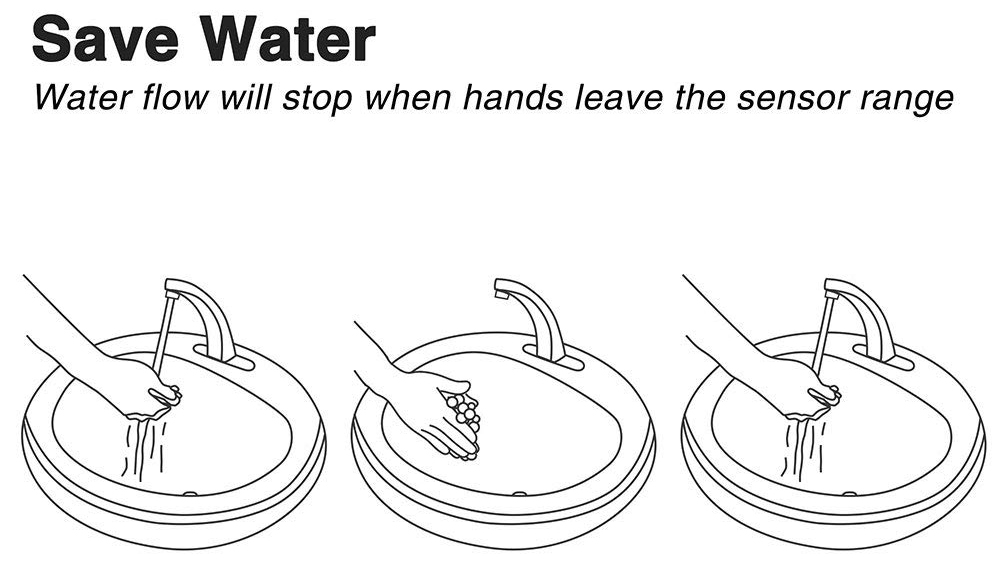

    1. Water saving: water flows out when hands get close and stops immediately.
    2. Hygienic: one open and close to hands-free from any contact, which can efficiently prevent mutual infection of bacteria
    3. Intelligent: with your computer to control its action, the faucet can auto adjust its best detection zone as per color and the shape of the sink
    4. Low power consumption: for DC agitators, 4AA alkaline batteries can be used for 2 years.
    5. convenient to maintain: there is an internal filter to prevent the entry of the solenoid valve of miscellaneous and the filter is easy to clean.
