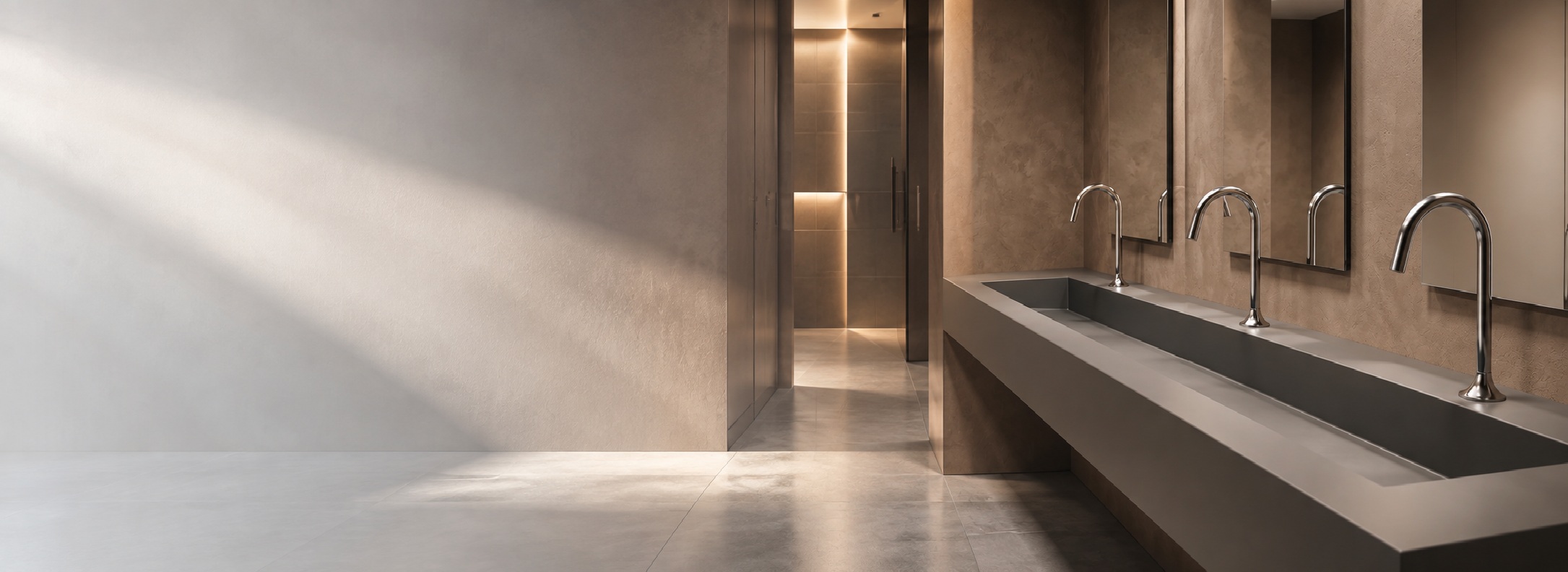

Confirm the Proposed Product Before It Reaches the Site
A bathroom fixture submittal should demonstrate how the proposed product satisfies the project documents. It should identify the exact model, selected configuration, finish, required accessories, concealed components, performance, utilities, rough-in and installation requirements.
Submittal review is a controlled comparison—not a new product-selection exercise and not a transfer of the contractor’s responsibility to verify quantities, dimensions, field conditions, installation or contract requirements. Review comments should clearly identify conformance, deviations, missing information and required action.
Generic catalog pages and collection overviews can support product discovery, but they are not sufficient for exact-model review. The submitted data must match the complete model designation, selected finish and every option shown in the schedule.
Control Check
Reviewer Question
Model Match
Does the marked data sheet show the exact scheduled model?
Option Match
Are mounting, handle, sensor, valve, outlet, power and drain options identified?
Finish Match
Does the finish code belong to this exact model and submitted sample?
Document Match
Do rough-in and installation documents reference the same product?
Revision Match
Are current documents used consistently across the package?
Quantity Match
Do counts reconcile with fixture tags, rooms and phases?

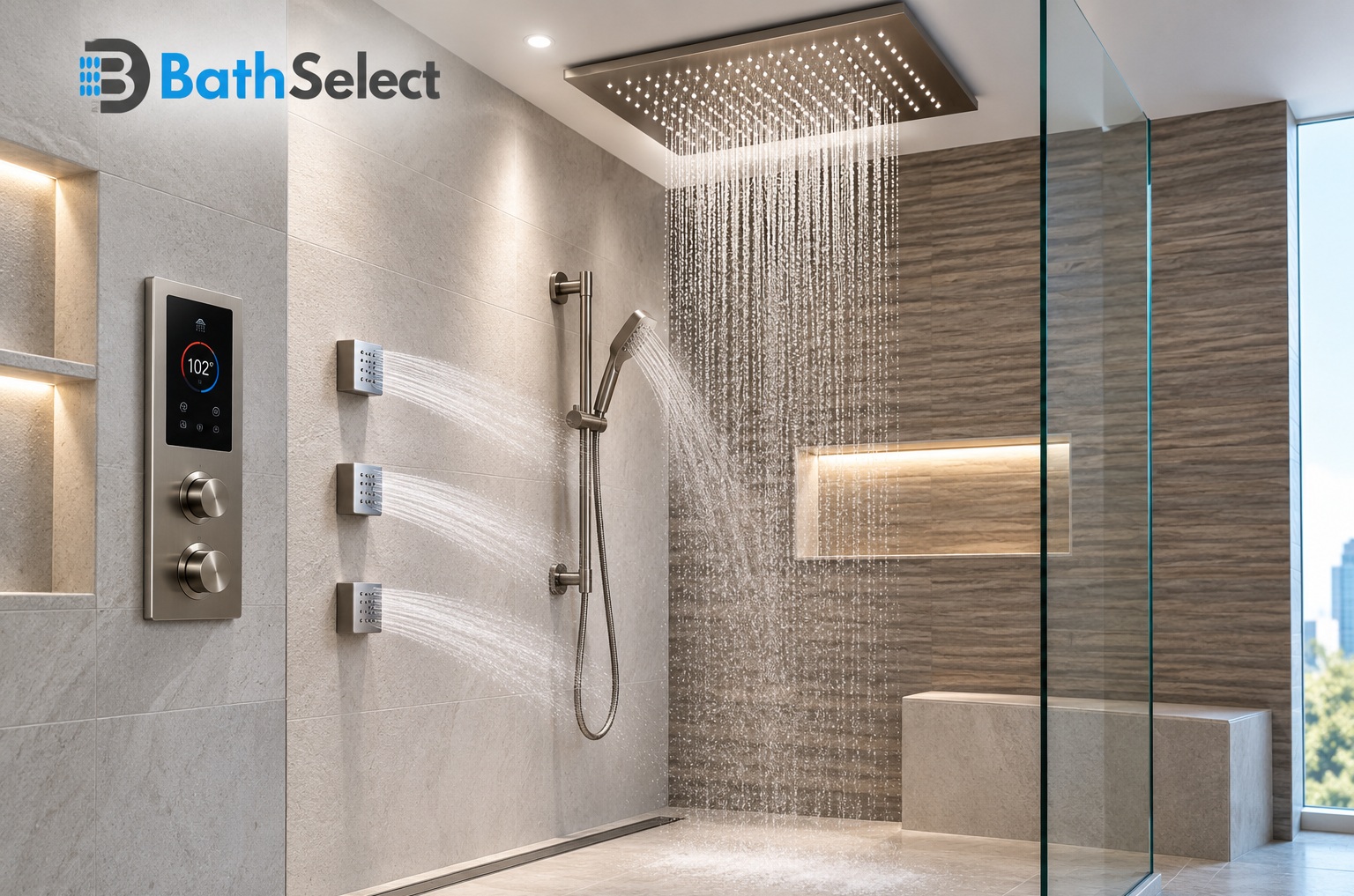

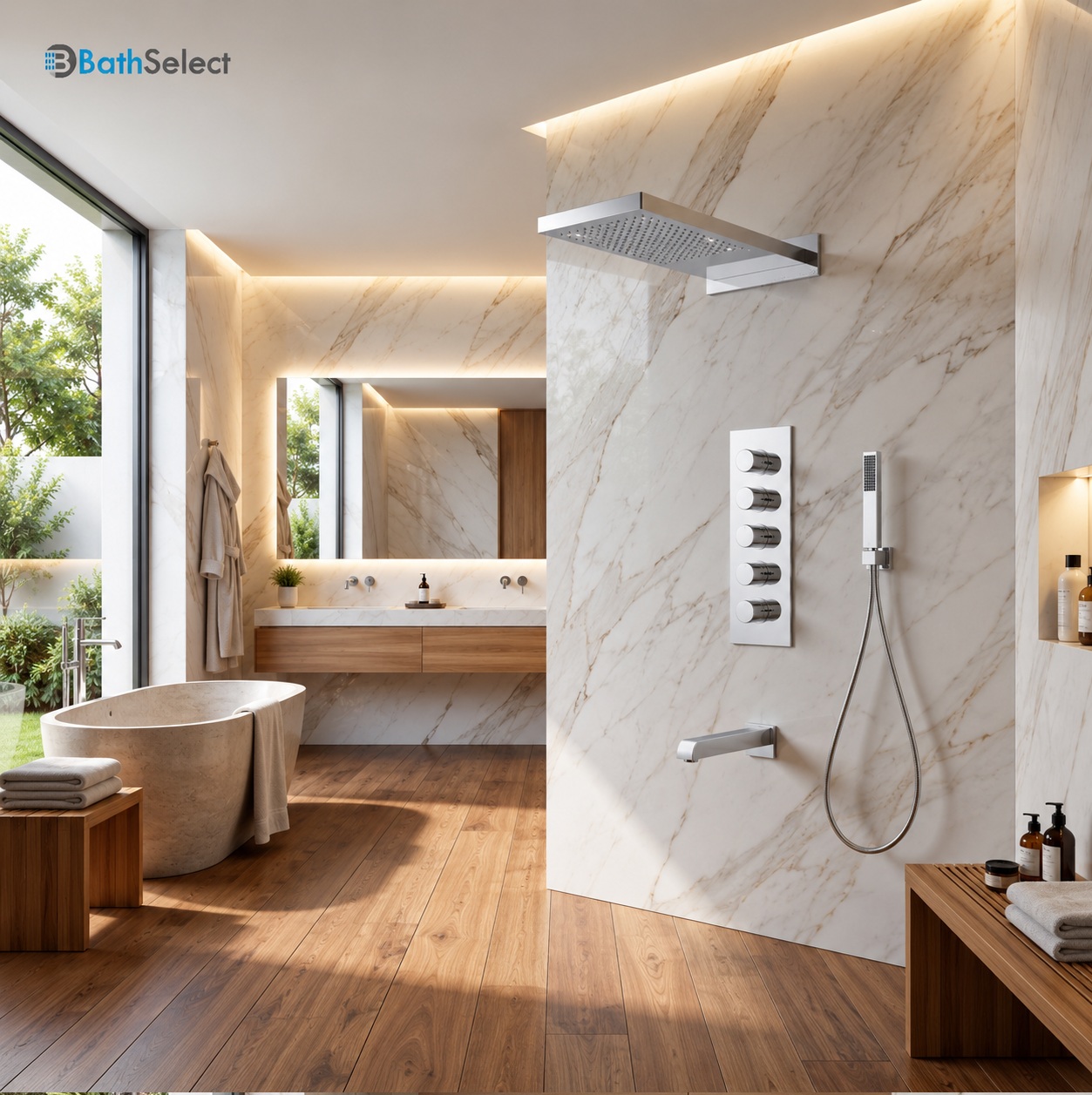

Shower-System Submittals
Confirm Controls, Outlets and Hydraulic Intent
Complete Components
Confirm valve, trim, diverter or digital controller, every outlet, body jets, hand shower, hose, holder, arms, flanges and required rough-in components.
Operating Functions
Mark which outlets operate independently and simultaneously. Verify that control logic matches the intended user experience.
Hydraulic Data
Review rated flow, pressure range, valve capacity and combined demand against the plumbing engineer’s project conditions.
Rough-In
Coordinate valve depth, outlet spacing, connection sizes, finished surfaces, blocking, waterproofing and access before wall or ceiling closure.
Digital Controls
Confirm controller, valve module, power, wiring, communication, mounting and service access as one approved system.
Drainage
Confirm that the project drainage design supports the intended outlet combinations; product data does not replace drainage engineering.
Commercial bathroom fixture submittal review should verify more than product appearance and model numbers; architects and engineers also need to coordinate mounting geometry, sensing method, power requirements, water delivery, accessibility, service access, commissioning, and project documentation. Review teams can use the BathSelect installation and specification guide, coordinate complete assemblies through architectural touchless faucet system planning, and reference the technical resource library for touchless faucet systems when evaluating shop drawings, fixture schedules, cut sheets, BIM data, power requirements, and commissioning information before approval.

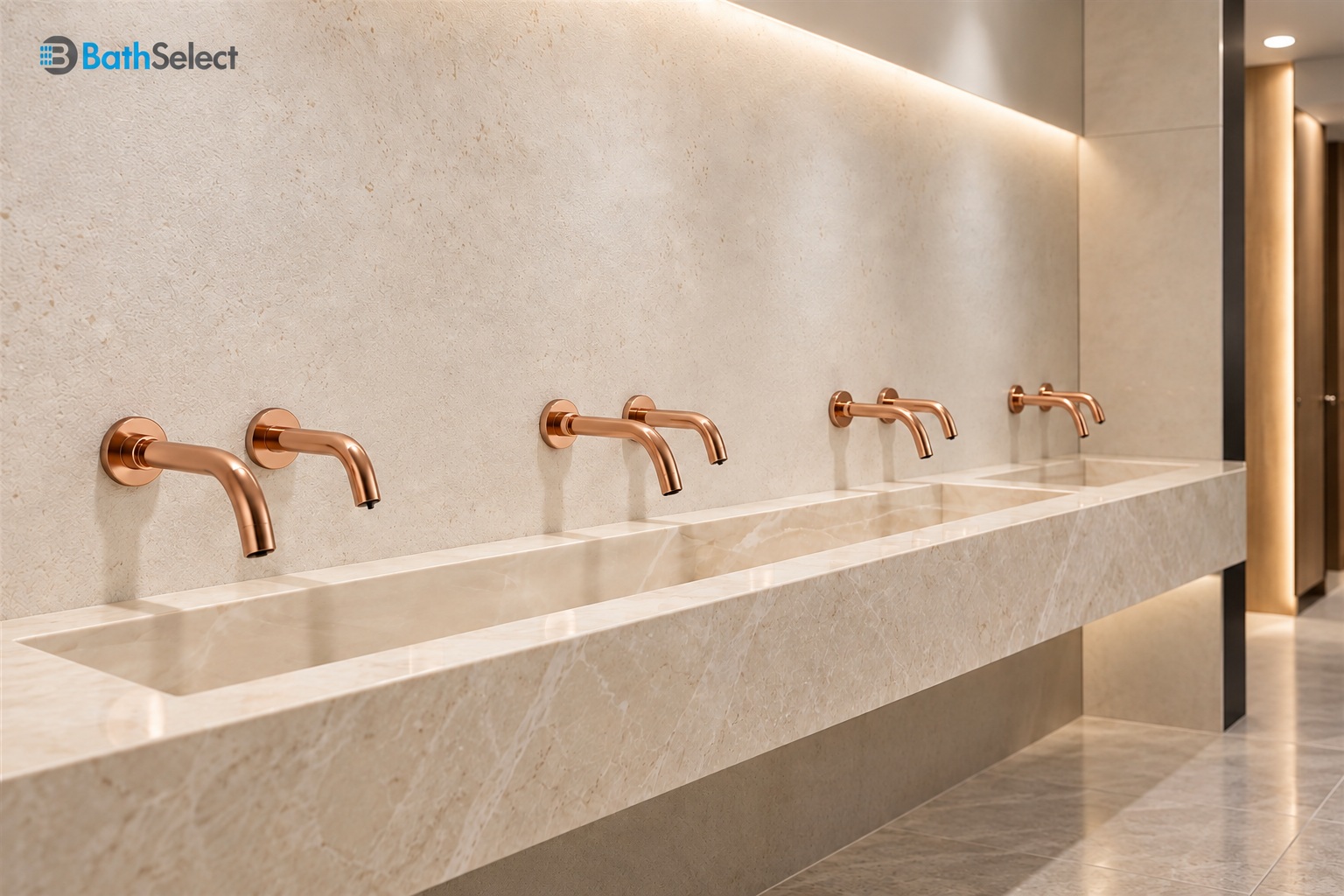

Touchless and Handwashing Submittals
Coordinate Sensing, Power, Sink Geometry and Soap Delivery
Review Field
Required Submittal Information
Coordination Question
Sensor
Detection method, range or setup and shutoff behavior
Is operation appropriate for the sink and surrounding surfaces?
Power
Battery, hardwired, hybrid, transformer, cable and access data
Do electrical documents and millwork provide the required conditions?
Temperature
Tempering strategy, mixing components and adjustment access
Does the proposal match the project water-control design?
Flow
Exact-model flow rating and device
Is it correct for the private or public application and project requirements?
Control Box
Dimensions, mounting, connections, filter and solenoid
Is below-deck space clear and serviceable?
Sink Relationship
Spout reach, height and intended water landing point
Will the faucet operate without avoidable splash or conflict?
Soap System
Soap type, dose, reservoir, tubing, power and refill method
Does the operational plan match facility practices?
A finish name alone is insufficient for visual approval. Review the exact model-specific finish code and a representative physical sample beside the project’s tile, stone, millwork, glass, lighting and adjacent metalwork.
Finish Review
Required Record
Identification
Exact model and finish code
Physical Sample
Submitted sample identifier and date received
Comparison
Relationship to adjacent finishes and materials
Variation
Accepted material or process variation
Approval
Reviewer, date, comments and retained control sample
Care
Approved cleaning methods and prohibited chemicals
Procurement
Availability, quantity, minimums and lead time confirmed
General labels such as “accessible” or “ADA” do not eliminate project review. Confirm the actual product dimensions, controls and operable parts, then coordinate the complete installed condition—including clear floor space, approach, reach, sink and counter geometry, knee and toe clearance, pipe protection and accessory placement.
Certificates and listings must be current, apply to the exact model and configuration, and address the requirement stated in the project documents. Missing evidence should be recorded as an open item, not assumed from a similar model.
Deviation Review
Make Every Difference Visible
Deviation Field
Required Information
Contract Requirement
Exact schedule, specification or drawing criterion
Submitted Condition
Exact proposed product value or configuration
Difference
Plain description of the deviation
Project Impact
Effect on design, performance, rough-in, utilities, accessibility, schedule or cost
Required Coordination
Affected discipline, trade, document and field condition
Disposition
Accepted, rejected, revise and resubmit, or additional information required
Record
Reviewer, date, response and incorporated document revision
For proposed alternatives, use a disciplined field-by-field evaluation rather than an unqualified equivalence statement. The
Specification Engineering resource provides related context.
Review Status
Use Comments That Communicate the Required Action
Status
Meaning
Required Follow-Up
Reviewed
No review comment requiring correction was identified within the reviewer’s scope
Contractor retains responsibility for contract and field requirements
Reviewed as Noted
Work may proceed subject to clearly stated comments
Comments must be incorporated and coordinated
Revise and Resubmit
Material information or conformance remains unresolved
Correct the package and submit a controlled revision
Rejected
The proposal does not satisfy identified project requirements
Submit a compliant product or approved alternative process
Information Required
Review cannot be completed from the submitted evidence
Provide the specifically requested documentation
Terminology and legal effect must follow the project contracts and the design professional’s established procedures; this table is an organizational framework only.
A multiproduct catalog page does not identify the exact submitted model, option or finish. Require selected information to be clearly marked.
Incomplete Assembly
Decorative trim may omit valves, rough-ins, controllers, power supplies, drains or accessories required for operation.
Unstated Substitution
A different model or configuration must be identified and evaluated through the project’s approved substitution process.
Conflicting Documents
Data sheets, rough-ins and installation instructions must reference the same exact model and current revision.
Generic Compliance Claim
Require current evidence applying to the exact model, configuration and project requirement.
Missing Field Coordination
Approval does not remove the need to verify dimensions, rough-ins, utilities, supports, access and actual site conditions.
Frequently Asked Questions
Bathroom Fixture Submittal Questions
What should be reviewed first?
Begin with package identity, exact models, selected options and completeness. Detailed review is unreliable when the proposed product is ambiguous.
Does approval verify field dimensions?
No. Field dimensions, quantities, installation conditions and construction means remain subject to the project contracts and contractor verification.
Can a finish image be approved?
An image may communicate direction but cannot reliably control color, sheen or texture. Use an identified physical sample where finish accuracy matters.
How are substitutions handled?
Use the project’s formal process and compare configuration, dimensions, rough-ins, performance, materials, finish, utilities, compliance, serviceability and cost.
What if information is missing?
Identify the exact missing item and return the package for additional information or controlled resubmission. Do not approve an unverified requirement.
What belongs in closeout?
Retain approved submittals, incorporated deviations, exact-model instructions, settings, finish-care guidance, warranty data, spare-parts records and service contacts.
Review the Exact Product Before It Reaches the Project.
BathSelect supports project teams with product identification, technical documents, finish coordination, system completeness and documented project questions.
Professional responsibility: BathSelect information supports product and project coordination but does not replace the architect’s, engineer’s, contractor’s or owner’s contractual duties. Review status, terminology and legal effect must follow the project documents. Qualified professionals must verify exact-model data, field conditions, compliance, installation and accepted deviations before procurement or construction.
