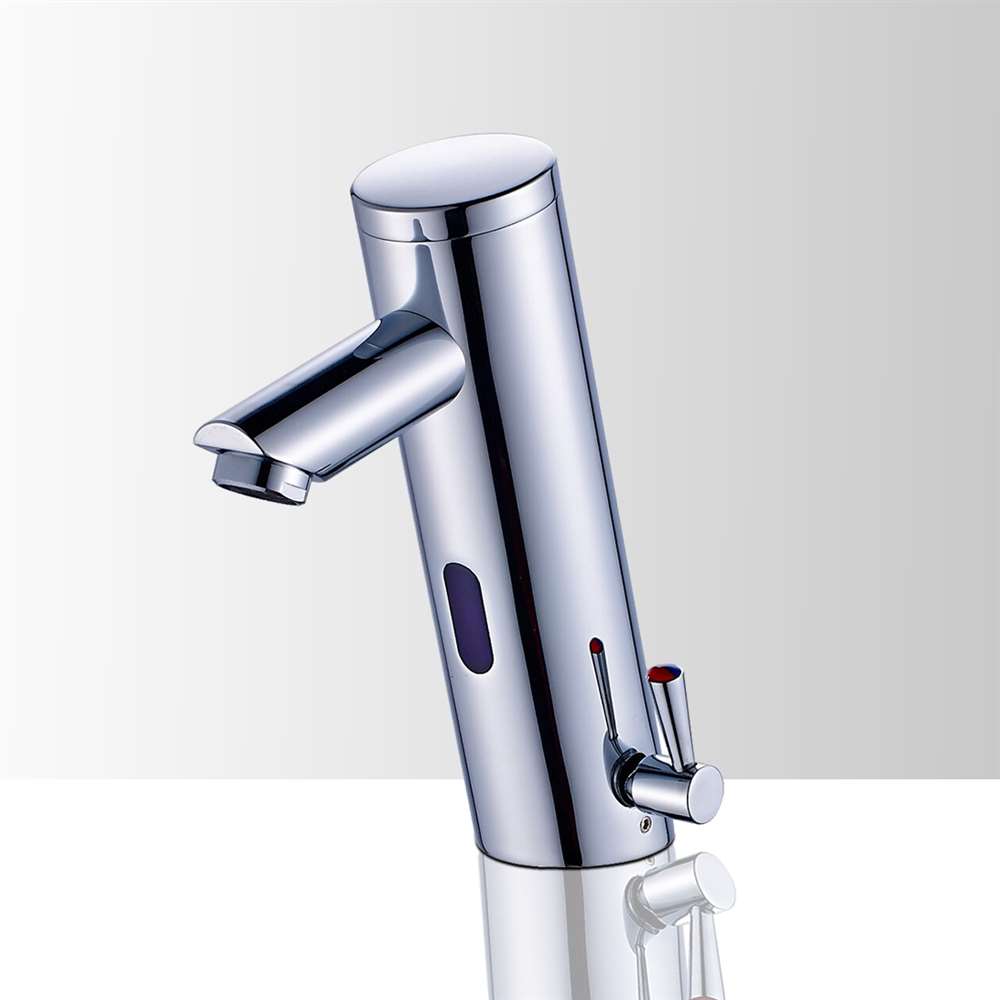

Platinum Commercial Automatic Commercial Sensor Faucet with Temperature Control Mixing Valve Available in Chrome or Oil Rubbed Bronze Finish
Platinum Sensor Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Flow Rate: 1.3 GPM (gallons-per-minute)
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
- Degree of protection by enclosure: 1P56
- Usage: Commercial / Residential
- Overall Height: 7" (measured from counter top to the highest part of the faucet)
- Spout Height: 3-1/2" (measured from counter top to the spout outlet)
- Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
- Mounting Type: Single hole
- Number of Holes Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation with temperature control.
Fits all standard US plumbing.
Uses 4AA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Added feature Temperature Control operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Polished Chrome Finish
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Can be installed in new or retrofit applications
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!
Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.Sensor faucet
Platinum Thermostatic Sensor Tap B505 Solid Brass Construction - ADA Compliant
BathSelect® Manufacturer Warranty Information
Installation Instructions for BathSelect Platinum Thermostatic Temperature Control Automatic Commercial Sensor Faucet Solid Brass Construction
