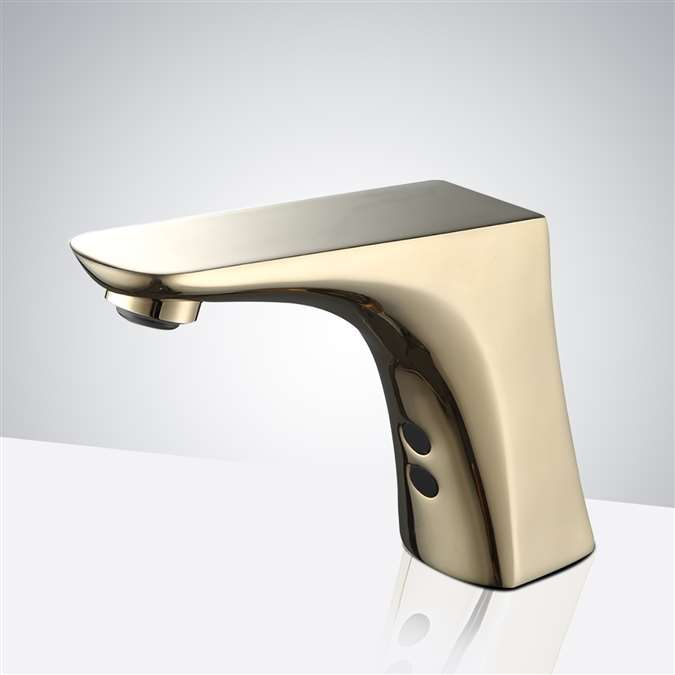

BathSelect Commercial Automatic Infrared Sensor Hands Free Faucet
Product Description
Infrared Commercial Sensor Faucet; Designed for rapid activation, anti-false triggering, efficient water usage, and automatic shut-off safety. Bathroom sensor faucets are anti-erosion, anti-abrasion, and high strength. Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all standard US plumbing.
Easily installed in new or retrofit applications.
Transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Usage: Commercial
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Gold Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control;
check
Options for temperature control sensor faucets
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Bathselect Commercial Automatic Infrared Sensor Hands Free Faucet
Product Description
Infrared sensor operated, touch-free operation
Advanced energy saving design for long lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.8MPa
US standard water supply pipe size: (G1/2")
Ambient temperature range: 0.1 - 45ºC
Sensing distance: 25cm
Time delay: 0.5 seconds
Operation duration: power will automatically cut off after continuous use for 60 seconds
Pop-up drain: Yes
Color: Gold
Usage: Commercial / Residential
Sensor Tap Advantage:
Conserves water
Saves energy during water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA complaint Ideal for use by disabled people
Vandal resistant
Waterproof Components
COMMERCIAL INFRARED SENSOR LINE
Commercial Infrared™
Commercial infrared touchless faucet with solid brass construction,
adjustable sensing, 2.2 GPM flow, electronic solenoid control,
and AC or battery operation.
✥
Sensor Calibration Procedure?
+
Complete sensor commissioning after the sink,
countertop and surrounding accessories are installed.
The digital microprocessor automatically adapts its
detection field, while the sensing range can be
adjusted approximately 2 to 6 inches where required.
◇
Hydraulic Checks During Installation?
+
Flush the supply line before final connection,
confirm the 1/2-inch NPT inlet is secure, inspect
the built-in strainer for debris, and verify stable
water pressure before commissioning the solenoid
valve and infrared control.
◯
Flow Rate Verification?
+
Verify approximately 2.2 GPM through the standard
mesh aerator under normal operating conditions.
If discharge is restricted, inspect the aerator,
built-in filtration, inlet connection and available
dynamic water pressure.
↻
Continuous Water Flow Diagnostics?
+
Clean the infrared sensor window, remove reflective
interference from the sensing zone, verify reliable
power, and inspect the 6-volt latching solenoid for
debris or incomplete seating. Maximum continuous
operation is limited to approximately 60 seconds.
⌁
Sensor Detection Range?
+
The active infrared neck-mounted sensor operates
with an adjustable detection range of approximately
2 to 6 inches. Factory sensing is typically set
around 4 to 5 inches and may be fine-tuned during
commissioning.
⌂
Operating Water Pressure?
+
The product specification lists a working pressure
range of approximately 1 to 100 PSI. Maintain stable
dynamic pressure and keep the inlet strainer clean
to preserve consistent activation and water
delivery.
⚡
Power Supply Options?
+
The infrared control can operate from four AA
alkaline batteries or an AC adapter. The electronic
assembly uses a 6-volt magnet-latching solenoid,
with low-battery indication provided for scheduled
maintenance.
⌕
Routine Maintenance Requirements?
+
Periodically clean the sensor window and mesh
aerator, service the built-in strainer, inspect
battery condition and electrical connections,
and confirm the solenoid closes completely after
the approximately two-second shutoff delay.
‹
›
Gold
♧
2.2 GPM
Standard Aerator
◇
Solid Brass
Vandal Resistant
⌁
Infrared Sensor
2–6 In Range
⚙
6V Solenoid
Latching Control
◇
AC / Battery
Dual Power
Unexpected Downtime Curtailed
