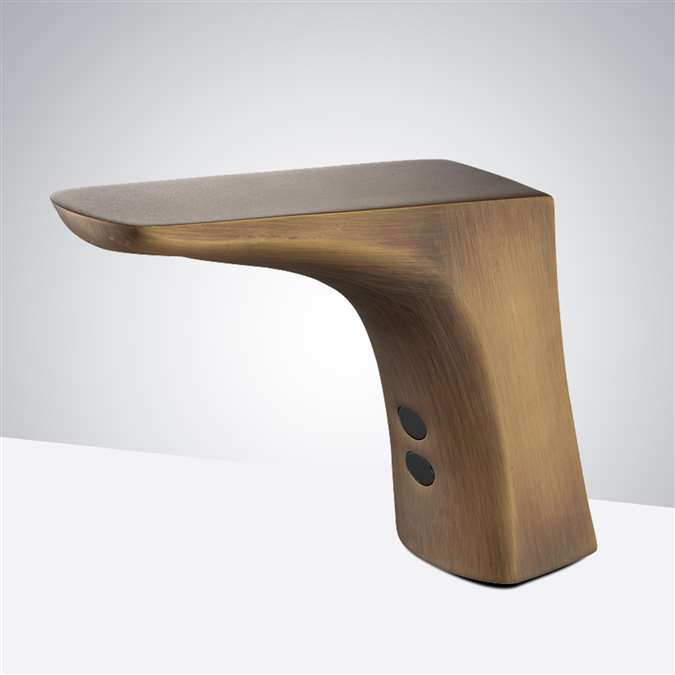

BathSelect Commercial Automatic Infrared Sensor Hands Free Faucet
Product Description
Bathroom sensor faucets are anti-erosion, anti-abrasion, and high strength. Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all standard US plumbing.
Easily installed in new or retrofit applications.
s the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Usage: Commercial
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Antique Bronze Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control;
check
Options for temperature control sensor faucets
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Bathselect Commercial Automatic Infrared Sensor Hands Free Faucet
Product Description
Infrared sensor operated, touch-free operation
Advanced energy saving design for long lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.8MPa
US standard water supply pipe size: (G1/2")
Ambient temperature range: 0.1 - 45ºC
Sensing distance: 25cm
Time delay: 0.5 seconds
Operation duration: power will automatically cut off after continuous use for 60 seconds
Pop-up drain: Yes
Color: Antique Bronze
Usage: Commercial / Residential
Sensor Tap Advantage:
Conserves water
Saves energy during water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA complaint Ideal for use by disabled people
Vandal resistant
Waterproof Components
BATHSELECT SENSOR LINE
BSTHD50B™
Commercial infrared touchless faucet with solid brass
construction, Antique Bronze finish, self-adjusting sensing,
AC/DC power, and 2.2 GPM controlled water delivery.
✥
How Should the Sensor Range Be Commissioned?
+
Complete sensor commissioning after the basin and
surrounding surfaces are installed. The active infrared
system provides an adjustable sensing range of
approximately 2 to 6 inches and can self-adapt to
the color and shape of the lavatory environment.
◇
What Is the Infrared Response Time?
+
The digital infrared control is specified with an
approximately 0.3-second response time. Verify
repeatable activation across the intended sensing
zone and confirm that reflective basin surfaces do
not cause unintended triggering.
◯
What Flow Rate Should Be Verified?
+
The faucet is specified with a standard 2.2 GPM
mesh aerator. If flow decreases, inspect the aerator,
50-mesh particle filtration, built-in strainer and
available dynamic supply pressure before servicing
the electronic valve.
↻
How Does Automatic Shutoff Operate?
+
The valve closes approximately two seconds after
the infrared sensing field clears. An anti-vandal
safety function also limits uninterrupted operation
to approximately 60 seconds if an object remains
continuously within the detection zone.
⌁
What Diagnostic Functions Are Provided?
+
The faucet incorporates a flashing diagnostic
indicator used for power-up status, low-battery
notification and solenoid-function monitoring.
These indicators assist with troubleshooting during
commissioning and scheduled maintenance.
⌂
What Water Pressure Range Is Supported?
+
The extended specifications identify a working
pressure range of approximately 1 to 100 PSI.
Flush supply piping before final connection and
maintain stable dynamic pressure for consistent
sensor-controlled discharge.
⚡
What Power Configurations Are Available?
+
The electronic control can operate from four AA
alkaline batteries or an AC adapter. The solenoid
is specified as a 6-volt magnet-latching design,
supporting low-energy touchless operation in new
or retrofit installations.
⌕
What Routine Maintenance Is Required?
+
Periodically clean the sensor window and aerator,
remove debris from the accessible built-in strainer
and 50-mesh filter, inspect supply fittings and
confirm consistent solenoid opening and complete
automatic closure.
‹
›
Antique Bronze
◇
Solid Brass
Vandal Resistant
⌁
0.3 Sec Sensor
Infrared Response
⚙
AC / DC Power
Flexible Installation
Good Technical Support
