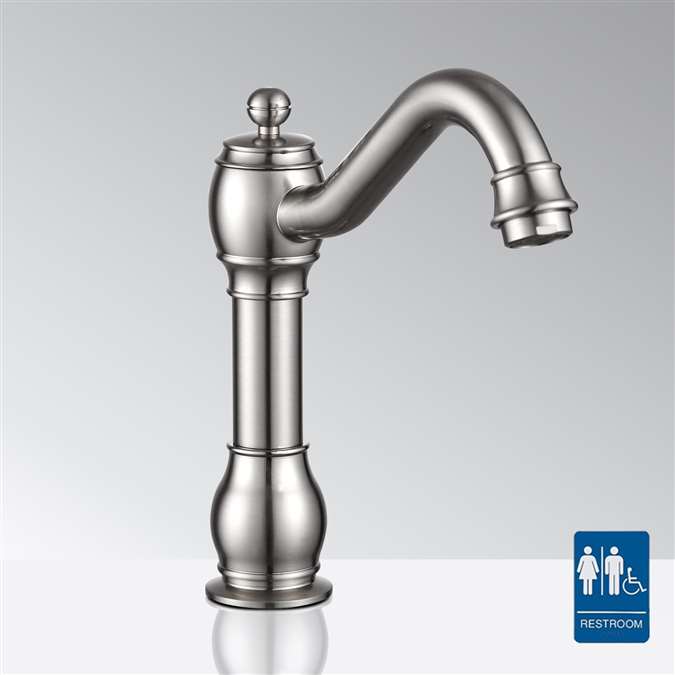

BathSelect Naples Chrome Finish Commercial Motion Sensor Faucet

BathSelect The Queen in Chrome Finish Commercial Motion Sensor Faucet

Alternative Views:


Retail Price: $925.23
Sale Price: $792.26
You save $132.97!

Price with Selected Options: $792.26



Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST6174-CH


Hot & Cold Option:


Qty:
Description Technical Specs Extended Technical Information


BathSelect Naples Chrome Finish Commercial Motion Sensor Faucet - designed for new and retrofit installations

  • Complete motion detection touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Chrome Finish
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Sensor faucet comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Fit for commercial use applications.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Chrome Sensor Faucet; Classic commercial design with polished finish, durable construction, and responsive touchless operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

BathSelect The Queen in Chrome Finish Commercial Motion Sensor Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V AC.220V - 50/60Hz
  • Power Consumption: 0.5MW <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
  • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Chrome Sensor Faucet

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: Chrome Finish

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
THE QUEEN SENSOR LINE

The Queen™
Technical FAQs

Commercial solid-brass touchless faucet with infrared AI sensing, AC/DC power, adjustable detection and vandal-resistant construction.

✥ Sensor Calibration Procedure? +
Commission the faucet after the basin, countertop and surrounding fixtures are fully installed. The micro-computer controlled infrared system can self-adjust its optimum detection zone according to lavatory color and geometry, while the sensing range can also be field adjusted.
◇ Hydraulic Checks During Installation? +
Flush the water supply before final connection, verify DN15 inlet and outlet connections, inspect the built-in strainer and confirm stable dynamic pressure before commissioning the electronic solenoid assembly.
◯ Operating Water Pressure? +
The product documentation lists an operating range of approximately 0.05–0.7 MPa, also specified as approximately 10–125 PSI. Verify stable dynamic pressure at the fixture during final commissioning.
↻ Automatic Shutoff Operation? +
The faucet is factory configured with an approximately 30-second automatic shutoff period that can be adjusted. Verify positive valve closure during commissioning to limit unattended water discharge.
⌁ Sensor Detection Range? +
The sensing distance is adjustable, with the factory hand-detection setting listed at approximately 4–5 inches from the sensor. Final commissioning should account for basin geometry, finish reflectivity and nearby objects.
⌂ Infrared Control Diagnostics? +
A flashing diagnostic indicator provides status information for power-up, low-battery condition and solenoid function. Use the indicator together with the installation instructions when troubleshooting sensor or valve operation.
⚡ Power Supply Options? +
The touchless control supports AC110V and DC6V operation with an AC/DC power option. Battery-powered installations use four AA alkaline batteries and are designed for extended commercial service.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window, inspect the built-in strainer, remove mineral deposits and verify electrical connections and positive solenoid shutoff during scheduled high-traffic restroom maintenance.
BathSelect The Queen Chrome Commercial Motion Sensor Faucet
Chrome
⌁
Infrared AI Adaptive Detection
◇
Solid Brass Vandal Resistant
↻
30 Sec Shutoff Adjustable Control
⚡
AC110V / DC6V Dual Power
⌕
ADA Compliant Commercial Grade
