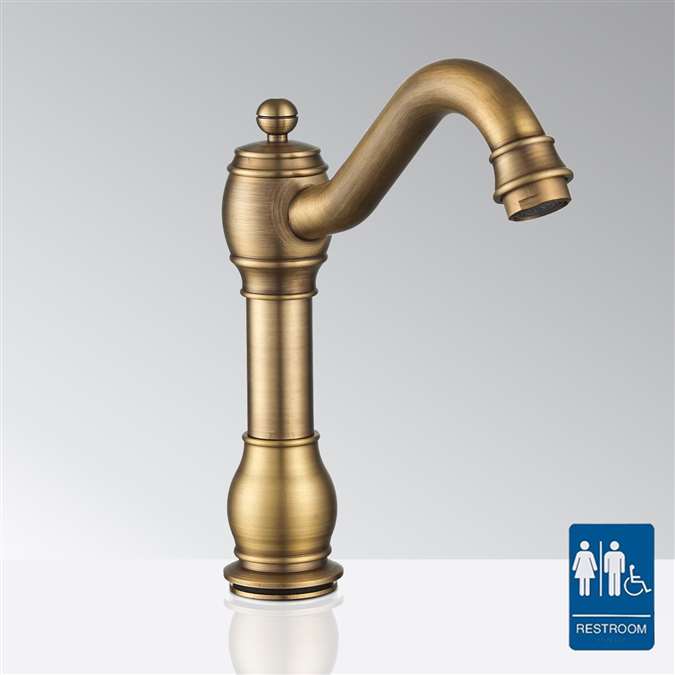

BathSelect The Queen Gold Brass Finish Commercial Motion Sensor Faucet
BathSelect The Queen Gold Brass Finish Commercial Motion Sensor Faucet

Alternative Views:
Retail Price: $1,350.62
Sale Price: $903.56
You save $447.06!

Price with Selected Options: $903.56





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST6178-A


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Matte Black

Oil Rubbed Bronze

Brushed Nickel

BathSelect The Queen Gold Brass Finish Commercial Motion Sensor Faucet - designed for new and retrofit installations

Venice Antique Gold Finish Brass Commercial Automatic Sensor Faucet

  • Complete motion detection touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Gold Brass Finish
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Sensor faucet comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Fit for commercial use applications.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Gold brass construction with durable design, sensor activation, and water efficiency control, vandal-resistant construction, hardwired AC/DC power, and low-flow regulation for continuous public use. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

BathSelect The Queen Antique Finish Brass Commercial Motion Sensor Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V AC.220V - 50/60Hz
  • Power Consumption: 0.5MW <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
  • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Sensor Faucet Antique Gold Finish

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: Antique Gold Finish

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
THE QUEEN COMMERCIAL SENSOR LINE

The Queen™
Technical FAQs

Commercial touchless faucet with solid brass construction, adaptive infrared sensing, AC/DC power, 2.2 GPM flow and vandal-resistant electronic control.

✥ How Does the Sensor Self-Calibration Work? +
The microcomputer-controlled infrared system evaluates the color and geometry of the installed lavatory and automatically establishes an appropriate detection zone. Complete final commissioning after the basin, countertop and surrounding reflective surfaces are fully installed.
◇ What Is the Sensor Detection Range? +
BathSelect lists an approximately 25 cm factory detection zone, while normal field sensing can be adjusted around 4 to 5 inches. Extended technical data also specifies an active infrared sensing range of approximately 2 to 6 inches.
◯ What Is the Rated Flow Performance? +
The standard aerator is rated at approximately 2.2 GPM. During commissioning, verify unrestricted discharge and stable dynamic supply pressure before adjusting sensor settings or servicing the electronic valve.
↻ How Does Automatic Shutoff Protection Work? +
The controller is factory configured with an approximately 30-second automatic shutoff that can be adjusted. Extended protection limits continuous operation to approximately 60 seconds if an object remains within the sensor field.
⌁ What Water Pressure Range Is Supported? +
BathSelect lists approximately 10 to 125 PSI in the primary commercial specifications. Extended technical information also identifies a 1 to 100 PSI working range. Verify actual dynamic pressure at the installed supply during commissioning.
⌂ How Is the Solenoid Protected From Debris? +
A built-in serviceable strainer and 50-mesh particle filter help prevent supply-line debris from entering the solenoid valve. Isolate the supply and clean these components periodically in high-traffic commercial installations.
⚡ Which Power Configurations Are Supported? +
The Queen commercial sensor faucet supports AC110V and DC6V operation, including four-AA battery or AC-adapter configurations. This allows installation in both retrofit and new-construction commercial applications.
⌕ What Should Routine Maintenance Include? +
Clean the infrared sensor window and aerator, inspect the inlet strainer and 50-mesh filtration, verify power condition and confirm reliable solenoid shutoff. Also inspect mounting hardware and supply connections during scheduled preventive maintenance.
BathSelect The Queen Gold Brass Commercial Motion Sensor Faucet
Gold Brass
♧
2.2 GPM Standard Aerator
⌁
2–6 in Active IR Sensing
⚡
AC / DC Flexible Power
◇
Solid Brass Commercial Construction
⚙
60 Sec Anti-Vandal Limit
