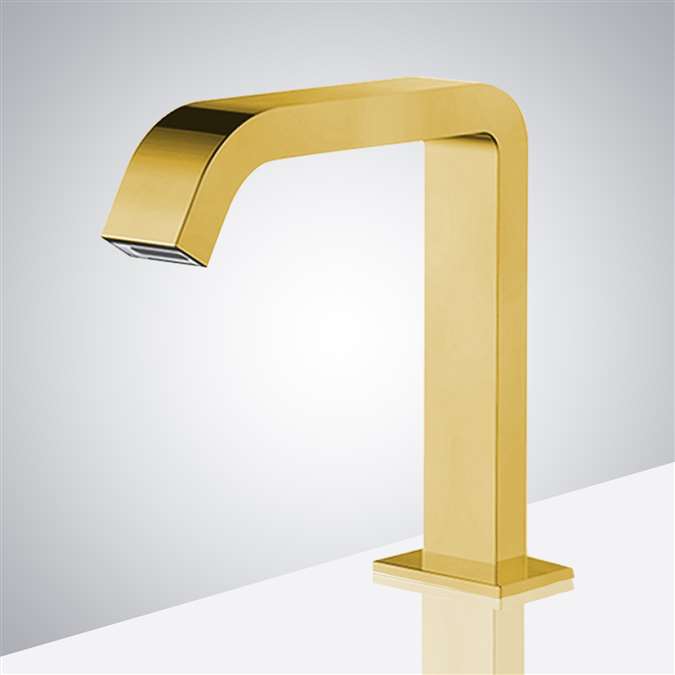

BathSelect Touchless Commercial Automatic Sensor Faucet Gold
hands free bathroom sink faucets sensor faucets for lavatory

Alternative Views:
Retail Price: $876.44
Sale Price: $845.02
You save $31.42!

Price with Selected Options: $845.02





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST509G


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Brushed Nickel

Brushed Gold

Oil Rubbed Bronze

Light Oil Rubbed Bronze

  • Durable solid-brass construction; expertly crafted
  • Motion detection touchless sensor faucet operation
  • Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Gold
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Stainless Steel Hoses Included
  • Can be installed in new or retrofit applications.
  • Suitable Places: family bathrooms, hotels, office buildings, airports, medical institutions, and public restrooms
  • Usage: Commercial
  • Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.


Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is gold, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Sensor faucet

All Parts are included

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain: with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range: while the factory range is set about 4"to 5" from the sensor, it can be adjusted.

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Solo Electronic Sensor Faucet Product Description

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: Gold Tone Finish
  17. For longevity of life time and to stand against the daily wear and tear the gold tone finish used is PVD coatings.

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components

SOLO SENSOR LINE

Solo™
Technical FAQs

Commercial solid-brass touchless faucet with infrared AI sensing, AC/DC power, adjustable detection and 2.2 GPM standard flow.

✥ Sensor Calibration Procedure? +
Complete commissioning after the basin, countertop and surrounding fixtures are installed. The micro-computer controlled infrared system automatically optimizes its sensing field according to lavatory color and geometry while allowing field adjustment where required.
◇ Hydraulic Checks During Installation? +
Flush the supply piping before final connection, verify the 1/2-inch NPT supply connection, inspect inlet filtration and confirm stable dynamic water pressure before commissioning the electronic valve assembly.
◯ Flow Rate Verification? +
The standard mesh aerator is rated at 2.2 GPM. If field discharge becomes restricted, inspect the aerator, 50-mesh filtration and available dynamic water pressure before servicing the electronic valve.
↻ Continuous Flow Diagnostics? +
Clean the infrared sensor window, remove permanent objects from the detection field and inspect the solenoid for debris or incomplete seating. The controller limits continuous operation to approximately 60 seconds.
⌁ Sensor Detection Range? +
The digital plug-and-play sensor system provides an approximately 2–6 inch sensing range. The factory detection setting can also be adjusted to suit basin depth, reflectivity and installation geometry.
⌂ Response & Shutoff Timing? +
The infrared control is specified for approximately 0.3-second response and a 2-second shutoff delay. Confirm repeatable activation and complete valve closure during final commissioning.
⚡ Power Supply Options? +
The faucet supports AC110V and DC6V operation, with four AA alkaline batteries or an AC adapter available as the power source. Verify the selected configuration before commissioning.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and aerator, inspect inlet filtration, remove mineral accumulation and verify battery condition, electrical connections and positive solenoid shutoff.
BathSelect Solo Gold Automatic Commercial Sensor Faucet
Gold
♧
2.2 GPM Commercial Flow
◇
Solid Brass Commercial Construction
⌁
2–6 Inch IR Adjustable Detection
↻
30 Sec Shutoff Adjustable Control
⚡
AC110V / DC6V Dual Power
