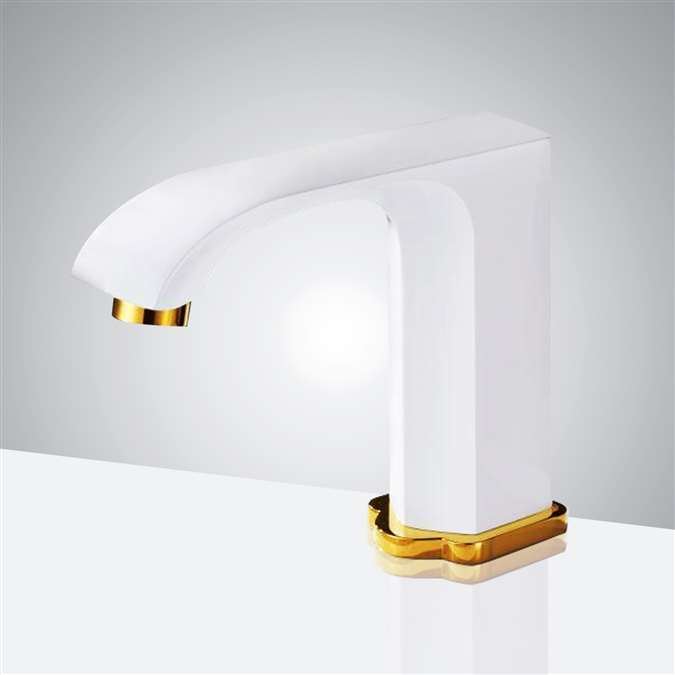

BathSelect Super White and Gold Commercial Automatic Sensor Hands-Free Faucet
Bathselect Super White and Gold Commercial Automatic Sensor Hands-Free Faucet

Alternative Views:
Retail Price: $868.22
Sale Price: $806.68
You save $61.54!

Price with Selected Options: $806.68





Free Shipping
Availability: Special Order
Product Code: BSTHD508W


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Matte Black and Gold

Oil Rubbed Bronze

Brushed Gold

BathSelect Super White and Gold Commercial Automatic Sensor Hands-Free Faucet

Product Description

The latest faucet technology is here to help you reduce your water consumption. The intelligent design means it can sense when there's no leakage and shut off instantly, so fewer flows through the drain! It also has a sensor that allows adjustment in response to color changes or shapes interactions - meaning this will work more efficiently than ever before while still looking great on any sink wall background

Easily installed in new or retrofit applications.

Minimizes the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow. Designed to maintain sensing accuracy even in stainless steel or polished stone basin environments where reflective interference is common.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
    • Diameter of inlet pipe: DN15
    • Diameter of outlet pipe: DN15
    • Water Pressure: 0.05Mpa - 0.7Mpa
    • Power and Voltage: DC.6V AC.220V - 50/60Hz
    • Power Consumption: 0.5MW <2W
    • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
    • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
    • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Product Description

  1. Sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.8MPa
  10. US standard water supply pipe size: (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: Yes
  16. Color: Black
  17. Usage: Commercial / Residential

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
SUPER SENSOR LINE

Super White & Gold™
Technical FAQs

Commercial touchless faucet with vandal-resistant brass construction, adaptive infrared sensing, AC/DC power and 2.2 GPM standard flow.

✥ Sensor Calibration Procedure? +
Commission the sensor after the basin and surrounding fixtures are installed. The micro-computer controller self-adjusts its detection zone according to lavatory color and geometry, while the sensing distance remains field adjustable.
◇ Supply Connection Requirements? +
Flush supply piping before final connection and verify the 1/2-inch NPT male inlet, built-in strainer and stable dynamic water pressure before commissioning the electronic solenoid assembly.
◯ Flow Rate Verification? +
The standard mesh aerator is rated at 2.2 GPM. If field discharge becomes restricted, inspect the aerator, 50-mesh filtration and available dynamic pressure before servicing the electronic valve.
↻ Continuous Flow Protection? +
The electronic controller incorporates anti-vandal protection that limits continuous operation to approximately 60 seconds. Confirm complete solenoid closure during final commissioning.
⌁ Sensor Detection Range? +
The digital active-infrared system provides an approximately 2–6 inch sensing range. The factory sensing position can be adjusted to suit basin geometry, surface reflectivity and the intended hand-approach zone.
⌂ Response & Shutoff Timing? +
The infrared control is specified for approximately 0.3-second response with a 2-second shutoff delay. Verify repeatable activation and positive valve closure during final commissioning.
⚡ Power Supply Options? +
The faucet supports four AA alkaline batteries or an AC adapter. The electronic system operates with a 6-volt magnet-latching solenoid and provides flexible power configuration for commercial installations.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and aerator, service the built-in strainer, inspect electrical connections and verify battery condition and positive solenoid shutoff during scheduled maintenance.
BathSelect Super White and Gold Commercial Automatic Sensor Faucet
White & Gold
♧
2.2 GPM Standard Flow
◇
Solid Brass Vandal Resistant
⌁
2–6 Inch IR Adaptive Detection
⌕
IP56 Protected Electronics
⚡
AC/DC + Battery Flexible Power

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 8 Write a review.

  1 of 1 people found the following review helpful:

5 of 5 Emergency Visits Declined June 29, 2026
Reviewer: Declan Ramsey, Engineer from Winston-Salem, NC
Our healthcare administration building previously experienced unexpected restroom service calls during busy weeks. Since these faucets were commissioned, emergency maintenance visits have become increasingly rare, helping our engineering department maintain uninterrupted daily operations.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

4 of 5 Retained stable calibration May 4, 2026
Reviewer: Olivia Bennett, Plumbing Consultant from Miami, FL
Several decorative white-and-gold sensor faucets we previously maintained developed finish discoloration and unstable infrared responsiveness after prolonged guest usage. Following upgrades completed between 2022 and 2024, the White Gold Faucet demonstrated substantially stronger long-term reliability. The faucet maintained highly accurate activation during continuous hospitality operation, while the white-and-gold finish resisted staining, spotting, and cleaning-related surface degradation far better than earlier luxury fixtures. Water delivery also remained controlled without excessive splash accumulation around designer vessel sinks. A technical advantage became especially noticeable during long-term operation: the sensing module retained stable calibration near mirrored backsplashes and bright ambient lighting conditions where previous decorative faucets frequently produced false triggering.

Was this review helpful to you?

  5 of 5 people found the following review helpful:

5 of 5 Reliable Sensor Control June 28, 2025
Reviewer: J. Patel, Precision MEP from Charlotte, NC
We specified the Super White & Gold Automatic Faucet for a corporate restroom renovation. The sensor activation is quick and accurate, reducing unnecessary water usage. The ceramic white body paired with gold trim is easy to maintain and resists stains from daily cleaning. Installation aligned with standard deck-mount configurations, and the internal brass components ensure long-term durability in high-traffic environments.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 Smooth Touchless Operation March 20, 2025
Reviewer: A. Turner, Precision MEP from Denver, CO
This model’s hands-free activation meets both energy and water-saving requirements for commercial projects. Installation was straightforward, with clearly labeled power and valve connections. The faucet maintains consistent performance even under varied lighting conditions, and the gold-trimmed design provides a clean professional appearance.

Was this review helpful to you?

  8 of 8 people found the following review helpful:

5 of 5 Consistent Water Output December 17, 2024
Reviewer: M. Torres, Horizon Int. from Tampa, FL
Our team installed multiple units of this BathSelect model, and the flow remains stable with no pressure fluctuations. The touchless operation supports hygiene standards, especially in shared commercial restrooms. Maintenance staff reported that the sensor calibration holds steady over time, and the faucet integrates smoothly with existing supply lines.

Was this review helpful to you?

View All Customer Reviews
