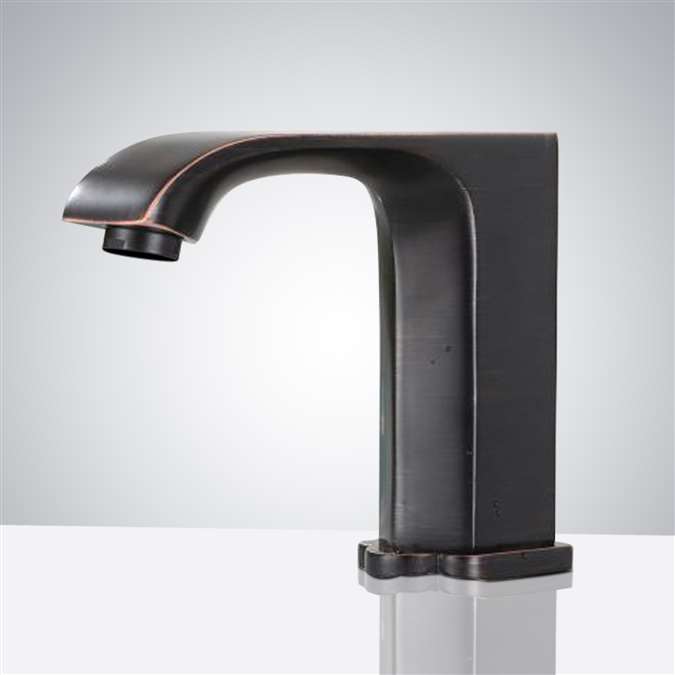

BathSelect Oil Rubbed Bronze Finish Commercial Hands-Free Automatic Motion Sensor Faucet
Bathselect Oil Rubbed Bronze Finish Commercial Hands-Free Automatic Motion Sensor Faucet

Alternative Views:
Retail Price: $763.76
Sale Price: $697.88
You save $65.88!

Price with Selected Options: $697.88





Free Shipping
Availability: Special Order
Product Code: BSTHD508-RB


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Matte Black and Gold

Brushed Gold

White and Gold

BathSelect Oil Rubbed Bronze Finish Commercial Hands-Free Automatic Motion Sensor Faucet

Product Description

Bathroom sensor faucets are high strength, anti-erosion, and abrasion. They minimize the waste of water by automatically shutting off when you don't need it! These intelligent sensors can be installed in new or retrofit applications for a perfect fit without worrying about damaging anything with their built-in intelligence that senses what type of environment is around so they know how much pressure should flow through each hole based on color changes/ shape adjustments.

Easily installed in new or retrofit applications.

Minimizes the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
    • Diameter of inlet pipe: DN15
    • Diameter of outlet pipe: DN15
    • Water Pressure: 0.05Mpa - 0.7Mpa
    • Power and Voltage: DC.6V AC.220V - 50/60Hz
    • Power Consumption: 0.5MW <2W
    • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
    • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
    • Degree of protection by enclosure: 1P56


Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Product Description

  1. Sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.8MPa
  10. US standard water supply pipe size: (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: Yes
  16. Color: Black
  17. Usage: Commercial

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
COMMERCIAL HANDS-FREE SENSOR LINE

BathSelect Sensor™
Technical FAQs

Commercial hands-free faucet with solid brass construction, adaptive infrared sensing, AC/DC power, 2.2 GPM flow and serviceable electronic valve filtration.

✥ How Does the Sensor Self-Calibration Work? +
The integrated microprocessor can self-adjust its optimum infrared detection zone according to the color and geometry of the installed lavatory. Complete final commissioning after the basin and countertop are permanently installed.
◇ What Sensor Range Is Used During Commissioning? +
BathSelect lists an adjustable sensing range with normal factory operation around 4 to 5 inches. Extended technical data also identifies a nominal 25 cm or 10-inch detection zone based on the standard inductive test board.
◯ What Is the Rated Flow Performance? +
The standard aerator is rated at approximately 2.2 GPM. If flow becomes restricted, inspect the outlet aerator, verify inlet pressure and clean the built-in filtration before changing sensor or solenoid settings.
↻ How Does Anti-Vandal Shutoff Protection Work? +
The electronic controller limits continuous operation to approximately 60 seconds. If an object remains within the infrared sensing field, power to the solenoid is interrupted to reduce unattended water use and prolonged activation.
⌁ What Water Pressure Range Is Supported? +
The detailed faucet specification lists approximately 1 to 100 PSI working pressure, while the broader sensor specification lists 0.05 to 0.7 MPa. Verify stable dynamic pressure before final commissioning.
⌂ How Is the Solenoid Protected From Debris? +
A built-in serviceable strainer and 50-mesh particle filtration help prevent supply-line debris from entering the solenoid valve. Isolate the supply and clean these components during scheduled preventive maintenance.
⚡ Which Power Configurations Are Supported? +
The faucet supports four AA alkaline batteries or AC-powered operation. BathSelect lists DC6V and AC220V 50/60Hz in the extended electrical data, providing flexibility for commercial installations.
⌕ What Does the Diagnostic Indicator Monitor? +
The flashing diagnostic indicator provides status information for power-up, low battery condition and solenoid operation. During troubleshooting, inspect the power source, sensor window, filtration and solenoid before recalibrating the detection zone.
BathSelect Oil Rubbed Bronze Commercial Hands-Free Automatic Motion Sensor Faucet
Oil Rubbed Bronze
♧
2.2 GPM Standard Aerator
⌁
4–5 in Factory Sensing
⚡
AC / DC Flexible Power
◇
Solid Brass Vandal Resistant
⚙
IP56 Protected Controls
