BathSelect Touchless Commercial Automatic Sensor Faucet Oil Rubbed Bronze/Matte Black
hands free bathroom sink faucets sensor faucets for lavatory

Alternative Views:
Retail Price: $1,006.08
Sale Price: $934.42
You save $71.66!

Price with Selected Options: $934.42





Free Shipping
Availability: Special Order(Min Qty Required)
Product Code: BST-509B


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Brushed Nickel

BathSelect Hands Free Commercial Automatic Bathroom Sink Faucet Oil Rubbed Bronze

  • Durable solid-brass construction; expertly crafted
  • Motion detection touchless sensor faucet operation
  • Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Oil Rubbed Bronze
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Stainless Steel Hoses Included
  • Can be installed in new or retrofit applications.
  • Suitable Places: family bathrooms, hotels, office buildings, airports, medical institutions, and public restrooms
  • Usage: Commercial
  • Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

All Parts are included

Configured for high-use environments with reliable sensing modules, durable internal components, and consistent shut-off cycles. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain: with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000s cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range: while the factory range is set about 4"to 5" from the sensor, it can be adjusted.

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

Solo Electronic Sensor Faucet Product Description

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: Gold Tone Finish
  17. For longevity of life time and to stand against the daily wear and tear the gold tone finish used is PVD coatings.

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components

COMMERCIAL AUTOMATIC SENSOR LINE

Hands-Free Sensor™
Technical FAQs

Commercial touchless bathroom faucet with solid brass construction, adaptive infrared sensing, AC/DC power, 2.2 GPM flow and serviceable inlet filtration.

✥ How Should the Sensor Range Be Commissioned? +
The active infrared neck-mounted sensor provides an approximately 2 to 6 inch sensing range. BathSelect also specifies automatic sensing adjustment based on lavatory color and geometry, so final commissioning should be completed after the basin and countertop are fully installed.
◇ How Fast Does the Sensor Respond? +
The electronic control is specified with an approximately 0.3-second response time after valid hand detection. The solenoid closes approximately 2 seconds after the user's hands leave the sensing field for controlled hands-free operation.
◯ What Is the Rated Flow Performance? +
The standard aerator is rated at approximately 2.2 GPM. Stable flow depends on adequate dynamic supply pressure and clean filtration, so the aerator and inlet strainer should be inspected whenever discharge becomes restricted.
↻ How Does Continuous-Run Protection Work? +
The faucet includes an adjustable factory-set approximately 30-second automatic shutoff and an extended 60-second maximum run limit. This helps prevent continuous unattended flow if the sensor remains obstructed.
⌁ What Water Pressure Range Is Supported? +
BathSelect lists approximately 10 to 125 PSI in the main commercial specifications, while the extended technical section specifies 1 to 100 PSI working pressure. Verify stable dynamic pressure before final commissioning.
⌂ How Is the Solenoid Protected From Debris? +
A built-in serviceable strainer and approximately 50-mesh particle filtration help prevent supply-line debris from reaching the magnet-latching solenoid. Clean the filtration components during scheduled preventive maintenance.
⚡ Which Power Configurations Are Supported? +
The faucet supports four AA alkaline batteries or AC/DC power. BathSelect lists a 6-volt magnet-latching solenoid and approximately 250,000 battery operating cycles under the published specification.
⌕ What Should Routine Maintenance Include? +
Clean the infrared sensor window and aerator, inspect the built-in strainer, verify battery or AC power condition and confirm reliable solenoid shutoff. Also inspect deck mounting, hoses and supply connections during scheduled commercial service.

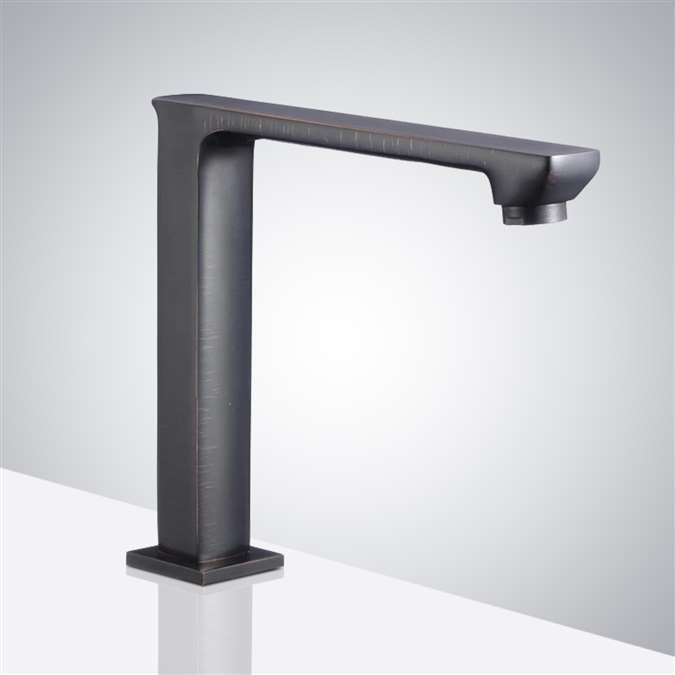

BathSelect Oil Rubbed Bronze Commercial Automatic Hands Free Bathroom Sink Faucet
Oil Rubbed Bronze
♧
2.2 GPM Standard Aerator
⌁
2–6 in Active IR Range
⚡
AC / DC Flexible Power
◇
Solid Brass Commercial Construction
⚙
250K Cycles Battery Expectancy

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 11 Write a review.

  1 of 1 people found the following review helpful:

4 of 5 Maintenance Lightened Friday, May 29, 2026
Reviewer: Harrison Cole, Engineer from Evansville, IN
When our contractor requested assistance during setup, the technical support team quickly identified the correct installation procedure without unnecessary delays. Their expertise prevented repeat site visits, and the faucet has delivered dependable touchless performance.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Consistent Infrared Control Wednesday, April 15, 2026
Reviewer: Derek Whitfield, Systems Consultant from Cincinnati, OH
After multiple civic building restroom upgrades revealed ongoing problems with unstable sensor timing and premature solenoid wear in earlier touchless faucets, we transitioned to the Oil Rubbed across several municipal facilities between 2022 and 2024.The faucet delivered much better operational consistency under continuous daily use. Its infrared sensing system maintained accurate detection without excessive false activations, while the gooseneck spout geometry improved sink clearance and reduced splashback around countertops. The brass valve body and sealed electronic assembly also handled moisture-heavy environments more reliably than previous systems.A technical advantage we noticed during long-term operation was the stability of the sensor response under fluctuating water pressure conditions, which reduced the need for recalibration and helped maintain consistent flow timing between fixtures across multiple buildings.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

4 of 5 Sensor Response Stability Thursday, January 15, 2026
Reviewer: BlueRidge Contracting Group from Los Angeles, CA
As a facility engineer, unreliable activation in low-light restrooms caused excessive water usage. This unit resolves it with a responsive infrared sensor supported by hybrid AC/DC power. Flow rate is optimized for efficiency while maintaining steady output across varying pressure conditions. The internal brass build enhances durability compared to plated sensor faucets.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 Bronze Black Control Thursday, July 24, 2025
Reviewer: Nina Foster from Seattle, WA
BathSelect Touchless Commercial Automatic Sensor Faucet Oil Rubbed Bronze/Matte Black fit well into a hospitality restroom refresh because the project needed a touchless fixture that looked deliberate and performed consistently. The oil rubbed bronze finish gives the installation a more premium presence, and the sensor response feels quick and controlled at the sink. It supports a more reliable hands-free wash station without making the space feel overly technical. It brings a cleaner user experience with less daily intervention from staff. Having warranty support in place made the long-term value easier to approve.

Was this review helpful to you?

  4 of 4 people found the following review helpful:

5 of 5 Dark Control Finish Saturday, July 12, 2025
Reviewer: Andrew Cox from Fort Worth, Texas
We deployed this unit in a high-traffic environment and monitored its behavior closely. The BathSelect Bronze Black Control (Model BST-509B) delivered stable results.

As a commercial contractor, installation and maintenance efficiency were key priorities. The internal layout allows clean connections and easy servicing access. The matte black anti-fingerprint coating enhances usability while maintaining consistent water delivery and controlled flow shutdown.

Their technical team assisted with calibration and ensured proper commissioning. Overall, the unit meets commercial expectations for reliability, hygiene, and lifecycle performance.

Was this review helpful to you?
