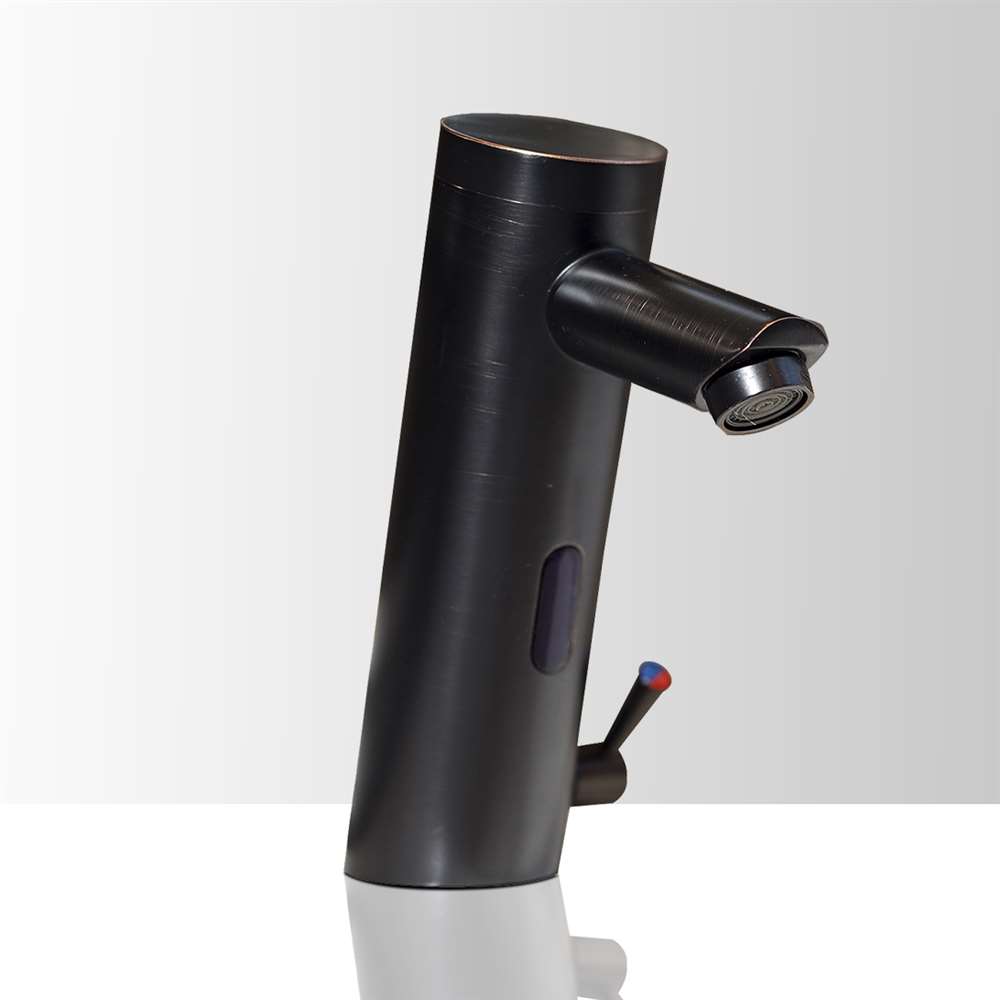

Platinum Commercial Automatic Sensor Faucet with Mixing Valve available in Oil Rubbed Bronze Faucet Finish
|
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Oil Rubbed Bronze Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- ADA Compliant
- Can be installed in new or retrofit applications.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
|
|

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory!
Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.
Sensor faucet
meets ADA regulations
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.
Platinum Sensor Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Flow Rate: 1.3 GPM (gallons-per-minute)
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 Ž / 33.8 -113 ‹
- Degree of protection by enclosure: 1P56
- Overall Height: 7" (measured from the countertop to the highest part of the faucet)
- Spout Height: 3-1/2" (measured from countertop to the spout outlet)
- Spout Reach: 4" (measured from the center of the faucet base to the center of the spout outlet)
- Mounting Type: Single hole
- Number of Holes Required for Installation: 1
- Faucet Centers (Distance Between Handle Installation Holes): Single Hole
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Maximum Deck Thickness: 1-5/8"
- Infrared sensor operation with temperature control.
BathSelect® Manufacturer Warranty Information
BathSelect Platinum Thermostatic Commercial Automatic Motion Sensor Faucet Installation Instructions
Commercial Automatic Faucet with Integral Water Mixing Valve Oil Rubbed Bronze Finish
Platinum Sensor Faucet Product Description
The Platinum Sensor Faucet an electronically controlled faucets that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Bathroom sensor faucets are anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.This faucet can we used for commercial use
Sensor Faucet water-saving; hygienic; automatically opens and closes
Touchless - no touch, avoid bacteria, contamination, cross infection!!
A must in, restrooms, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications: Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2Âh NPT Male
- Water Temperature Control;
- check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Senso
- Microprocessor: Digital, Pug And Play Sensing Range: 2Âh to 6Âh
- Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standar
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Platinum Thermostatic Sensor Tap B505 Product Description
- The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
- The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
- Installation is a child's game, almost like a manual faucet
- Easy servicing
- Version with mixer to adjust the temperature also available
- 6V battery or electrical connection version available
- Solenoid valve inside the product
- Operates with low and high pressures (0.5 to 7Bar)
- Range adjustment
- Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
- The Oil Rubbed Bronze finish will not fade, tarnish or corrode for the lifetime of the faucet.
|
|
|
|
|
|
|
