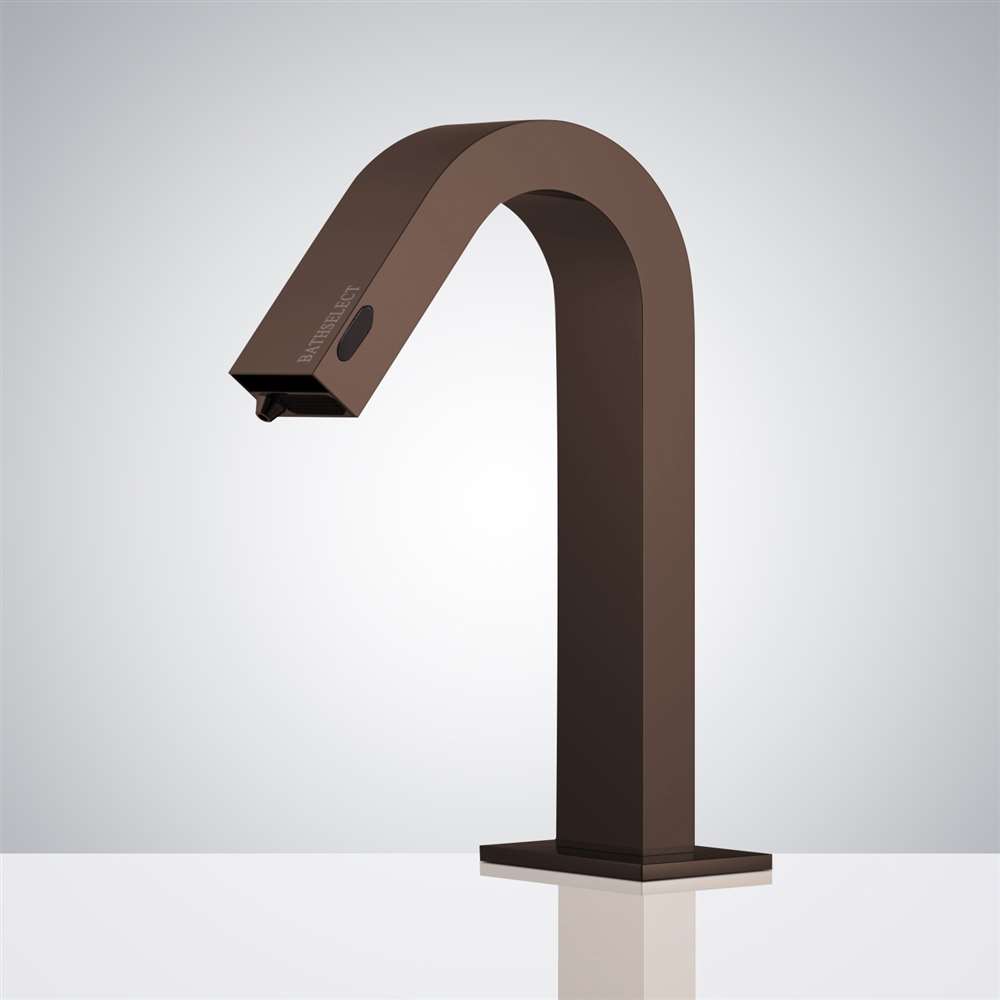

BathSelect Dual Function Automatic Deck Mount Light Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser
Sensor faucet and soap dispenser complete motion detection operation. Sensitive Sensor with Infrared AI Smart-Chip
Solid Brass Material, Long Life Durable Body, Light Oil Rubbed Bronze Finish
Installation made easy with simplified instructions
Water-resistant solenoid enclosure
Advanced energy-saving design for long-lasting battery life
Comes complete with Hoses & Accessories
Time Delay: 0.5 seconds
Usage: Commercial
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all US standard plumbing.
Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup) Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Comes Complete for easy installation.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of a lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meanings of the codes are described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
Power Consumption:
0.5MW, <2W
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
BathSelect Dual Function Automatic Deck Mount Light Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser.
BathSelectDual Function Automatic Deck Mount Light Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser
This is a water and soap dispenser deck-mounted faucet. The faucet has been designed to avoid soap dripping on the floor and for the users to spend less time in the restroom. The faucet body is made from light oil rubbed bronze brass. The faucet has a sensor on the right side of the spout to activate the soap and a sensor just above the water outlet to activate the flow of water. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no-touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Light Oil Rubbed Bronze Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Temperature Control; check Options for temperature control sensor faucets
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 SecondsAnti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquires!
Featured
categories
DUAL FUNCTION SENSOR LINE
Dual Function™
Commercial dual-function touchless faucet and soap dispenser
with solid brass construction, independent infrared sensing,
AC/DC power and serviceable electronic controls.
✥
How Are the Water and Soap Sensors Coordinated?
+
The deck-mounted fixture incorporates separate infrared
activation zones for soap dispensing and water delivery.
The soap sensor is positioned on the side of the spout,
while the water sensor is located above the outlet so
each function can respond independently.
◇
How Should the Sensor Range Be Commissioned?
+
BathSelect specifies a factory detection distance of
approximately 25 cm, with normal field sensing adjustable
around 4 to 5 inches. Final calibration should be completed
after the basin and countertop are installed to prevent
false activation from reflective surfaces.
◯
What Is the Rated Flow Performance?
+
The faucet uses a standard approximately 2.2 GPM aerator.
Stable inlet pressure, clean filtration and an unrestricted
outlet should be verified during commissioning to maintain
consistent commercial flow performance.
↻
How Fast Does the Electronic Valve Respond?
+
The active infrared controller is specified with an
approximately 0.3-second response time. Water shuts off
approximately 2 seconds after the user's hands leave the
detection field, while continuous operation is limited to
approximately 60 seconds.
⌁
What Water Pressure Range Is Supported?
+
BathSelect lists approximately 10 to 125 PSI in the main
commercial specification and 1 to 100 PSI in the extended
sensor data. Flush the supply before connection and confirm
stable dynamic pressure before commissioning the valve.
⌂
How Is the Solenoid Protected From Debris?
+
A built-in serviceable strainer and 50-mesh filtration help
prevent supply-line debris from reaching the solenoid valve.
During maintenance, isolate the supply, clean the filtration
components and confirm unrestricted water flow before restart.
⚡
Which Power Configurations Are Supported?
+
The dual-function system supports four AA alkaline batteries
or an AC power adapter, allowing battery-backed or hardwired
commercial installation. The electronic control operates on
a low-voltage DC supply through the specified power system.
⌕
What Should Routine Maintenance Include?
+
Clean both infrared sensing areas, inspect the aerator and
inlet filtration, verify battery or AC power condition and
confirm reliable solenoid shutoff. The soap outlet and pump
should also be inspected for consistent dispensing and
residue buildup.
‹
›
Light Oil Rubbed Bronze
⌁
Dual Sensors
Water + Soap
♧
2.2 GPM
Standard Aerator
◇
Solid Brass
Commercial Construction
⚙
IP56
Protected Controls
