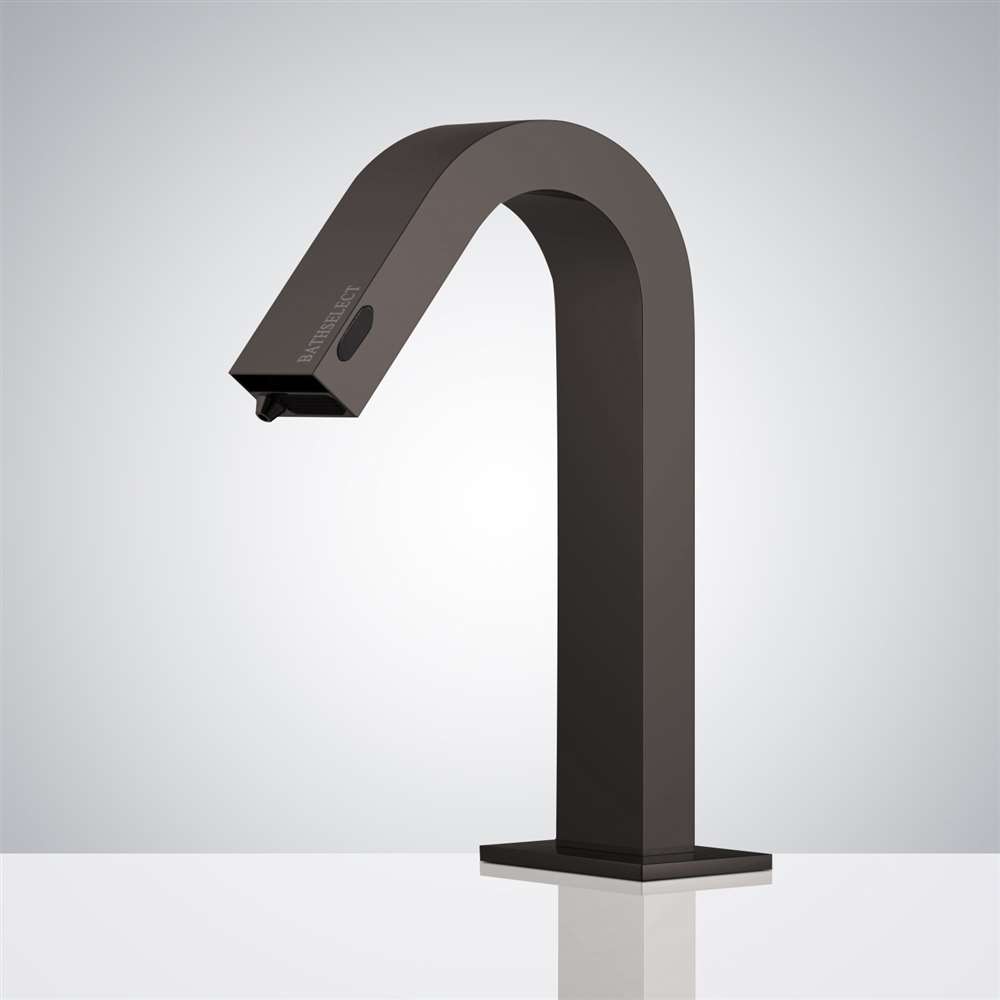

BathSelect Dual Function Automatic Deck Mount Dark Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser
- Sensor faucet and soap dispenser complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Solid Brass Material, Long Life Durable Body, Dark Oil Rubbed Bronze Finish
- Installation made easy with simplified instructions
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Comes complete with Hoses & Accessories
- Time Delay: 0.5 seconds
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, hospitals. Fits all US standard plumbing.
Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
|
|
Comes Complete for easy installation.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of a lavatory
- Flashing dark indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
-
Power Consumption:
0.5MW, <2W
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
BathSelectDual Function Automatic Deck Mount Dark Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser
|
This is a water and soap dispenser deck-mounted faucet. The faucet has been designed to avoid soap dripping on the floor and for the users to spend less time in the restroom. The faucet body is made from dark oil rubbed bronze brass. The faucet has a sensor on the right side of the spout to activate the soap and a sensor just above the water outlet to activate the flow of water. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow
|
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no-touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Dark Oil Rubbed Bronze Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Temperature Control; check Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
BathSelect Dual Function Automatic Deck Mount Dark Oil Rubbed Bronze Sensor Water Faucet and Soap Dispenser
- Water efficient,
- Hygienic,
- No-touch activation,
- Easy installation Durable,
- Solid DR-brass construction,
- Built-in filter,
- ADA compliant,
- Vandal resistant,
- Waterproof components,
- Complies with Food Premises Standard
Faucet Specification
-
Body: Solid brass with Dark Oil Rubbed Bronze
- Power: i>DC AA Alkaline Battery*4, ii>AC/DC alternately
- Working pressure: 0.5~7Bar
- Water supply pipe size: DN15 (G1/2")
- Ambient Tem. Range: 0.1~ 55 Celsius
- Sensing distance: adjustable 25cm (default 25cm)
- Sensing range setup: Digital
- Response time: 0.3 sec (default)
- Off Delay time: 1 sec (default)
- Pop-up drain: yes
- Fresh Battery Life Cycle: 500,000 on/off
- Low Battery Indicator: Red Led flash
- Weakness of Battery: Red Led on,
- Usage: Commercial
|
|
|
|
|
|
|
