How does the dual-sensor architecture reduce water and soap consumption in commercial facilities?

Independent infrared sensors activate soap dispensing and water flow only when each function is required, preventing unnecessary operation while improving handwashing efficiency and reducing overall utility consumption.

How does the AI Smart-Chip maintain reliable detection in varying restroom environments?

The adaptive controller continuously evaluates reflected infrared signals and automatically adjusts sensor processing to maintain stable activation despite changing lighting conditions, basin finishes, or user positioning.

Why is the corrosion-resistant brass body preferred for integrated electronic fixtures?

The solid brass construction provides excellent structural rigidity, resists corrosion in humid restroom environments, and supports the electronic faucet and soap dispensing assemblies throughout extended commercial service.

How does the electronically controlled solenoid improve dispensing consistency?

The precision solenoid valve delivers repeatable water activation while coordinating with the electronic controller to ensure rapid response, reliable shutoff, and stable hydraulic performance.

Why should both dispensing systems be tested independently after installation?

Separate functional testing verifies proper infrared detection, soap metering accuracy, stable water delivery, and confirms that neither automatic system interferes with the performance of the other.

What routine maintenance helps preserve automatic system reliability?

Regular cleaning of infrared sensing windows, inspection of soap tubing, flushing inlet filters, checking transformer or battery condition, and verifying valve response help maintain dependable commercial operation.

Why should automatic shutoff cycles be validated during commissioning?

Testing confirms proper electronic timing, prevents continuous water flow, verifies sensor responsiveness, and ensures the programmed water-saving sequence operates consistently under repeated use.

Which commissioning procedures verify complete BS10012-G dual-function automatic faucet performance?

Commissioning should verify secure deck mounting, independent soap and faucet sensor calibration, AI Smart-Chip functionality, leak-free 1/2-inch NPT plumbing, AC/DC power operation, 2.2 GPM outlet performance, inlet filter condition, automatic shutoff timing, and repeatable operation through multiple commissioning cycles.

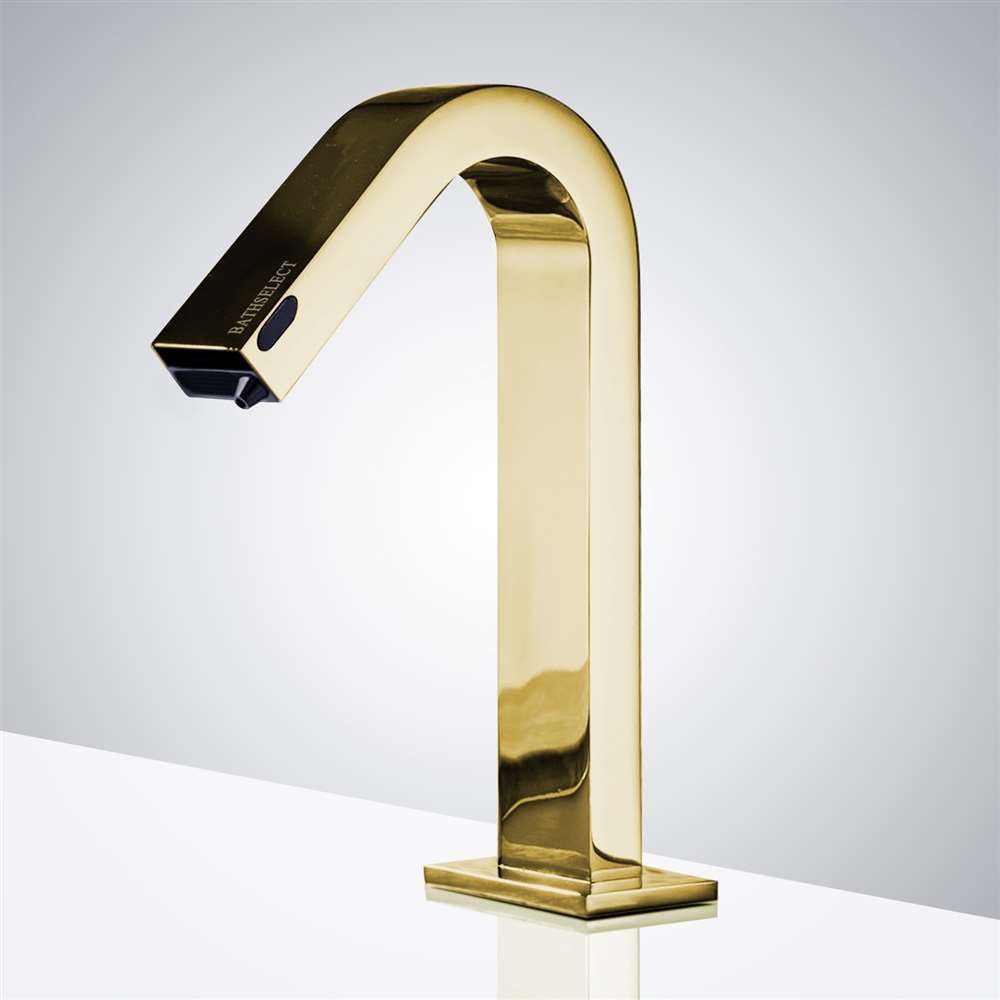

BathSelect Dual Function Automatic Deck Mount Gold Sensor Water Faucet and Soap Dispenser

Alternative Views:

Retail Price: $1,409.88

Sale Price: $1,253.73

You save $156.15!

Price with Selected Options: $1,253.73

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS10012-G

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Matte Black

Oil Rubbed Bronze

Rose Gold

Brushed Nickel

BathSelect Dual Function Automatic Deck Mount Gold Sensor Water Faucet and Soap Dispenser

Plato Automatic Commercial Sensor Faucet D514 (Available in Oil Rubbed Bronze Finish)

Sensor faucet and soap dispenser complete motion detection operation.
Sensitive Sensor with Infrared AI Smart-Chip
Solid Brass Material, Long Life Durable Body, Gold Finish
Installation made easy with simplified instructions
Water-resistant solenoid enclosure
Advanced energy-saving design for long-lasting battery life
Comes complete with Hoses & Accessories
Time Delay: 0.5 seconds
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, hospitals. Fits all US standard plumbing.

Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Comes Complete for easy installation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of a lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

Diameter of inlet pipe	DN15
Diameter of outlet pipe	DN15
Water Pressure	0.05Mpa - 0.7Mpa
Power and Voltage	DC.6V
Power and Voltage	AC.220V - 50/60Hz
Power Consumption	0.5MW
Power Consumption	<2W
Detection Zone	Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature	1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure	1P56

Sensor Faucets Simple Installation Instructions FAQ-Sensor Faucet

BathSelectDual Function Automatic Deck Mount Gold Sensor Water Faucet and Soap Dispenser

This is a water and soap dispenser deck-mounted faucet. The faucet has been designed to avoid soap dripping on the floor and for the users to spend less time in the restroom. The faucet body is made from gold brass. The faucet has a sensor on the right side of the spout to activate the soap and a sensor just above the water outlet to activate the flow of water. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no-touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Gold Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 SecondsAnti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Features

We're available to provide assistance and support for your inquires!

Featured

Check Valve Control, Soap Compatibility & Finish Chemistry

What role does a check valve play in electronic faucet assemblies?

A check valve helps prevent reverse flow, protecting internal components and maintaining controlled water direction.

Which soap viscosity range supports consistent pump operation?

Medium-viscosity liquid soap typically primes more reliably than overly thick formulas that can strain the dispensing pump.

Why should harsh acidic cleaners be avoided on gold finishes?

Acidic or abrasive cleaners can attack the protective coating and reduce surface brilliance over repeated cleaning cycles.

Which tubing condition can interrupt soap delivery?

Kinked or compressed tubing restricts suction flow and may create inconsistent output during activation.
