How does the dual infrared sensing system coordinate independent soap and water activation?

Dedicated infrared sensors separately manage soap dispensing and water flow, allowing each function to operate independently. This architecture minimizes unnecessary water consumption while supporting a hygienic touch-free handwashing sequence in commercial facilities.

Why should the adaptive sensing field be validated after the lavatory is installed?

The intelligent microprocessor automatically optimizes its detection zone based on basin geometry and reflectivity. Final commissioning with the completed sink verifies accurate activation and minimizes false triggering from surrounding surfaces.

How does the 6-volt magnet-latching solenoid improve long-term efficiency?

The magnet-latching solenoid requires power only during switching events instead of continuous energization, reducing electrical consumption, lowering heat generation, and extending battery operating life.

Why is a 50-mesh inlet particle filter incorporated into the hydraulic circuit?

The integrated filter prevents pipe scale, solder residue, and sediment from entering the solenoid valve, helping maintain consistent flow characteristics while reducing maintenance frequency and valve wear.

How does the adjustable sensing range improve installation flexibility?

The digital controller allows the factory detection distance to be adjusted for varying basin depths and countertop configurations, improving activation reliability while preventing unintended operation.

What maintenance practices preserve reliable dual-function performance?

Routine service should include cleaning both infrared lenses, flushing the inlet strainer, inspecting soap tubing, checking transformer or battery condition, and confirming proper operation of both electronic dispensing circuits.

Why should anti-vandal maximum run time be verified during acceptance testing?

Testing the programmed maximum run cycle confirms the controller automatically terminates continuous flow if an object remains within the sensing field, protecting against water waste and misuse.

Which commissioning procedures verify complete BS10012-RG performance?

Commissioning should verify secure deck installation, independent soap and faucet sensor calibration, leak-free 1/2-inch NPT connections, AC/DC power operation, 2.2 GPM aerator performance, digital sensing adjustment, automatic shutoff timing, inlet filter cleanliness, and repeatable operation through multiple activation cycles.

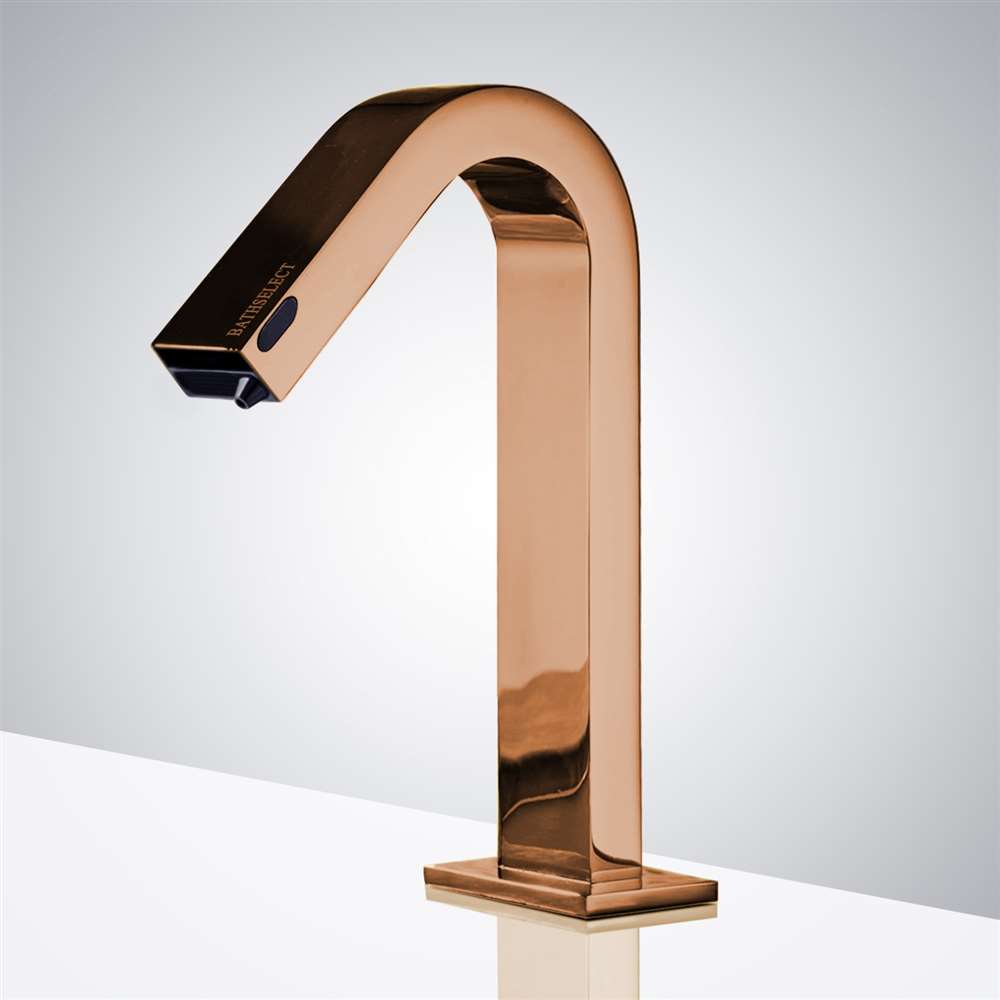

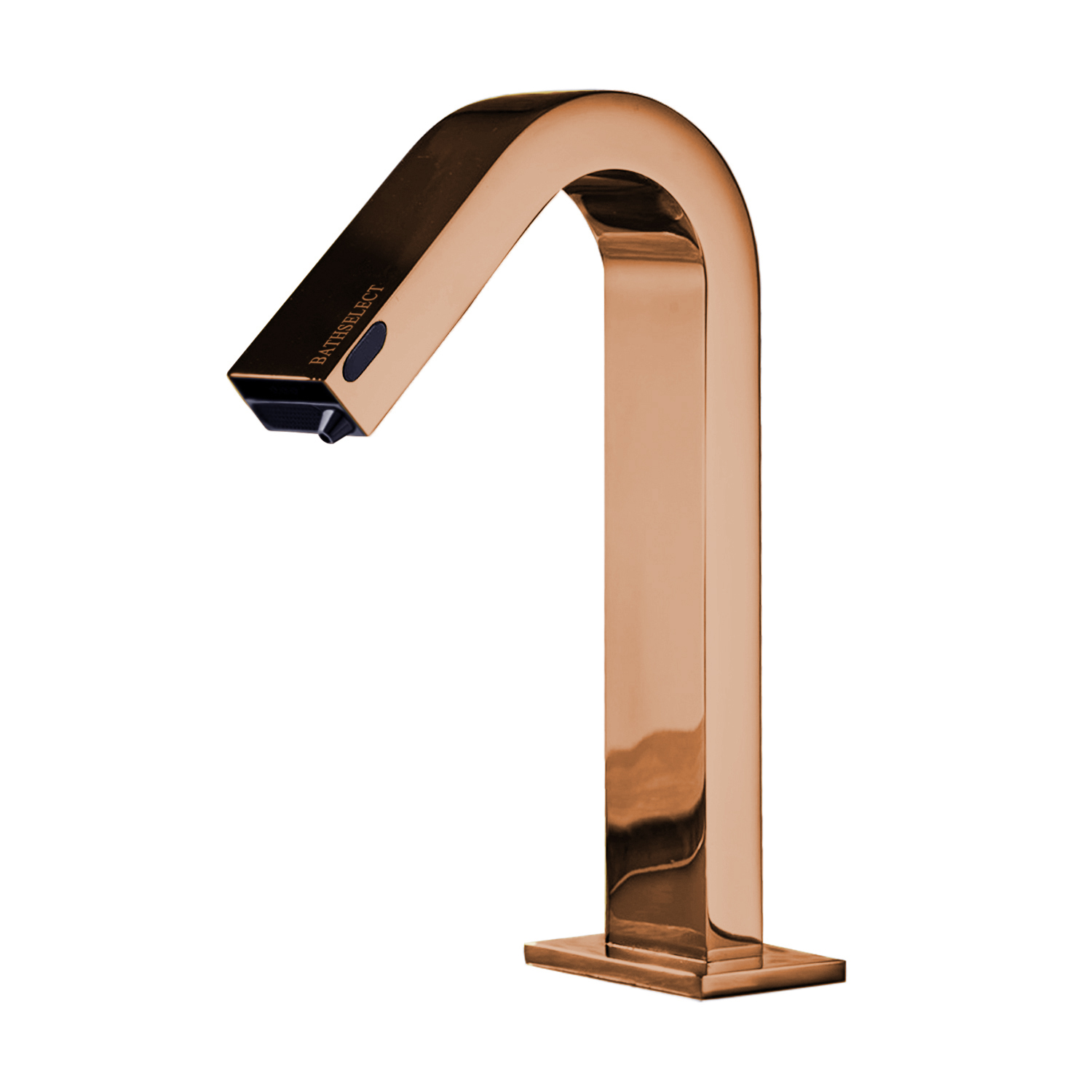

BathSelect Dual Function Automatic Deck Mount Rose Gold Sensor Water Faucet and Soap Dispenser

Alternative Views:

Retail Price: $1,411.58

Sale Price: $1,255.32

You save $156.26!

Price with Selected Options: $1,255.32

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS10012-RG

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Matte Black

Oil Rubbed Bronze

Gold

Brushed Nickel

BathSelect Dual Function Automatic Deck Mount Rose Gold Sensor Water Faucet and Soap Dispenser

Plato Automatic Commercial Sensor Faucet D514 (Available in Oil Rubbed Bronze Finish)

Sensor faucet and soap dispenser complete motion detection operation.
Sensitive Sensor with Infrared AI Smart-Chip
Solid Brass Material, Long Life Durable Body, Rose Gold Finish
Installation made easy with simplified instructions
Water-resistant solenoid enclosure
Advanced energy-saving design for long-lasting battery life
Comes complete with Hoses & Accessories
Time Delay: 0.5 seconds
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, hospitals. Fits all US standard plumbing.

Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Comes Complete for easy installation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of a lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.

Diameter of inlet pipe	DN15
Diameter of outlet pipe	DN15
Water Pressure	0.05Mpa - 0.7Mpa
Power and Voltage	DC.6V
Power and Voltage	AC.220V - 50/60Hz
Power Consumption	0.5MW
Power Consumption	<2W
Detection Zone	Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature	1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure	1P56

Sensor Faucets Simple Installation Instructions FAQ-Sensor Faucet

BathSelect Dual Function Automatic Deck Mount Rose Gold Sensor Water Faucet and Soap Dispenser

This is a water and soap dispenser deck-mounted faucet. The faucet has been designed to avoid soap dripping on the floor and for the users to spend less time in the restroom. The faucet body is made from rose gold brass. The faucet has a sensor on the right side of the spout to activate the soap and a sensor just above the water outlet to activate the flow of water. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no-touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Rose Gold Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 SecondsAnti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Features

We're available to provide assistance and support for your inquires!

Featured

Hydraulic Commissioning, Flow Optimization & Surface Preservation

Which commissioning procedure should be completed before placing the fixture into service?

The plumbing system should be flushed before connecting the faucet to remove installation debris that could affect valves and dispensing components.

What installation practice helps maintain unrestricted water flow?

Supply hoses should be routed with smooth bends to prevent flow restriction and reduce mechanical stress on the fittings.

Why is periodic inspection of sensor alignment recommended?

Confirming proper sensor orientation helps maintain reliable hand detection as surrounding countertop accessories or layouts change over time.

Which maintenance method best preserves a rose gold decorative finish?

Using soft microfiber cloths with non-abrasive cleaners helps protect the finish while maintaining its reflective appearance during routine cleaning.

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 7 Write a review.

5 of 5 people found the following review helpful:

Commercial Hygiene Upgrade	February 18, 2025
Reviewer: A. Whitman, Precision MEP Consultants from New York, NY

Used in a public facility upgrade, the faucet demonstrates consistent performance under continuous usage. Sensor calibration ensures accurate activation without sensitivity issues. Flow regulation remains steady, supporting efficient water usage. The rose gold finish shows durability even with frequent cleaning routines. It integrates well into commercial plumbing environments requiring reliable touchless operation.

Was this review helpful to you?

6 of 6 people found the following review helpful:

Integrated Sensor Solution	January 7, 2025
Reviewer: R. Kim, Apex Facility Engineering from Irvine, CA

This deck-mounted automatic faucet maintains controlled water output suitable for commercial applications. Sensor activation responds quickly and shuts off precisely to reduce water waste. The dual-function design improves operational flexibility. Internal components maintain stable performance over extended use cycles. Installation compatibility simplifies integration into existing plumbing systems.

Was this review helpful to you?

3 of 3 people found the following review helpful:

Touchless Hygiene System	December 20, 2024
Reviewer: S. Mitchell, Metro Facility Services from Columbus, OH

The fixture performs reliably in high-traffic restroom applications where durability is essential. Brass construction enhances resistance to corrosion and mechanical wear. Sensor detection is accurate and consistent throughout repeated use. Water flow remains steady and controlled across varying pressure conditions. Maintenance access is practical for routine servicing.

Was this review helpful to you?

4 of 4 people found the following review helpful:

Integrated Fixture Solution	November 4, 2024
Reviewer: D. Rao, VitalCare Engineering from San Jose, CA

In a recent commercial installation, the automatic sensor system demonstrated stable and responsive performance. Activation timing is well balanced, ensuring efficient water usage without unnecessary run-on. The dual-function capability allows better control over water output. The rose gold finish maintains surface integrity under regular cleaning conditions. Internal valve components support consistent long-term operation.

Was this review helpful to you?

8 of 8 people found the following review helpful:

Dual Sensor Performance	October 18, 2024
Reviewer: L. Hernandez, Horizon Interiors from New York, NY

The dual-function configuration provides flexibility in water delivery, making it suitable for commercial restroom environments with varied usage needs. Sensor activation remains consistent and accurately detects hand movement without false triggering. Flow control is well regulated, supporting water conservation while maintaining usability. The internal brass construction contributes to durability and corrosion resistance. Installation aligns easily with standard deck-mounted plumbing systems.

Was this review helpful to you?
