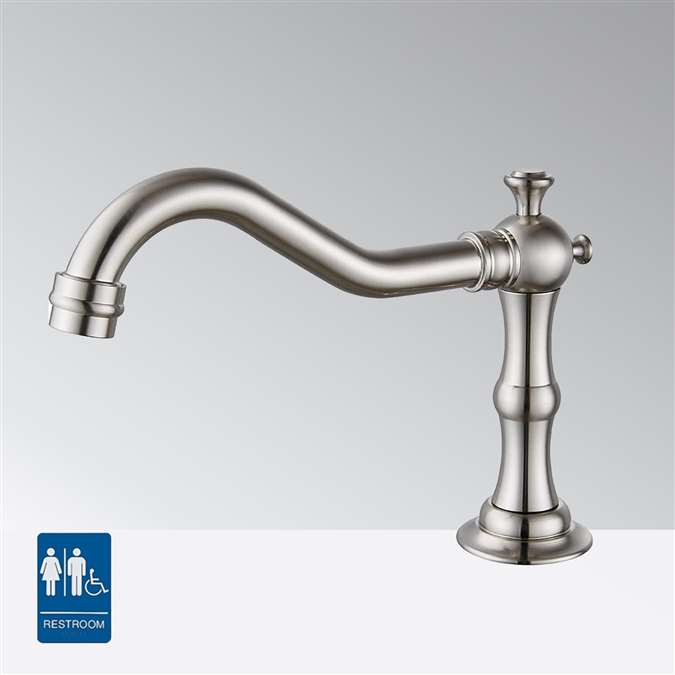

BathSelect Brushed Nickel Commercial Touchless Automatic Sensor Faucet - designed for new and retrofit installations
- Complete motion detection touchless operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Brushed Nickel Finish
- Installation made easy with simplified instructions
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Fit for commercial use applications.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.
|
Brushed Nickel Touchless Faucet; Engineered with corrosion resistance, precise sensing, and durable construction. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
BathSelect Brushed Nickel Commercial Touchless Automatic Sensor Faucet Special Features
- Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant.
- The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power and Voltage: DC.6V AC.220V - 50/60Hz
- Power Consumption: 0.5MW <2W
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
- Degree of protection by enclosure: 1P56
BathSelect Brushed Nickel Brass Commercial Automatic Faucet
|
This cast brass electronic faucet is now available in Venetian style Brushed Nickel finish. This touchless motion sensor faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Uses 4AA Alkaline Batteries Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Ideal for commercial use applications in public restrooms, restaurants, office building, and public facilities. Fits all standard US plumbing. Intelligent: with its micro-computer controlling its action, the motion sensor faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is Brushed Nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation Specified with vandal-resistant aerators designed to resist removal, obstruction, and intentional misuse while maintaining regulated flow output.
|
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2” NPT Male
- Water Temperature Control;
check
Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
What sensing type does it use?
BathSelect Brushed Nickel Commercial Touchless Automatic Sensor Faucet (BST6177BN) uses infrared proximity sensing for hands-free activation.
Is the detection distance tunable?
The sensing window can be calibrated (or auto-learns) to match basin depth and reduce pass-by triggers.
How quick is water start?
Flow should start rapidly after detection; lag typically points to low pressure, clogged strainers, or mis-aimed sensing.
Which power options are supported?
It typically supports battery operation for fast retrofits and AC adapter power when facilities prioritize uninterrupted runtime.
Does it prevent run-on?
Timed shutoff logic limits continuous flow caused by blocked outlets, reflective interference, or repeated nuisance activations.
What causes false triggering?
Direct sunlight, glossy basins, mirror-like backsplashes, and tight aisle traffic can cause misreads without proper calibration.
What upkeep prevents failures?
Clean the sensor lens and service inlet filtration/strainers; most “sensor faults” trace to debris, scale, or flow restriction.
Can it work with mixed temperature?
Many commercial sensor installs pair with an external mixing valve; confirm hot/cold routing and anti-scald requirements in the spec.
We're available to provide assistance and support for your inquiries!
Featured
categories
Brushed Nickel Sensor Faucet
- Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- Battery: 4 x 'AA' size cells
- Operational water pressure range: 0.05 - 0.6MPa
- US standard water supply pipe size: DN15 (G1/2")
- Ambient temperature range: 0.1 - 45ºC
- Sensing distance: 25cm
- Time delay: 0.5 seconds
- Operation duration: power will automatically cut off after continuous use for 60 seconds
- Pop-up drain: No
- Color: Brushed Nickel Finish
Sensor Tap Advantage:
- Conserves water
- Saves energy during water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA complaint Ideal for use by disabled people
- Vandal resistant
- Waterproof Components
|
|
|
|
|
|
|
