BathSelect ORB Finish Brass Commercial Touchless Automatic Sensor Faucet
BathSelect ORB Finish Brass Commercial Touchless Automatic Sensor Faucet

Alternative Views:
Retail Price: $1,253.94
Sale Price: $1,102.92
You save $151.02!

Price with Selected Options: $1,102.92



Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST6177OB


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Rose Gold

Gold

Chrome

Matte Black

Brushed Nickel

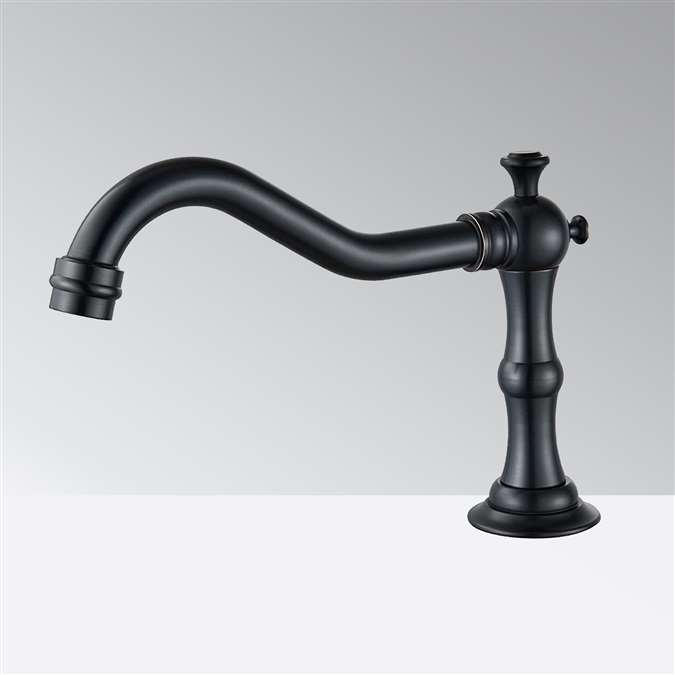

Oil Rubbed Bronze Commercial Touchless Automatic Sensor Faucet - designed for new and retrofit installations

Venice Antique Gold Finish Brass Commercial Automatic Sensor Faucet

  • Complete motion detection touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Oil Rubbed Bronze Finish
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Sensor faucet comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Fit for commercial use applications.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

BathSelect Oil Rubbed Bronze Sensor Activated Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
    • Diameter of inlet pipe: DN15
    • Diameter of outlet pipe: DN15
    • Water Pressure: 0.05Mpa - 0.7Mpa
    • Power and Voltage: DC.6V AC.220V - 50/60Hz
    • Power Consumption: 0.5MW <2W
    • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
    • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
    • Degree of protection by enclosure: 1P56

Features


Busy Facility Commercial Faucet FAQs

Recurring usage issues, specification misinterpretations, and maintenance best practices.

We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

ORB Sensor Faucet

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: ORB Finish

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
BST6177 SENSOR LINE

BST6177™
Technical FAQs

Commercial solid-brass touchless faucet with infrared AI sensing, adjustable detection, AC/DC power, and 2.2 GPM performance.

✥ Sensor Calibration Procedure? +
Complete commissioning after the basin and countertop are installed. The digital infrared system can self-adjust its detection field according to the lavatory geometry, with additional range adjustment available where required.
◇ Sensor Detection Range? +
The active infrared neck-mounted sensor provides an approximately 2–6 inch sensing range. Verify reliable activation and eliminate reflective interference during final commissioning.
◯ Flow Rate Verification? +
The standard aerator is rated at approximately 2.2 GPM. If discharge becomes restricted, inspect the aerator, 50-mesh particle filter, supply pressure, and service connections.
↻ Automatic Shutoff Timing? +
Sensor response is approximately 0.3 seconds with a 2-second shutoff delay. Continuous operation is limited to approximately 60 seconds for anti-vandal and unattended-flow protection.
⌁ Operating Water Pressure? +
The detailed faucet specification lists approximately 1–100 PSI working pressure. Confirm stable dynamic inlet pressure during commissioning for dependable sensor and solenoid performance.
⌂ Supply Connection Size? +
The faucet uses a 1/2-inch NPT male supply inlet. Flush the piping before final hookup and inspect the built-in filtration system for construction debris.
⚡ Power Supply Options? +
The electronic valve can operate from four AA alkaline batteries or an AC adapter. The system uses a 6-volt magnet-latching solenoid for automatic water control.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and aerator, inspect the 50-mesh filter, verify battery condition, and confirm complete solenoid shutoff during scheduled servicing.
BathSelect Oil Rubbed Bronze Commercial Touchless Automatic Sensor Faucet
Oil Rubbed Bronze
♧
2.2 GPM Commercial Flow
◇
Solid Brass Vandal Resistant
⌁
2–6 Inch Infrared Detection
⚙
0.3 Second Fast Response
⚡
AC / DC Dual Power
