How does the water-powered LED generator operate without an external electrical supply?

A miniature hydroelectric turbine converts the kinetic energy of flowing water into electrical power, instantly illuminating the LED module while eliminating the need for dedicated wiring or batteries for the lighting system.

Why should the self-adapting infrared sensor be commissioned with the installed basin material?

Different sink materials reflect infrared energy differently. Commissioning the adaptive sensor with the installed basin improves detection accuracy, minimizes false activation, and maintains dependable hands-free performance.

How does the hygienic automatic line flush improve long-term water quality management?

The programmed line flush periodically refreshes stagnant water within the faucet body and nearby supply piping, reducing water age while supporting hygienic operation in intermittently occupied commercial facilities.

Why should the 500,000-cycle motor valve be included in predictive maintenance planning?

Combining the published valve endurance with expected daily activation frequency allows facility managers to establish preventative maintenance schedules before normal wear affects electronic valve performance.

How does the waterfall discharge improve hydraulic flow characteristics compared with an aerated outlet?

The precision waterfall outlet produces a continuous laminar sheet that reduces outlet turbulence, improves stream stability, and distributes water evenly across the sink while minimizing splash formation.

Why should AC/DC transition testing be performed during commissioning?

Verifying operation under both transformer and battery power confirms uninterrupted sensor processing, valve actuation, and automatic shutoff during temporary electrical supply interruptions.

What maintenance procedures preserve LED generation and infrared sensing performance?

Clean the infrared sensor window, inspect inlet filtration, verify hydro-generator rotation, remove mineral buildup from the waterfall outlet, confirm battery or transformer status, and periodically test hygienic flushing functions.

Which commissioning procedures verify complete BS-BWP12464 faucet performance?

Commissioning should verify self-adapting sensor calibration, hydroelectric LED generation, hygienic line flushing, AC/DC operation, automatic timeout, leak-free G1/2 connections, waterfall discharge stability, and ADA-compliant operation.

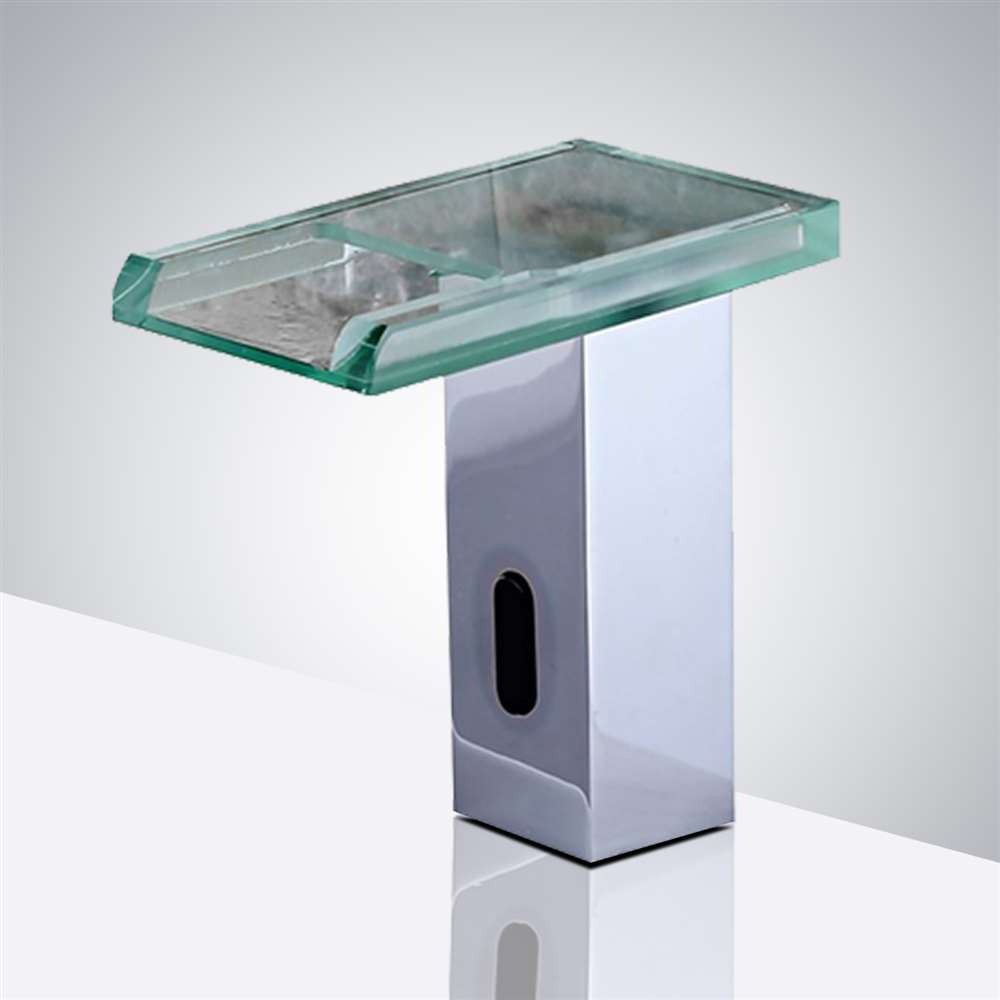

Water Powered Chrome Finish LED Motion Sensor Waterfall Commercial Automatic Faucet

Water Powered LED Motion Sensor Waterfall Commercial Automatic Faucet

Alternative Views:

Retail Price $683.03

Sale Price: $603.62

You save $79.41!

Price with Selected Options: $603.62

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-BWP12464

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

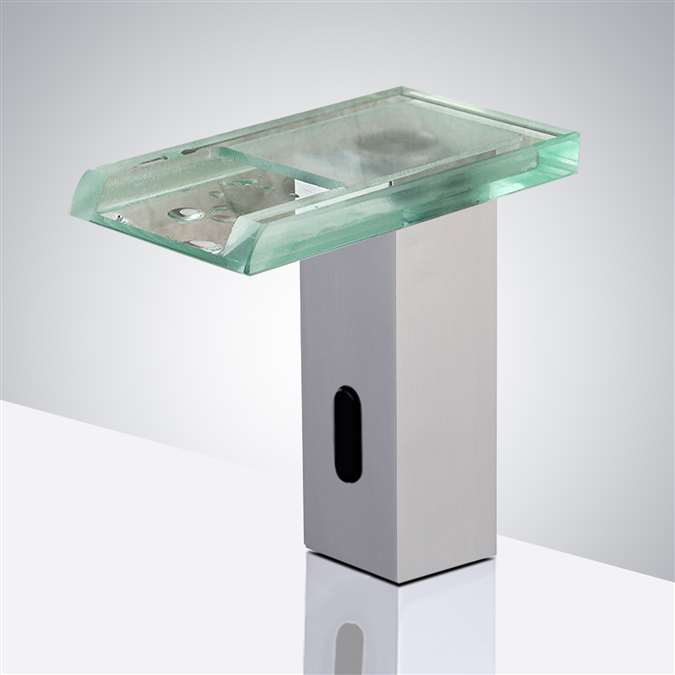

Brushed Nickel

LED Motion Sensor Waterfall Faucet specifics:

Type: Basin Faucet
Brand Name: Fontana
Model Number: BWP12464
Surface Finish: Chrome
Feature: Sensor Faucets
Surface Treatment: Polished
Faucet Mount: Single Hole
Installation Type: Deck Mount
Number of Handle:
Style: Contemporary
Valve Core Material: Ceramic
Faucet Name: Brass Hand Free Automatic Sensor LED Basin Faucet
Material: Copper 59-60%, Sensor faucet
Faucet Type: Sensor LED Faucet
Certification: ISO9001:2000;CE&ROHS
Faucet Style: Automatic Sensor LED Basin Faucet
Usage: Usage: Commercial
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Product Information:

Color will change according to the water temperature.
Between 0~29C, the LED faucet light will emit Blue color; Between 30~39C, the LED faucet light is Green color;
Above 40C, the LED faucet light will emit Red color
The flow rate is 1.8 GPM

Remarks:

Self powered by water pressure-No battery or any electricity required.
When water flows down, the LED will turn on instantly
Brightness is enough even though no other lighting fixtures need

Features:

Touch free: The water flushes automatically when your hand accesses it.
Water temperature adjustable
Hygienic: without touching, bacteria mutual infections can be avoided
Sensing range adjustable: 4.72"-7.08" (12 - 18cm) adjustable distance according to requirements
AC and DC dual choice: can be chosen by exchanging battery box and power box
Save electricity: the faucet can run for two years with four AA alkaline batteries
Anti-disturbance ability: anti high-frequency signal and glare disturbance
Brass body with the temperature handle beside it. It is a mixer, the cold water in the left turning, the hot water in the right turning.
Dimension in cm: 20(Height)*5.5(Width)*12(Length)
Engineered for a lifetime of use
Single-hole configuration

It has a sensitive sensor so you don't have to touch the handle to turn it on or off. With this faucet, your water consumption will be reduced and you will never worry about overflowing again. Great for commercial use.

voltage: DC 6V (4AA alkaline batteries)
power consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
sensor zone: 30cm (11.81") (the data based on 30cm*30cm)
flush time: When hands are within the sensor zone water will automatically flow, when the hand is removed (from the sensor zone) water turns off instantly
hot and cold water temperature control: Cold only
inlet and outlet pipe dia.: G (1/2")
water pressure: 0.05-0.8 Mpa
material and surface: Brass valve with chrome
small packing: 34*24*14cm (1pcs)
carton size: 50*34.5*42cm (6pcs)

Features

We're available to provide assistance and support for your inquiries!

Featured

Hydroelectric LED Generation, Optical Sensor Logic & Waterfall Hydraulic Control

This commercial waterfall faucet combines a water-powered LED generator, infrared touchless sensing, and electronically controlled solenoid operation to provide hygienic activation without requiring external power for LED illumination.

How does the faucet generate LED illumination without external electricity?

A miniature internal turbine converts flowing water into electrical energy, powering the LED module whenever water passes through the faucet body.

How does the optical sensor distinguish valid hand detection?

The infrared receiver analyzes reflected signal intensity and duration before activating the solenoid, reducing unintended operation from surrounding reflective surfaces.

Why is waterfall discharge hydraulically different from a conventional aerated stream?

A precision outlet forms a continuous laminar sheet that lowers turbulence and splash while distributing water evenly across the basin.

How does automatic timeout improve commercial water management?

The electronic controller automatically closes the valve after the programmed operating interval, preventing continuous water discharge if the sensing field remains occupied.

Average Customer Review: Average Customer Review: 4.5 of 5

4.5 of 5 Total Reviews: 20 Write a review.

1 of 1 people found the following review helpful:

Trouble Met Beauty	August 10, 2026
Reviewer: Taylor Carmichael from Jacksonville, FL

Post-purchase communication slowed considerably compared with how responsive everyone was before the order. I had to initiate the conversation when I needed a shipping update. The faucet itself proved much more interesting. Motion-sensor activation makes it practical for commercial use, while the water-powered LED and waterfall configuration give the wash station a distinctive technological element that visitors immediately notice.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Coverage Strengthened	June 8, 2026
Reviewer: Silas Montgomery, Specialist from Manchester, NH

The LED waterfall feature attracted attention, but dependable warranty coverage ultimately influenced our purchasing decision. BathSelect explained support for electronic components in detail, and knowing replacement assistance is available has given our maintenance staff long-term peace of mind.

Was this review helpful to you?

2 of 2 people found the following review helpful:

Highly dependable unit	April 27, 2026
Reviewer: Nathan Collins, Technology Consultant from Seattle, WA

During several executive office restroom modernization projects completed between 2022 and 2024, we installed 12 units of the LED Waterfall Faucet to replace older waterfall systems with inconsistent flow patterns and short-lived electronic lighting components. As of 2026, the faucets continue to operate consistently with minimal servicing intervention.The water-powered LED system performed reliably without requiring external electrical modification, while the waterfall-style stream remained balanced and visually stable during continuous operation. Sensor responsiveness also remained accurate despite varying ambient lighting conditions.From a technical servicing standpoint, turbine-powered illumination consistency and infrared calibration remained highly stable across all installed units. Slight differences in LED brightness were observed under lower-pressure environments, but overall functionality remained dependable.

Was this review helpful to you?

9 of 9 people found the following review helpful:

Efficient and hygienic	November 4, 2023
Reviewer: S A McClanahan from Vernon Hills, IL

Our decision to invest in BathSelect touchless faucets, based on the suggestion of our business consultant, has proven to be a wise one. The touchless operation has streamlined handwashing, contributing to a more efficient and hygienic environment.

Was this review helpful to you?

7 of 7 people found the following review helpful:

Reliable choice	October 14, 2023
Reviewer: Baldwin Remodeling Inc from Willoughby, OH

Kudos to our architect for suggesting BathSelect touchless faucets. The easy installation and top-notch performance have made these faucets a standout feature in our business. A reliable choice for those seeking a perfect blend of aesthetics and functionality.

Was this review helpful to you?
