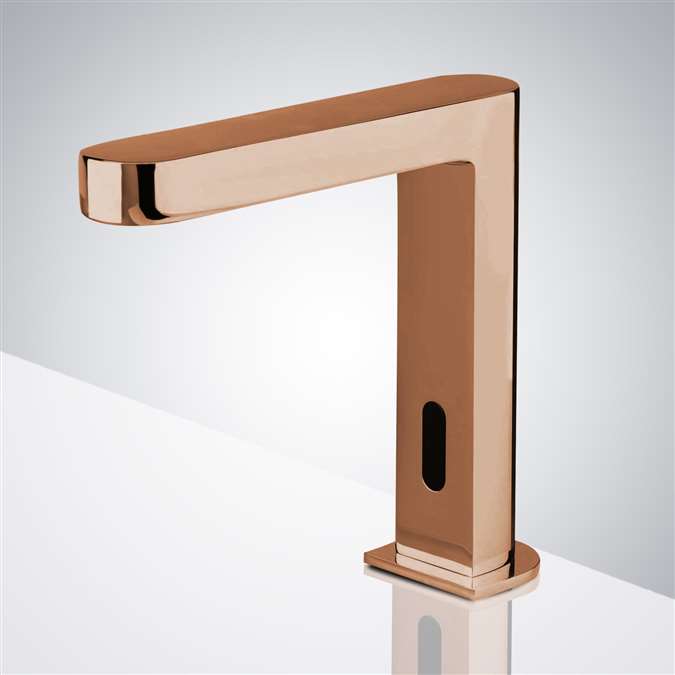

BathSelect Rose Gold Superb L-Body Automatic Motion Sensor Faucet
As practicing religious hygiene routines in public restrooms using touchless technology such as smart faucets helps reduce the spread of germs. BathSelect Rose Gold Superb L-Body Automatic Motion Sensor Faucet comes with a self-setting detection range and is low maintenance to protect working components from debris and natural waterborne elements. Available in Rose Gold to compliment any restroom sink. Cold only or hot & cold mixer option available. Simple to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long-lasting battery life Comes complete with Hoses & Accessories. Luxury L-Body Sensor Faucet; Premium commercial fixture with elongated design, advanced motion sensing, durable brass construction, and efficient water control.
BathSelect Rose Gold Superb L-Body Automatic Motion Sensor Faucet Features:
Brand Name: BathSelect® Model Number: BATHROOM-SENSOR-FAUCET-FB517 Type: Automatic Faucet Water Pressure: 0.5-7.0 KGS/cm, 10-125 psi Finish: Rose Gold Construction: Solid Brass Power Supply: AC110V And DC6V Batteries Included: Not Mounting Type: Deck Mount Usage: Commercial Body Material: Brass Total Height: 4.7" Spout Height: 3.5" Spout Length: 6.6" Valve Type: Ceramic Valve Number of Holes Required for Installation: 1 Hole Flow Rate: 1.3 GPM Usage: Commercial Touchless restrooms operation ideal for commercial use applications in restaurants, office buildings, and public facilities. Fits all standard US plumbing and ADA Compliant.
BathSelect Rose Gold Superb L-Body Automatic Motion Sensor Faucet
This touchless motion sensor faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Uses 4AA Alkaline Batteries Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Ideal for commercial use applications in public restrooms, restaurants, office building, and public facilities. Fits all standard US plumbing. Intelligent: with its micro-computer controlling its action, the motion sensor faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is , with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Rose Gold Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control;
check
Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Sensor Faucet
Infrared sensor operated, touch-free operation
Advanced energy saving design for long lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.6MPa
US standard water supply pipe size: DN15 (G1/2")
Ambient temperature range: 0.1 - 45ºC
Sensing distance: 25cm
Time delay: 0.5 seconds
Operation duration: power will automatically cut off after continuous use for 60 seconds
Pop-up drain: No
Color: Rose Gold Finish
Sensor Tap Advantage:
Conserves water
Saves energy during water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA complaint Ideal for use by disabled people
Vandal resistant
Waterproof Components
SUPERB L-BODY SENSOR LINE
Superb L-Body™
Commercial solid-brass L-body touchless faucet with 2–6 in infrared sensing,
AC/DC power, fast 0.3-second response and 2.2 GPM standard flow.
✥
Sensor Calibration Procedure?
+
Complete sensor commissioning after the basin, countertop and surrounding
fixtures are installed. The microprocessor-controlled infrared system
self-adjusts its detection field to the lavatory geometry and surface
characteristics while maintaining dependable hands-free activation.
◇
Hydraulic Checks During Installation?
+
Flush the supply piping before final connection, verify the 1/2-inch NPT male
inlet, inspect the 50-mesh particle filtration and confirm stable dynamic
water pressure before commissioning the electronic valve assembly.
◯
Flow Rate Verification?
+
The detailed fixture specification lists a 2.2 GPM standard mesh aerator.
During commissioning, verify unrestricted aerator discharge, clean filtration
and adequate dynamic inlet pressure to confirm expected field performance.
↻
Continuous Flow Diagnostics?
+
Clean the infrared sensor window, remove permanent objects from the sensing
field and inspect the 6-volt magnet-latching solenoid for debris or incomplete
seating. Continuous operation is automatically limited to approximately
60 seconds.
⌁
Sensor Detection Range?
+
The neck-mounted active infrared sensor operates within an approximately
2–6 inch sensing field. Final commissioning should account for basin geometry,
countertop reflectivity and nearby fixtures that could influence detection.
⌂
Response & Shutoff Timing?
+
The digital plug-and-play sensor control is specified for approximately
0.3-second response with a 2-second shutoff delay. Verify repeatable activation
and complete solenoid closure during final commissioning.
⚡
Power Supply Options?
+
The faucet can operate from four AA alkaline batteries or an AC adapter,
with AC110V and DC6V operation specified. The battery system is rated for
approximately 250,000 activation cycles under stated operating conditions.
⌕
Routine Maintenance Requirements?
+
Periodically clean the infrared sensor window and aerator, inspect the inlet
filter, remove mineral accumulation and verify battery condition, electrical
connections and positive solenoid shutoff during scheduled maintenance.
‹
›
Rose Gold
♧
2.2 GPM
Standard Aerator
◇
Solid Brass
Commercial Construction
⌁
2–6 Inch IR
Active Infrared Sensor
⚡
AC110V / DC6V
Dual Power
Performance Secured
Infrared Stability
