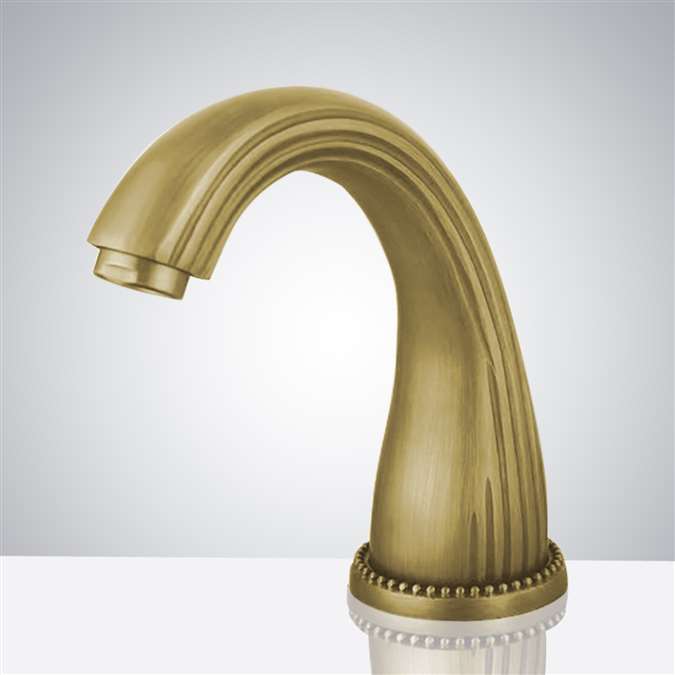

Brushed Gold Brass Commercial Hands-free Motion Sensor Faucet

Alternative Views:

Retail Price: $1,093.31

Sale Price: $1,029.37

You save $63.94!

Price with Selected Options: $1,029.37

Availability: Pre-Order
Product Code: BST6177BG

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Polished Gold

Matte Black

Antique Gold

Brushed Gold Brass Commercial Hands-free Motion Sensor Faucet - designed for new and retrofit installations

Venice Antique Gold Finish Brass Commercial Automatic Sensor Faucet

Complete motion detection touchless operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Brushed Gold Finish
Installation made easy with simplified instructions
Water-resistant solenoid enclosure
Advanced energy-saving design for long-lasting battery life
Sensor faucet comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
Fit for commercial use applications.
ADA Compliant.
Can be installed in new or retrofit applications.
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

Brushed Gold Brass Commercial Hands-free Motion Sensor Faucet Special Features

Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meaning of the codes is described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V AC.220V - 50/60Hz
Power Consumption: 0.5MW <2W
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
Degree of protection by enclosure: 1P56

BathSelect Brushed Gold Brass Commercial Automatic Faucet

Brushed gold unit with reinforced mounting, calibrated sensing, and consistent operation. The new Brushed Gold finish is a hit with modern bathroom design enthusiasts. This cast brass touchless motion sensor faucet reduces the transfer of germs by preventing cross-contamination and re contamination, which makes it ideal for commercial use applications in public restrooms or restaurants where there's high traffic on handles but not so much contact time between customers' hands and water sources like spigots (think: kitchens).. Intelligent: with its micro-computer controlling its action, the motion sensor faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is brushed old, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard

Features

We're available to provide assistance and support for your inquiries!

Featured

Brushed Gold Sensor^™
Technical FAQs

Commercial hands-free faucet with vandal-resistant brass construction, adaptive infrared sensing, AC/DC power, 2.2 GPM flow and serviceable solenoid filtration.

✥ How Does the Sensor Self-Calibration Work? +

The microcomputer-controlled infrared system can self-adjust its optimum detection zone according to the color and geometry of the installed lavatory. Complete final commissioning after the basin and surrounding reflective surfaces are permanently installed.

◇ What Sensing Range Does the Faucet Support? +

BathSelect lists a factory detection zone of about 25 cm or 10 inches, while normal field sensing is typically adjusted around 4 to 5 inches. Extended technical data also specifies an active infrared range of approximately 2 to 6 inches.

◯ What Is the Rated Flow Performance? +

The commercial faucet is equipped with a standard 2.2 GPM aerator. During maintenance, verify inlet pressure, inspect the aerator and clean the supply filtration before changing sensor or solenoid settings.

↻ How Does Automatic Shutoff Protection Work? +

The faucet is factory configured with an approximately 30-second automatic shutoff that can be adjusted. Extended electronic protection also limits continuous operation to approximately 60 seconds to reduce unattended or vandal-related water discharge.

⌁ How Quickly Does the Faucet Respond? +

The active infrared controller is specified with an approximately 0.3-second response time. After the user's hands leave the sensing field, the solenoid closes after an approximately 2-second shutoff delay.

⌂ How Is the Solenoid Protected From Debris? +

A built-in serviceable strainer and 50-mesh particle filter help prevent debris from reaching the solenoid valve. Isolate the supply and clean the filtration components during scheduled commercial maintenance.

⚡ Which Power Configurations Are Supported? +

The faucet supports AC and DC operation, including DC6V battery power and an AC supply arrangement. BathSelect also specifies four AA alkaline batteries with approximately 250,000 expected operating cycles in its extended technical information.

⌕ What Should Preventive Maintenance Include? +

Clean the infrared sensor window and aerator, inspect the built-in strainer, verify power condition and confirm reliable solenoid shutoff. Also inspect the brass fixture mounting and supply connections during scheduled high-traffic restroom maintenance.

Brushed Gold

♧

2.2 GPM Standard Aerator

⌁

2–6 in IR Detection

⚡

AC / DC Flexible Power

◇

Solid Brass Vandal Resistant

⚙

IP56 Protected Controls

Average Customer Review: Average Customer Review: 4.5 of 5

4.5 of 5 Total Reviews: 3 Write a review.

1 of 1 people found the following review helpful:

Operation Perfected	Tuesday, July 14, 2026
Reviewer: Elliot Ramsey, Consultant from Fort Collins, CO

The BathSelect team demonstrated impressive commercial product experience by recommending the correct configuration for our project. Their guidance eliminated installation uncertainty, and the faucet has delivered dependable performance since commissioning.

Was this review helpful to you?

4 of 4 people found the following review helpful:

Engineering Beneath Elegance	Wednesday, July 1, 2026
Reviewer: Cameron Aldridge from Scottsdale, AZ

Brushed gold may attract the initial attention, but the commercial architecture behind this faucet is what gives it specification value. The related platform combines infrared sensing, automatic shutoff, brass construction, AC/DC power flexibility, a protected solenoid, and serviceable inlet filtration. Those features address several recurring maintenance concerns in busy washrooms. The brushed surface still benefits from careful cleaning, but for hospitality projects wanting warmer finishes without giving up commercial-grade automation, the balance is convincing.

Was this review helpful to you?

3 of 3 people found the following review helpful:

Highly consistent activation	Wednesday, April 22, 2026
Reviewer: Melissa Holloway, Infrastructure Advisor from Scottsdale, AZ

Rather than continuing to service decorative touchless faucets that frequently developed coating wear and unstable sensor detection, we transitioned several luxury hospitality restroom projects to the Gold Brass between 2023 and 2025. The faucet maintained excellent long-term reliability in demanding guest environments. Its infrared sensing system delivered highly consistent activation, while the brushed gold brass finish resisted corrosion and cleaning-related wear substantially better than earlier luxury fixtures.One technical advantage became especially noticeable over time: the solenoid assembly maintained stable response speed during continuous high-cycle operation, which reduced valve-related maintenance interruptions across multiple properties.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Works very well	Sunday, January 30, 2022
Reviewer: Method Construction, Inc. from New York

The motion sensor works precisely every time. I don't have to touch this faucet at all. This make it very easy to use specially when my hands are dirty and I just want to rinse them rather than touch the faucet, wash my hands and then wash the faucet.The new Brushed Gold finish is a hit with modern bathroom design enthusiasts.

Was this review helpful to you?
