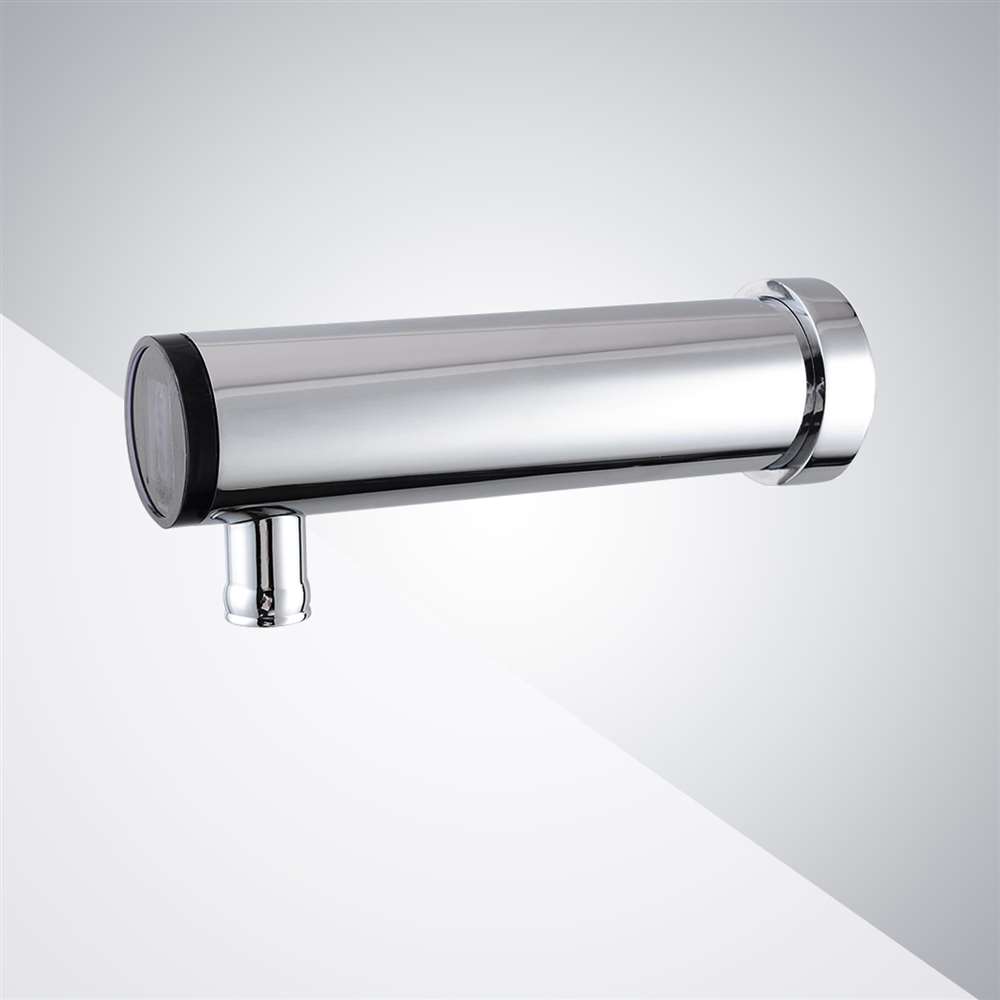

Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet in Chrome
Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet

Alternative Views:
Retail Price $714.44
Sale Price: $674.64
You save $39.80!

Price with Selected Options: $674.64





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-BSH27653


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Brushed Nickel

Wall Mount Commercial Touchless Faucet Quick Details:

  • Type: Touchless Motion Faucet
  • Brand Name: Fontana Sensor Faucets
  • Model Number: H27653
  • Surface Finish: Chrome
  • Feature: Motion Sense Faucets
  • Surface Treatment: Polished
  • Faucet Mount: Single Hole
  • Installation Type: Wall Mount
  • Number of Handle: Single Handle
  • Style: Contemporary
  • Valve Core Material: Ceramic
  • Material: Copper 59-60%, Sensor faucet
  • Faucet Type: Wall Sensor Faucet
  • Faucet Style: Sensor Faucet
  • Usage: Commercial
  • Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Product Description:

  • Voltage: DC 6V (4AA alkaline batteries)
  • Power consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
  • Sensor zone: 30cm (11.81")(the data based on 30cm*30cm standard whiteboard
  • Flush time: When hands are in the sensor zone, water will run automatically, and when the hand is no longer in the sensor zone, water will close.
  • Hot and cold water temperature control: Cold only
  • Inlet & outlet pipe dia: G(1/2")
  • Water pressure: 0.05-0.8 Mpa
  • Material and surface: Brass valve with chrome
  • The flow rate is 1.5 GPM

Faucet Quality Control Inspection:

  • Inspection of the casting
  • Leakage test inspection
  • Surface inspection after polishing
  • Surface inspection after plating
  • Leakage test at assembly

Features:

  • Touch free: Water runs automatically when your hands are in sensor range.
  • Water temperature adjustable
  • Hygienic: with no touch, bacteria mutual infections can be avoided
  • Sensing range adjustable: (4.72"-7.08")12 - 18cm adjustable distance according to requirements
  • AC and DC dual choice: can be chosen by exchanging battery box and power box
  • Save electricity: The faucet will run for two years with four AA alkaline batteries
  • Anti-disturbance ability:anti high-frequency signal and glare disturbance
  • Brass body
  • Dimension in cm: 20(Height)*5.5(Width)*12(Length)
  • Engineered for a lifetime of use
  • Single-hole configuration
  • Great for commercial use.
Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more
WALL-MOUNT SENSOR LINE

Wall Mount Sensor™
Technical FAQs

Commercial wall-mount touchless faucet with adjustable infrared sensing, 1.5 GPM flow, brass construction and AC/DC power compatibility.

✥ Sensor Commissioning Procedure? +
Complete sensor commissioning after the finished wall, basin and surrounding reflective surfaces are installed. Verify consistent hand detection and adjust the sensing field to suit the final basin position and user approach.
◇ Adjustable Detection Range? +
The infrared sensing range is adjustable from approximately 12 to 18 cm, or 4.72 to 7.08 inches. Final adjustment should account for basin depth, spout position and reflective surfaces near the sensor.
◯ Commercial Flow Rate? +
The wall-mount sensor faucet is specified at approximately 1.5 GPM. Maintain clean supply lines and stable pressure to preserve consistent outlet performance during commercial use.
↻ Operating Water Pressure? +
The product documentation lists approximately 0.05–0.8 MPa operating pressure. Flush supply piping before connection and verify stable dynamic pressure during final commissioning.
⌁ Power Supply Configuration? +
The faucet operates on DC 6V using four AA alkaline batteries and supports an AC/DC power configuration through the appropriate control box, allowing flexible commercial installation.
⌂ Supply Connection Size? +
The inlet and outlet connections are specified as G1/2". Confirm compatible supply fittings and adequate concealed service access before completing the finished wall installation.
⚡ Battery Service Expectancy? +
BathSelect states that four AA alkaline batteries can provide approximately two years of service when operated around 300 activation cycles per day under normal conditions.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and outlet, inspect concealed supply connections, verify battery condition and confirm reliable automatic valve closure during scheduled commercial maintenance.
Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet in Chrome
Chrome
♧
1.5 GPM Controlled Flow
◇
Brass Body Commercial Construction
⌁
12–18 cm Adjustable Sensor
⚙
0.05–0.8 MPa Operating Pressure
◇
AC / DC 6V Dual Power
