How does the Insight infrared sensing system maintain accurate hand detection under changing ambient conditions?

The infrared controller continuously analyzes reflected signals while rejecting glare and high-frequency interference, maintaining dependable hand recognition without compromising activation speed in demanding commercial environments.

Why should the adjustable sensing distance be calibrated after final sink installation?

Final calibration compensates for basin depth, wall projection, and surrounding reflective materials, improving detection accuracy while minimizing unintended activation during normal restroom operation.

How does the ceramic valve core improve hydraulic stability during repeated operating cycles?

The precision ceramic valve provides low-friction sealing, rapid shutoff response, and consistent flow regulation while reducing internal wear during continuous commercial activation.

Why should AC and DC operating modes both be validated before project handover?

Verifying both transformer and battery operation confirms uninterrupted sensor processing, valve actuation, and automatic shutoff during temporary electrical interruptions or maintenance events.

How does the wall-mounted brass body improve long-term structural reliability?

The brass construction resists corrosion, maintains dimensional stability under repeated pressure loading, and provides dependable threaded connection integrity throughout extended commercial service.

Why should the 1.5 GPM flow rate be verified together with operating pressure?

Confirming system pressure within the specified operating range allows the electronic valve to maintain stable discharge characteristics while preserving efficient water management and dependable activation.

What maintenance procedures preserve brushed finish quality and sensor performance?

Clean the sensor lens with non-abrasive materials, inspect inlet filtration, verify battery or transformer condition, examine ceramic valve response, and remove mineral deposits from the outlet assembly.

Which commissioning procedures verify complete BS-BSH27B faucet performance?

Commissioning should verify infrared calibration, adjustable sensing range, ceramic valve operation, AC/DC functionality, leak-free G1/2 plumbing, automatic shutoff timing, flow stability, and wall outlet alignment.

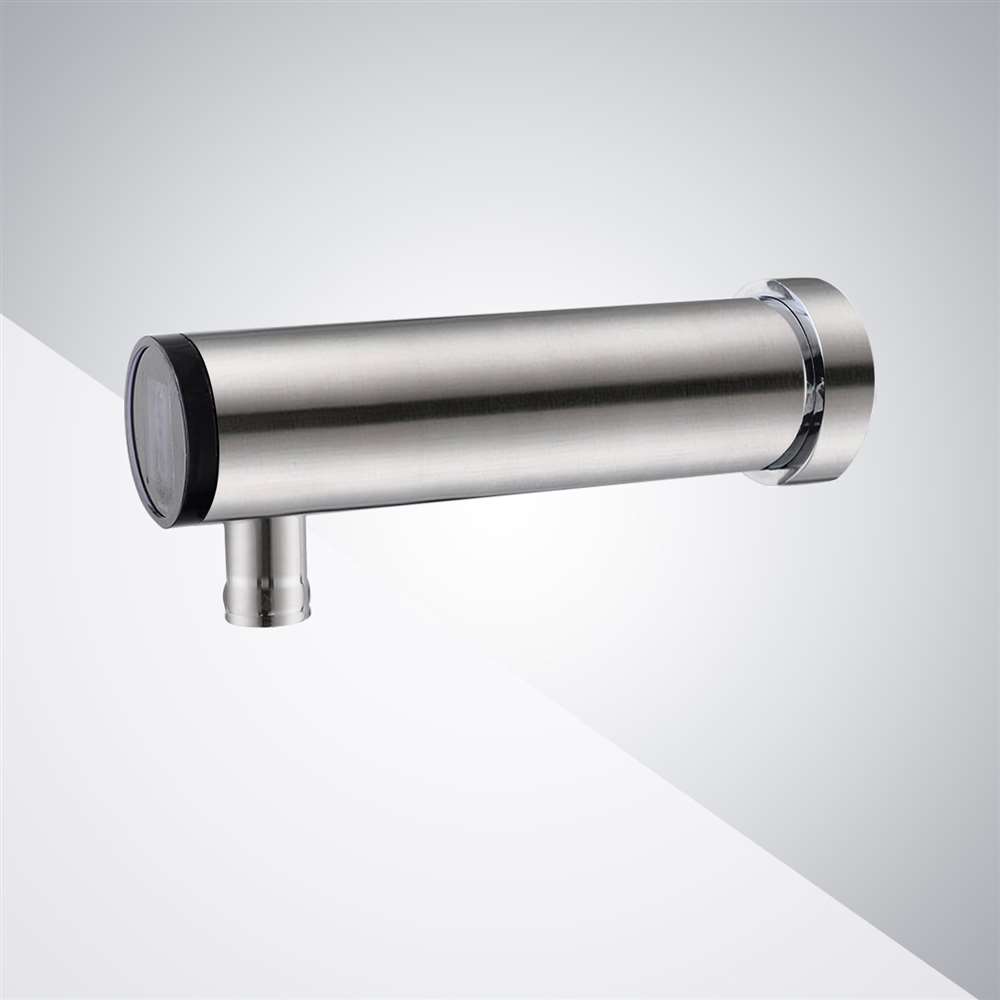

Wall Mount Single Hole Hands Free Brushed Nicke

Alternative Views:

Retail Price $716.08

Sale Price: $676.22

You save $39.86!

Price with Selected Options: $676.22

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-BSH27B

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Chrome

Wall Mount Commercial Touchless Faucet Quick Details

Type: Touchless Motion Faucet
Brand Name: Fontana Sensor Faucets
Model Number: H27653
Surface Finish: Brushed Nickel
Feature: Motion Sense Faucets
Surface Treatment: Brushed
Faucet Mount: Single Hole
Installation Type: Wall Mount
Number of Handle: Single Handle
Style: Contemporary
Valve Core Material: Ceramic
Material: Copper 59-60%, Sensor faucet
Faucet Type: Wall Sensor Faucet
Faucet Style: Sensor Faucet
Usage: Commercial
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Product Description:

Voltage: DC 6V (4AA alkaline batteries)
Power consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
Sensor zone: 30cm (11.81")(the data based on 30cm*30cm standard whiteboard
Flush time: When hands are in the sensor zone, water will run automatically, and when the hand is no longer in the sensor zone, water will close.
Hot and cold water temperature control: Cold only
Inlet & outlet pipe dia: G(1/2")
Water pressure: 0.05-0.8 Mpa
Material and surface: Brass valve with brushed nickel
The flow rate is 1.5 GPM

Faucet Quality Control Inspection:

Inspection of the casting
Leakage test inspection
Surface inspection after polishing
Surface inspection after plating
Leakage test at assembly

Features:

Touch free: Water runs automatically when your hands are in sensor range.
Water temperature adjustable
Hygienic: with no touch, bacteria mutual infections can be avoided
Sensing range adjustable: (4.72"-7.08")12 - 18cm adjustable distance according to requirements
AC and DC dual choice: can be chosen by exchanging battery box and power box
Save electricity: The faucet will run for two years with four AA alkaline batteries
Anti-disturbance ability:anti high-frequency signal and glare disturbance
Brass body
Dimension in cm: 20(Height)*5.5(Width)*12(Length)
Engineered for a lifetime of use
Single-hole configuration
Great for commercial use.

Wall Mount Single Hole Hands Free Commercial Automatic Touchless Sensor Faucet

Features

We're available to provide assistance and support for your inquiries!

Featured

Wall Sensor Geometry, Ceramic Valve Mechanics & Infrared Interference Suppression

This wall-mounted commercial touchless faucet combines infrared sensing, a ceramic valve core, and brass construction to deliver hygienic hands-free operation with dependable hydraulic performance for commercial restrooms.

How does wall-mounted sensor geometry improve activation accuracy?

Positioning the sensor beneath the wall-mounted spout creates a focused detection field that minimizes reflections from countertops and surrounding fixtures.

Why is a ceramic valve core important for automatic faucets?

Precision ceramic sealing surfaces resist wear during repeated solenoid operation while maintaining reliable shutoff and smooth internal water control.

How does infrared interference suppression improve reliability?

The controller filters glare and high-frequency optical disturbances before energizing the solenoid, reducing false activations in busy commercial environments.

How does the wall-mounted configuration improve restroom hygiene?

Removing the faucet body from the countertop leaves fewer areas for standing water and simplifies routine sink cleaning.

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 2 Write a review.

3 of 3 people found the following review helpful:

Excellent quality for the price!	January 11, 2021
Reviewer: Shirley from New York

Feel a really good value when compared to what you would spend for something similar at the big box home improvement stores. The faucet is well made and strongly put together.

Was this review helpful to you?

3 of 3 people found the following review helpful:

Excellent quality for the price!	January 21, 2019
Reviewer: Shirley from New York

After installation, the unit performed consistently under daily use. The BathSelect Excellent quality for the price! (Model BS-BSH27B) demonstrated consistent sensor activation and controlled water flow. The solid brass construction supports durability, while the finish maintains its appearance under frequent use.

Installation was straightforward with standard connections, and the internal components allow for easy maintenance access. The sensor response is well-balanced, avoiding false triggers while ensuring user convenience.

BathSelect’s support team provided clear technical guidance during setup and helped streamline the process. Overall, the fixture meets commercial expectations for reliability, hygiene, and long-term performance.
