Fontana Commercial Automatic Sensor Faucet In Gold And Touchless Automatic Sensor Liquid Soap Dispenser

hands free automatic commercial bathroom sink faucets sensor faucets and soap dispenser for lavatory

Alternative Views:


Retail Price: $1,861.47
Sale Price: $1,841.47
You save $20.00!

Price with Selected Options: $1,841.47





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS18270GLD


Hot & Cold Option:


Qty:
Description Technical Specs Extended Technical Information


Fontana Commercial Automatic Sensor Faucet In Gold And Touchless Automatic Sensor Liquid Soap Dispenser

  • Motion detection touchless sensor faucet operation
  • Commercial and residential use
  • Sensitive Sensor with Infrared AI Smart-Chip Soap Dispenser
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Gold Finish
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Sensor Faucets
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56


BathSelect Touchless Faucet Set in Gold Finish

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Faucets
View more
Touchless Combo
View more
Touchless Soap Dispensers
View more
COMMERCIAL SENSOR COMBO LINE

Fontana Commercial
Technical FAQs

Commercial touchless faucet and automatic soap-dispenser system with solid-brass construction, intelligent infrared sensing, AC/DC power and 30-second automatic shutoff.

Sensor Calibration Procedure? +
Complete commissioning after the basin, countertop and dispenser are installed. The faucet uses intelligent infrared control that can self-adjust its effective detection zone according to surrounding basin color and geometry, while the sensing range can also be adjusted where required.
Hydraulic Checks During Installation? +
Flush the plumbing before final connection, confirm DN15 inlet and outlet connections, verify adequate dynamic pressure and inspect the built-in strainer. The removable strainer helps prevent debris from entering the solenoid valve.
Water Pressure Requirements? +
The product page specifies a working range of approximately 0.05–0.7 MPa, also listed as approximately 10–125 PSI. Confirm stable dynamic pressure at the fixture during final commissioning.
Automatic Shutoff Operation? +
The faucet is factory configured with an approximately 30-second automatic shutoff period. This safety function limits unattended water discharge and can be adjusted according to installation and facility requirements.
Sensor Detection Range? +
The faucet sensing range is adjustable, with the product documentation noting a factory hand-detection range of approximately 4–5 inches. A separate listed reference detection zone is approximately 25 cm using a standard inductive board.
Soap Dispenser Sensor Operation? +
The matching automatic soap dispenser uses an infrared AI smart-chip sensing system for hands-free dispensing. Commission both sensing fields independently to minimize cross-triggering between the faucet and dispenser at the basin.
Power Supply Options? +
The sensor faucet supports AC110V and DC6V operation with an AC/DC power option. The battery configuration uses four AA alkaline batteries, allowing installation in both new construction and retrofit restroom applications.
Commercial Maintenance Requirements? +
Periodically clean the faucet and dispenser sensor windows, inspect the inlet strainer, check hoses and electrical connections, verify solenoid shutoff and respond to the diagnostic indicator for power, low-battery or solenoid status.

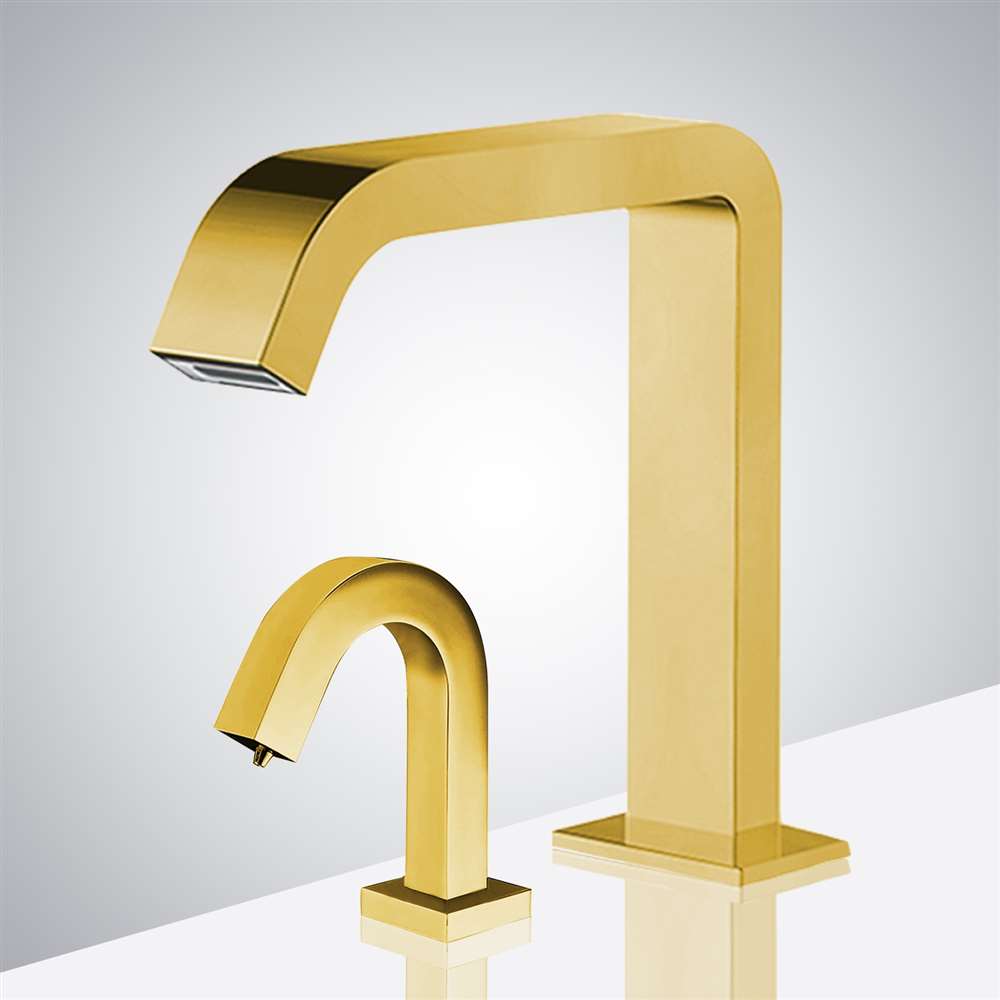

BathSelect Commercial Polished Gold Automatic Sensor Faucet and Soap Dispenser
Polished Gold
Infrared Sensor Intelligent Detection
Solid Brass Vandal Resistant
30 Sec Shutoff Automatic Control
AC110V / DC6V Dual Power Option
ADA Compliant Commercial Grade

Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 5 Write a review.

  1 of 1 people found the following review helpful:

4 of 5 Maintenance Issues Lower April 28, 2026
Reviewer: Nathaniel Prescott, Technology Consultant from Sedona, Arizona
Verifying long-term performance of decorative commercial fixtures often reveals a tradeoff between appearance and reliability. After installing this gold sensor faucet and dispenser system across hospitality restroom upgrades, both operational consistency and finish durability exceeded expectations. Earlier decorative fixtures frequently developed cosmetic wear alongside sensor-related issues, whereas this model maintained dependable activation and dispensing performance under demanding commercial conditions. Maintenance teams reported fewer service calls and reduced appearance-related upkeep, contributing to improved long-term value.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

3 of 5 Output Repeatability April 9, 2026
Reviewer: Jasper Holloway, Analyst from Spokane, WA
Our facilities department evaluated soap output and water activation over several inspection cycles before standardizing this model. Both systems continue delivering repeatable performance under high daily occupancy, improving maintenance forecasting while reducing consumable variation between individual restroom locations.

Was this review helpful to you?

  4 of 4 people found the following review helpful:

5 of 5 Gold Set Precision February 9, 2026
Reviewer: Ethan Brooks from Miami, FL
Fontana Commercial Automatic Sensor Faucet In Gold And Touchless Automatic Sensor Liquid Soap Dispenser fit well into a premium office wash station update because the project needed a touchless fixture that looked deliberate and performed consistently. The gold presentation works well in shared restrooms where appearance matters, while the activation stays steady through repeat daily use. The coordinated faucet-and-dispenser setup also improves workflow at the basin and keeps the handwashing zone more cohesive. The result is a stronger hygiene presentation and more dependable day-to-day use.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Balanced Water Output December 12, 2025
Reviewer: Harper Russell from Charlotte, North Carolina
After installing this unit across multiple restrooms, the performance stood out immediately. The BathSelect Gold Set Precision (Model BS18270GLD) delivered stable results.

As a facility manager, I focused heavily on sensor accuracy and long-term durability. This unit uses a well-tuned infrared system that avoids false activation while maintaining quick response. The PVD-treated gold finish is executed with solid brass construction, giving it structural reliability even in high-use environments.

Customer support from BathSelect provided clear guidance on configuration and reduced setup time. Overall, the unit meets commercial expectations for reliability, hygiene, and lifecycle performance.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

4 of 5 Great Style October 29, 2019
Reviewer: Touch Above the Best LLC from Alberta
Recently purchased this Commercial Automatic Motion Sensor Liquid Soap Dispensers with Faucets for hotel bathrooms renovation and looked extensively before making my selection. Was looking particularly for this type of finish products. Looks great in my bathrooms was excited to get this so that everyone wouldn’t be touching the sensor faucet/soap dispenser with germy hands, especially the customers.

Was this review helpful to you?
