Fontana Commercial Automatic Sensor Faucet In Light Oil Rubbed Bronze And Touchless Automatic Sensor Liquid Soap Dispenser
hands free automatic commercial bathroom sink faucets sensor faucets and soap dispenser for lavatory

Alternative Views:
Retail Price: $1,772.84
Sale Price: $1,753.81
You save $19.03!

Price with Selected Options: $1,753.81





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS18270LORB


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Dark Oil Rubbed Bronze

Brushed Gold

Brushed Nickel

Polished Gold

Fontana Commercial Automatic Sensor Faucet In Light Oil Rubbed Bronze And Touchless Automatic Sensor Liquid Soap Dispenser

  • Motion detection touchless sensor faucet operation
  • Commercial and residential use
  • Sensitive Sensor with Infrared AI Smart-Chip Soap Dispenser
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Light Oil Rubbed Bronze Finish
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
  • Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high use restroom applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Sensor Faucets
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56


Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Faucets
View more
Touchless Combo
View more
Touchless Soap Dispensers
View more
FONTANA COMMERCIAL SENSOR LINE

Fontana Commercial™
Technical FAQs

Commercial infrared sensor faucet and automatic soap dispenser with solid brass construction, adjustable sensing, AC/DC power and five coordinated finish options.

✥ Sensor Calibration Procedure? +
Complete sensor commissioning after the basin, countertop and surrounding accessories are installed. The factory sensing position is approximately 4 to 5 inches and can be adjusted to coordinate with the final lavatory geometry.
◇ Hydraulic Checks During Installation? +
Flush the supply line before final connection, verify the DN15 inlet and outlet connections, inspect the built-in strainer for debris and confirm secure hoses before commissioning the electronic valve assembly.
◯ Faucet and Dispenser Commissioning? +
Commission the touchless faucet and automatic soap dispenser independently. Confirm reliable water activation, controlled soap delivery and complete shutoff after hands leave each sensing field.
↻ Continuous Water Flow Diagnostics? +
Clean the infrared sensor window, remove reflective objects from the detection field and inspect the solenoid valve for contamination or incomplete seating. The factory automatic shutoff is approximately 30 seconds.
⌁ Sensor Detection Range? +
The infrared sensing field is adjustable during commissioning. BathSelect specifies approximately 4 to 5 inches as the factory position and also lists a nominal 25 cm detection reference under standard inductive-board conditions.
⌂ Operating Water Pressure? +
The primary product specification lists approximately 10 to 125 PSI, while the technical data also specifies 0.05 to 0.7 MPa. Maintain stable dynamic inlet pressure during commissioning.
⚡ Power Supply Options? +
The sensor faucet supports AC110V and DC6V operation with AC/DC capability. Battery operation uses four AA alkaline batteries, allowing the system to support new and retrofit installations.
⌕ Routine Maintenance Requirements? +
Periodically clean the faucet and dispenser sensor windows, inspect the built-in strainer, remove mineral or particulate buildup and verify reliable solenoid opening, soap dispensing and automatic shutoff.

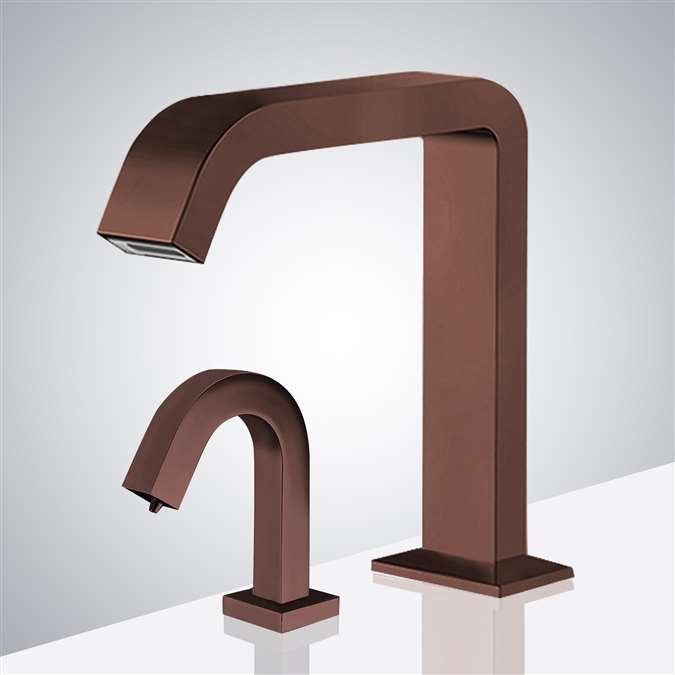

Fontana Commercial Light Oil Rubbed Bronze Touchless Automatic Sensor Faucet and Soap Dispenser
Light Oil Rubbed Bronze
♧
30 Sec Auto Shutoff
◇
Solid Brass Commercial Construction
⌁
4–5 Inches Adjustable Sensor
⚙
AC110V / DC6V Dual Power Option
◇
10–125 PSI Commercial Pressure
