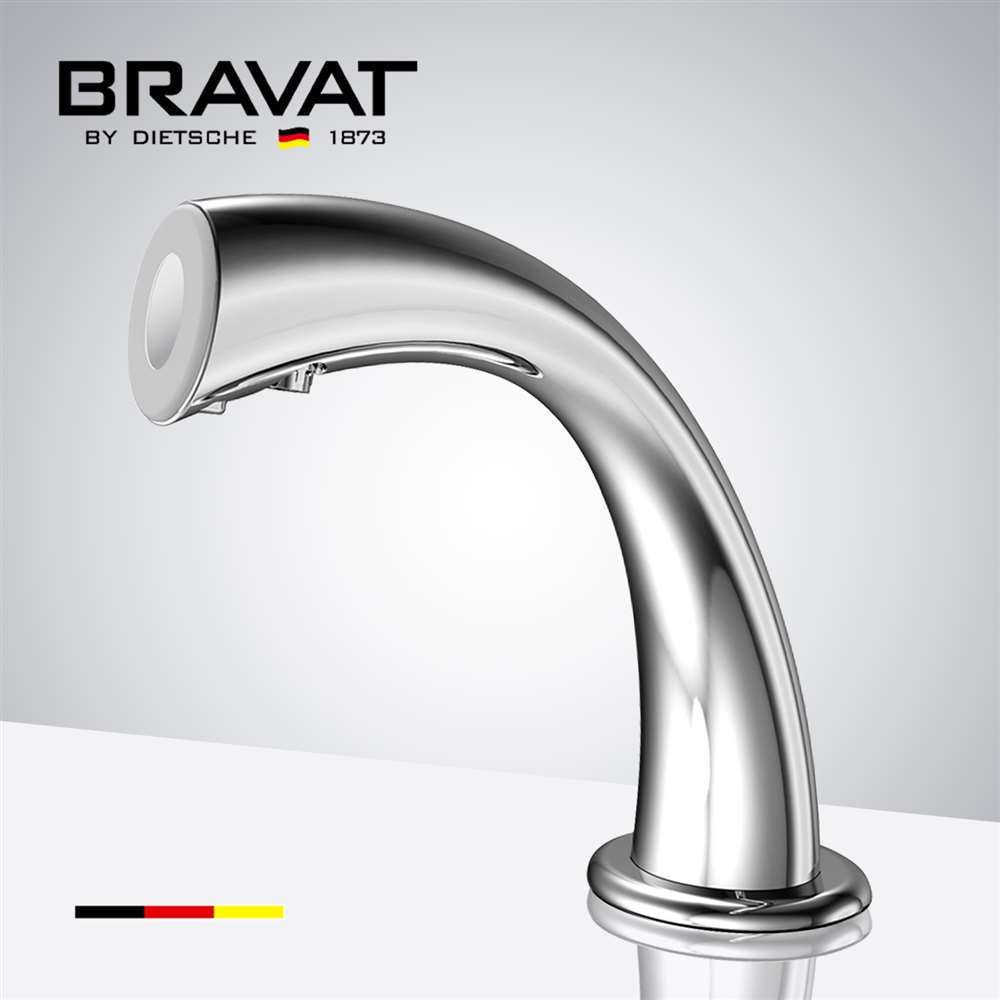

Bravat Commercial Automatic Hands Free Sensor Faucet
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.
Sensor Activated Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meaning of the codes is described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Complaint
- Battery life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted/
- Place of Origin: Germany
- Sensor faucet complete motion detection operation.
- Commercial use.
- Sensitive Sensor with Infrared AI Smart-Chip
- The factory is set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications
- Usage: Commercial
- Finish: Chrome
- Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
BathSelect® Manufacturer Warranty Information
 Installation Instructions for Bravat Commercial Automatic Sensor Faucets
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power and Voltage: DC.6V AC.220V - 50/60Hz
- Power Consumption: 0.5MW <2W
- Detection Zone: Factory sets 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure: 1P56
The Bravat Commercial Sensor Activated Touchless Faucet
|
Sleek New Sensor Faucets Ideal for High End Commercial Applications. ADA Compliant - Touchless Bathroom Sink Faucets. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Commercial Motion Sensor Faucet; Built with infrared activation, controlled discharge, and durable performance for continuous-duty applications.
|
Trio Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
Hands Free - no touch, avoid bacteria mutual infections!
A must in, restrooms, hotels, restaurants, public places, government facilities...!
-
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped
- complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard
- 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All
- the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome
- Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy:
- 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
Water Temperature Control;
check
Options for temperature
- control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared,
- Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2†to 6â€
Response Time:
- 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
Flow Precision
