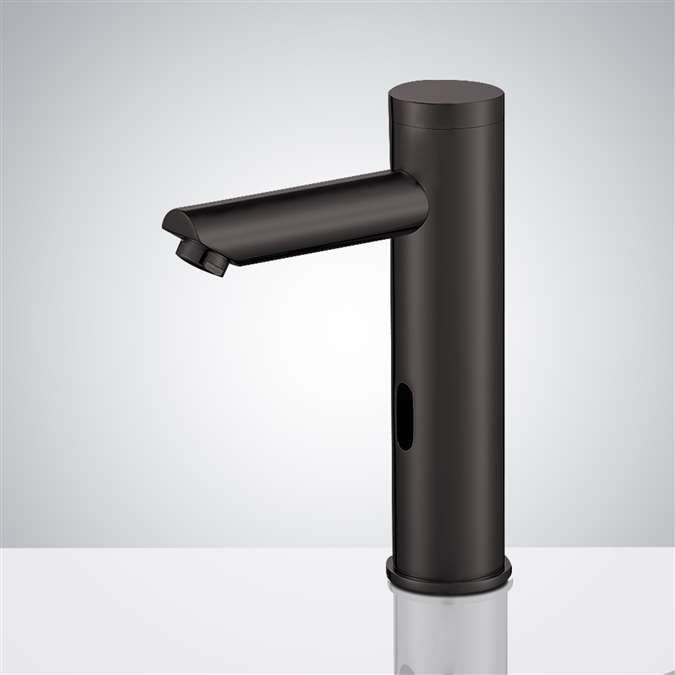

Solo Hands Free Oil Rubbed Bronze Automatic Commercial Sink Faucet
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Solo Touchless Automatic Commercial Sensor Faucet Oil Rubbed Bronze Product Description
Our Solo Oil Rubbed Bronze Sensor faucet is a brilliant solution for a specialty designed restroom being a simple 90 degree shape and charming Oil Rubbed Bronze color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize the waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard US plumbing. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup) Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Motion detection touchless sensor faucet operation
Commercial use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Oil Rubbed Bronze Finish
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
Sensor Activated Faucet Special Features:
Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
The meaning of the codes is described in the installation instructions.
Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
The faucet can be mounted to any sink surface.
ADA Compliant.
The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Sensor Faucets
Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power and Voltage: DC.6V AC.220V - 50/60Hz
Power Consumption: 0.5MW <2W
Detection Zone: Factory sets 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure: 1P56
Sensor Faucet water-saving; hygienic; automatically opens and closes to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Chrome Plated Solid Brass Power: 4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy: 250,000 cycles Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2” NPT Male
Water Temperature Control; check Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital, Pug And Play Sensing Range: 2” to 6”
Response Time: 0.3 Second Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquiries!
Featured
categories
Solo Electronic Sensor Faucet Product Description
Infrared sensor operated, touch-free operation
Advanced energy saving design for long lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.6MPa
US standard water supply pipe size: DN15 (G1/2")
Ambient temperature range: 0.1 - 45ºC
Sensing distance: 25cm
Time delay: 0.5 seconds
Operation duration: power will automatically cut off after continuous use for 60 seconds
Pop-up drain: No
Color: Gold Tone Finish
For longevity of life time and to stand against the daily wear and tear the gold tone finish used is PVD coatings.
Sensor Tap Advantage:
Conserves water
Saves energy during water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA complaint Ideal for use by disabled people
Vandal resistant
Waterproof Components
SOLO SENSOR LINE
Solo™
Commercial infrared touchless faucet with solid brass
construction, Oil Rubbed Bronze finish, intelligent
self-adjusting sensing, AC/DC power, and solenoid control.
✥
How Should the Detection Zone Be Commissioned?
+
Complete commissioning after the faucet, basin and
countertop are fully installed. The digital infrared
sensor supports an adjustable approximately 2 to 6 inch
working range and can self-adjust detection behavior
according to lavatory geometry and surface conditions.
◇
What Is the Sensor Response Time?
+
The active infrared control is specified with an
approximately 0.3-second response time. Confirm
consistent hand recognition throughout the intended
activation field and verify that nearby reflective
surfaces do not generate unintended triggering.
◯
How Should Supply Pressure Be Verified?
+
The product description lists approximately
10 to 125 PSI, while the extended technical section
specifies a working range of 1 to 100 PSI. Maintain
stable dynamic inlet pressure and flush supply piping
before final sensor commissioning.
↻
How Does Automatic Shutoff Operate?
+
The faucet is factory configured with an adjustable
approximately 30-second automatic shutoff safeguard.
The solenoid also closes approximately two seconds
after the sensing field clears during a normal
handwashing cycle.
⌁
What Is the Anti-Vandal Run Limit?
+
Continuous activation is limited to approximately
60 seconds. This anti-vandal operating limit
automatically interrupts water delivery if an
object remains inside the infrared sensing field
for an extended period.
⌂
What Supply Connection Is Required?
+
The extended specification identifies a
1/2-inch NPT male supply inlet, while the
product technical section also references DN15
connections. Confirm supply alignment, sealing
and service access before final installation.
⚡
What Power Configurations Are Supported?
+
The Solo sensor platform supports AC/DC operation.
The extended specification identifies four AA
alkaline batteries or an AC adapter together with
a 6-volt magnet-latching solenoid for efficient
electronic valve control.
⌕
What Maintenance Points Require Routine Service?
+
Clean the infrared sensor window regularly, inspect
the built-in strainer and 50-mesh particle filter,
check supply connections and verify dependable
solenoid opening and complete shutoff during
scheduled fixture maintenance.
‹
›
Oil Rubbed Bronze
◇
Solid Brass
Vandal Resistant
⌁
0.3 Sec Sensor
Infrared Response
⚙
AC / DC Power
Dual Power Design
Great product, Good value.
