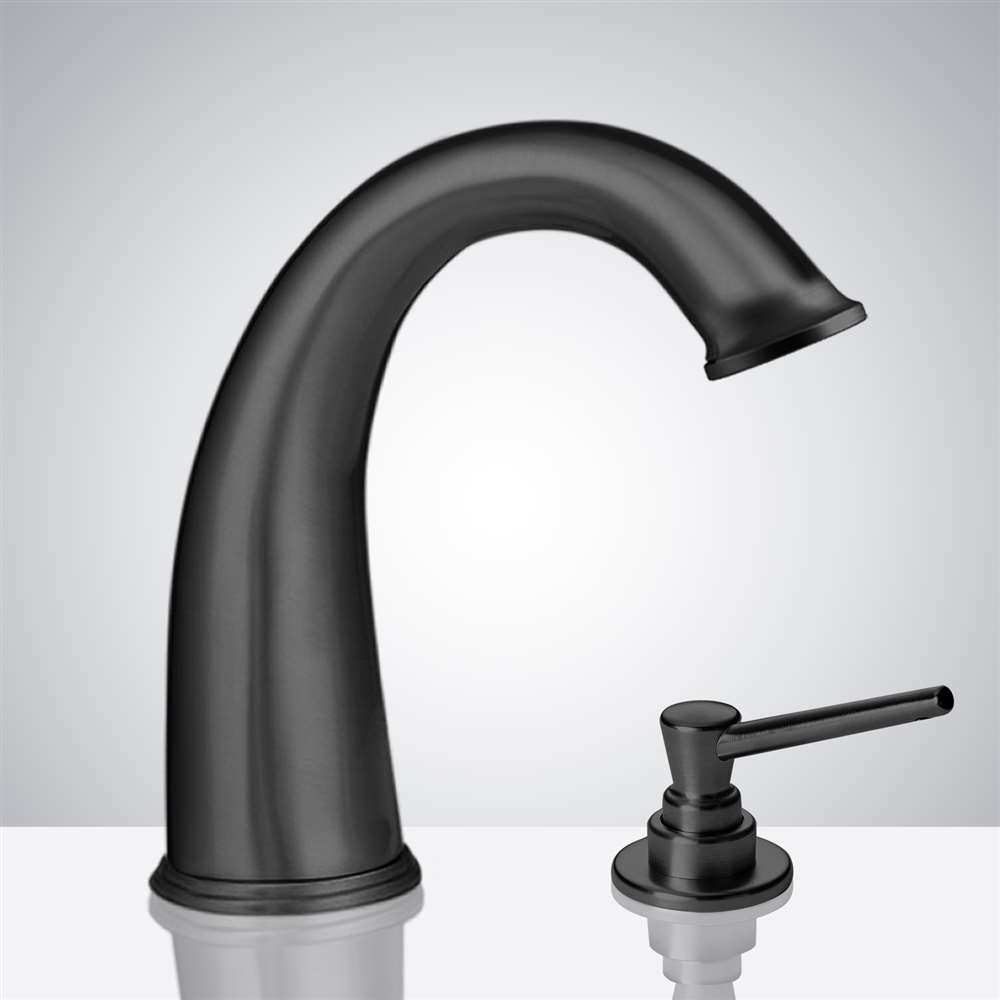

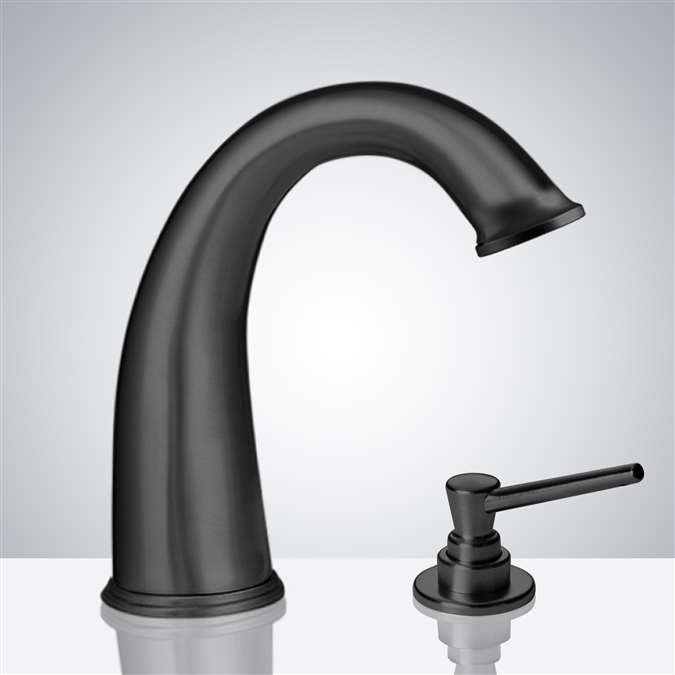

BathSelect Dark Oil Rubbed Bronze Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser
The BathSelect Dark Oil Rubbed Bronze Commercial Infrared Automatic Electronic Sensor Activated Touchless Faucet with Manual Soap Dispenser
This sensor faucet brings a new element of design and cost-effectiveness into every bathroom it is installed. The cylindrical base, the infrared sensor, the elegant curve and the dark oil rubbed bronze finish exudes a stylish and contemporary appeal that is perfect for the modern bathroom. Aside from the voguish design, the BathSelect Infrared Electronic Faucet is built with solid brass to ensure its longevity - which is why the manufacturer confidently packs it with a ten years warranty. The infrared sensor is sure to work all the time, releasing water only if there is an object within its range and automatically shutting water flow after preset time. This greatly decreases the amount of water wasted from leaving the tap on. The infrared sensor battery is guaranteed to work up to three years. The energy saving architecture of this electronic sensor faucet ensures you will be able to enjoy this touch-free electronic faucet for years and years to come. Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Touch-Free Commercial Faucet — hybrid specification balancing modern hygiene expectations with proven mechanical reliability.
Sensor faucet complete motion detection operation.
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
Solid Brass Construction, Dark Oil Rubbed Bronze
Installation made easy with simplified instructions
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Can be installed in new or retrofit applications.
Durable Vandal-Resistant Brass Body;
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
Fits all standard US plumbing.
Intelligent: with its micro-computer controlling its action,
The faucet will self adjust best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mounted to any sink surface.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Usage: Commercial / Residential
Diameter of inlet pipe:
DN15
Diameter of outlet pipe:
DN15
Water Pressure:
0.05Mpa - 0.7Mpa
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
Power Consumption:
0.5MW, <2W
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure:
1P56
Bravat Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
Smart Faucets - no touch, avoid bacteria mutual infections!
A great addition to public bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout: Solid Brass Power: 4 (AA) Alkaline
Batteries or AC Adapter
Battery life expectancy: 250,000 cycles
Solenoid valve: 6 Volt magnet latching
Working Water Pressure: 1 PSI -100 PSI
Supply Inlet Size: 1/2†NPT Male
Water Temperature Control;
check
Options for temperature control sensor faucets
Built-in Pop-Up Drain
Rod: N/A
Sensor type and Location: Active Infrared, Neck mount Sensor
Microprocessor: Digital,
Pug And Play Sensing Range: 2†to 6â€
Response Time: 0.3 Second
Shut-Off Delay Time: 2 Seconds
Anti vandalism maximum Running Time: 60 Seconds
Particle filter size: 50
Mesh Aerator: 2.2 GPM Standard
Features
We're available to provide assistance and support for your inquires!
Featured
categories
COMMERCIAL SENSOR + MANUAL SOAP LINE
BathSelect Sensor™
Commercial touchless faucet with manual soap dispenser,
solid brass construction, adaptive infrared sensing,
AC/DC power and serviceable electronic valve filtration.
✥
How Does the Sensor Self-Calibration Work?
+
The microcomputer-controlled infrared system evaluates
the color and shape of the installed lavatory and
automatically adjusts its optimum detection behavior.
Complete final commissioning after the basin, countertop
and surrounding reflective surfaces are installed.
◇
What Is the Factory Detection Zone?
+
The factory detection zone is approximately 25 cm
or 10 inches based on the standard inductive board.
BathSelect also specifies an adjustable normal sensing
position around 4 to 5 inches from the sensor for
final field commissioning.
◯
What Is the Rated Flow Performance?
+
The standard aerator is rated at approximately
2.2 GPM. If discharge becomes restricted, verify
dynamic supply pressure, inspect the aerator and
clean the built-in filtration before changing the
sensor or solenoid settings.
↻
How Does the Automatic Shutoff Operate?
+
The faucet is factory configured with an approximately
30-second automatic shutoff that can be adjusted.
Extended electronic control also limits continuous
operation to approximately 60 seconds to reduce
unattended or vandal-related water discharge.
⌁
How Does the Manual Soap Dispenser Work?
+
The coordinated soap dispenser is mechanically operated
and does not depend on electronic sensing. This provides
predictable soap delivery even during battery replacement,
power interruption or sensor servicing while maintaining
a coordinated commercial wash-station layout.
⌂
How Is the Solenoid Protected From Debris?
+
A built-in serviceable strainer and approximately
50-mesh particle filtration help prevent debris from
entering the solenoid valve. During scheduled service,
isolate the supply, clean the filtration components
and confirm unrestricted flow before restarting.
⚡
Which Power Configurations Are Supported?
+
The faucet supports AC110V and DC6V configurations,
including four-AA battery operation or AC-powered
installation depending on the supplied package.
Confirm controller, transformer and battery arrangement
before final electrical commissioning.
⌕
What Should Preventive Maintenance Include?
+
Clean the infrared sensor window and aerator, inspect
the inlet strainer, verify electrical power and confirm
reliable solenoid shutoff. Also inspect and clean the
manual soap-dispenser pump and reservoir components
during scheduled commercial maintenance.
‹
›
Dark Oil Rubbed Bronze
♧
2.2 GPM
Commercial Flow
⌁
25 cm
Factory Detection
◇
Solid Brass
Commercial Construction
⚙
IP56
Protected Controls
