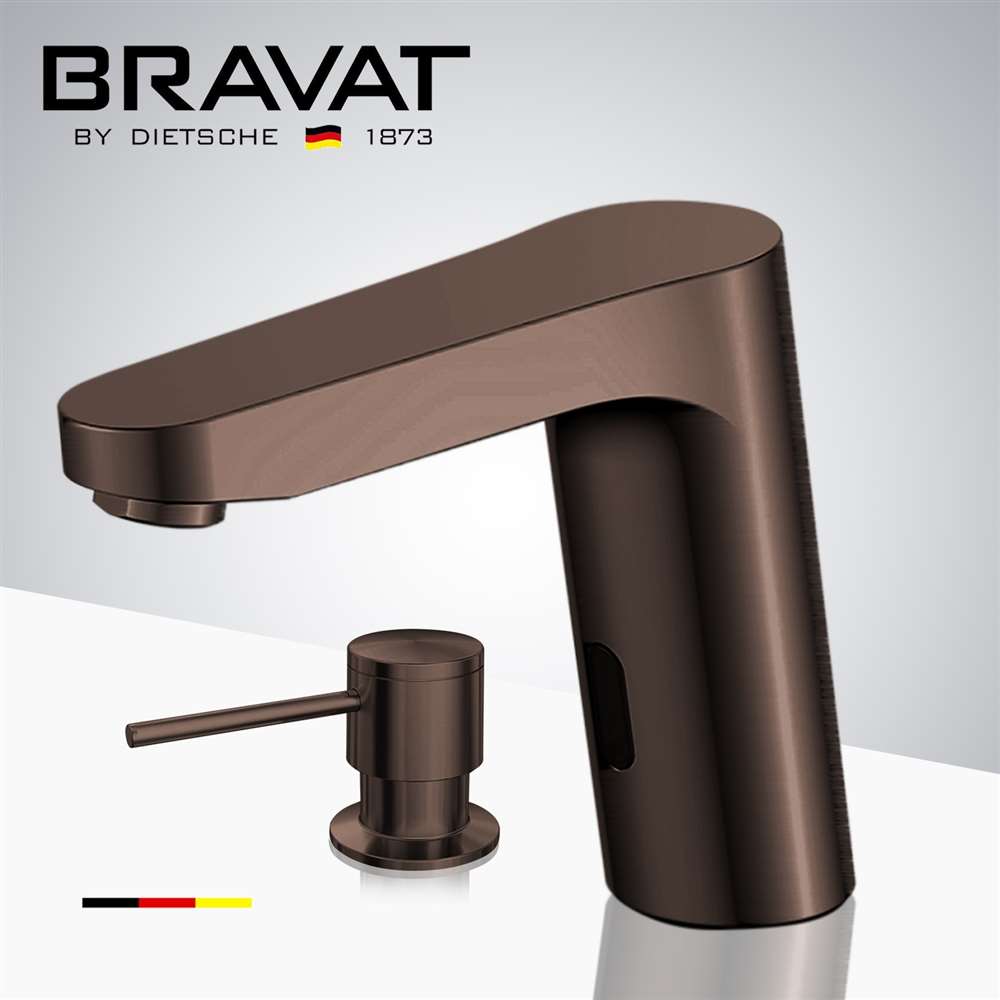

BathSelect Light Oil Rubbed Bronze Infrared Automatic Electronic Commercial Faucet with Manual Soap Dispenser
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Light Oil Rubbed Bronze
- Installation made easy with simplified instructions
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- Durable Vandal-Resistant Brass Body;
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals.
- Fits all standard US plumbing.
- Intelligent: with its micro-computer controlling its action,
- The faucet will self adjust best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mounted to any sink surface.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Usage: Commercial / Residential
|
|
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V, AC.220V - 50/60Hz
-
Power Consumption:
0.5MW, <2W
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
The Bathselect Light Oil Rubbed Bronze Commercial Infrared Automatic Electronic Sensor Activated Touchless Faucet with Manual Soap Dispenser
This sensor faucet brings a new element of design and cost-effectiveness into every bathroom it is installed. The cylindrical base, the infrared sensor, the elegant curve and the light oil rubbed gold finish exudes a stylish and contemporary appeal that is perfect for the modern bathroom. Aside from the voguish design, the Bathselect Infrared Electronic Faucet is built with solid brass to ensure its longevity - which is why the manufacturer confidently packs it with a ten years warranty. The infrared sensor is sure to work all the time, releasing water only if there is an object within its range and automatically shutting water flow after preset time. This greatly decreases the amount of water wasted from leaving the tap on. The infrared sensor battery is guaranteed to work up to three years. The energy saving architecture of this electronic sensor faucet ensures you will be able to enjoy this touch-free electronic faucet for years and years to come. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Smart Commercial Faucet — modern hands-free experience without increasing system fragility.
Bravat Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
Smart Faucets - no touch, avoid bacteria mutual infections!
A great addition to public bathroom, hotels, restaurants, public places, government facilities...!
- This Sensor Faucet Applications; Residential, Commercial use & ADA
This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
- Specifications and Dimensions
- Spout: Solid Brass Power: 4 (AA) Alkaline
- Batteries or AC Adapter
- Battery life expectancy: 250,000 cycles
- Solenoid valve: 6 Volt magnet latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2†NPT Male
- Water Temperature Control;
check
Options for temperature control sensor faucets
- Built-in Pop-Up Drain
- Rod: N/A
- Sensor type and Location: Active Infrared, Neck mount Sensor
- Microprocessor: Digital,
- Pug And Play Sensing Range: 2†to 6â€
- Response Time: 0.3 Second
- Shut-Off Delay Time: 2 Seconds
- Anti vandalism maximum Running Time: 60 Seconds
- Particle filter size: 50
- Mesh Aerator: 2.2 GPM Standard
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
We're available to provide assistance and support for your inquires!
Featured
categories
Commercial Automatic Motion Sensor Faucet FAQ
Sensor Self-Learning Logic, Hydraulic Stability & Intelligent Water Management
This commercial automatic sensor faucet integrates AI self-learning infrared technology, precision brass waterways, and intelligent electronic flow management for reliable touch-free performance.
How does the controller compensate for different sink colors and reflective surfaces?
The AI sensing processor continuously adapts detection sensitivity according to the lavatory's geometry and reflectivity, maintaining a stable activation zone without manual recalibration.
What prevents continuous water discharge if an object remains beneath the spout?
A programmable electronic timeout automatically closes the valve after the preset operating interval, conserving water while preventing excessive solenoid duty cycles.
Which design element protects internal electronics from restroom humidity?
The control module and solenoid are housed within a water-resistant enclosure that shields sensitive electrical components from moisture, condensation, and routine cleaning exposure.
Why is solid brass selected for the hydraulic body instead of lightweight alloys?
Solid brass provides excellent corrosion resistance, stable threaded connections, and superior dimensional accuracy under repeated pressure loading, making it well suited for commercial plumbing applications.
|
|
|
|
|
|
|
