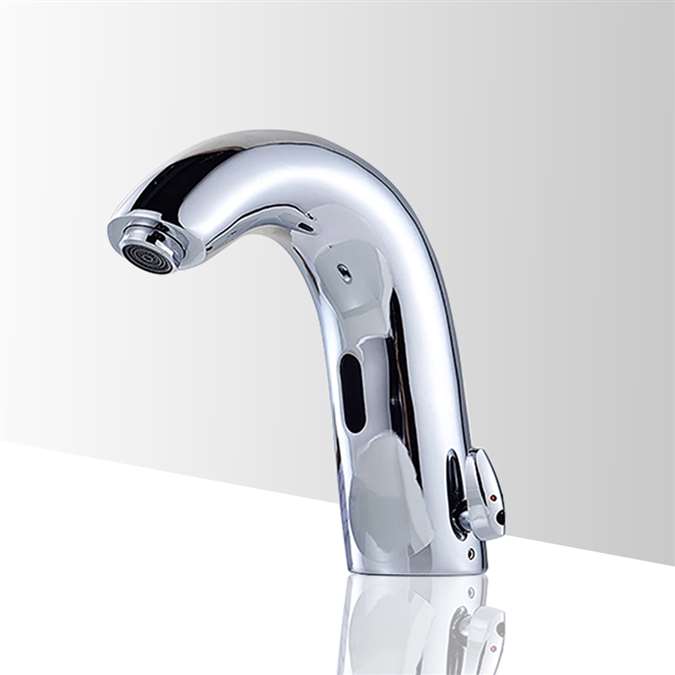

Chatue Commercial Automatic Temperature Control Automatic Hands Free Sensor Faucet
- Touchless Operation
- Temperature Control Feature
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply : AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Can be installed in new or retrofit applications.
- The flow rate is 1.5 GPM
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
|
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
Automatic Temperature Control Sensor Activated Faucet Special Features :
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Complaint
- Batteries life is 8,000s cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
Installation Manual For Chatue Thermostatic Sensor Faucet
- Diameter of inlet pipe: DN15
- Diameter of outlet pipe: DN15
- Water Pressure: 0.05Mpa - 0.7Mpa
- Power: DC.6V
- Detection Zone: Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure: 1P56
BathSelect® Manufacturer Warranty Information
 Installation Instructions for Chatue Commercial Automatic Temperature Control Thermostatic Sensor Faucet
Automatic Commercial Sensor Faucet Product Description
|
Many people have difficulty using faucets and water controls that require grasping and twisting faucet handle. Automatic faucets are easy to use they are smart choices, for anyone who wants to conserve water and reduce the spread of germs. Thermostatic sensor tap and faucets have been seen in various public rest areas, but they are becoming more popular in the home too. Residential electronically controlled faucets eliminate the need to touch or turn handles and the temperature and flow rate can be pre-set. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing. Intelligent : with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Chatue Automatic infrared Thermostatic Sensor mixer Faucet
- The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
- The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
- Installation is a child's game, almost like a manual faucet
- Easy servicing
- Version with mixer to adjust the temperature also available
- 6V battery or electrical connection version available
- Solenoid valve inside the product
- Operates with low and high pressures (0.5 to 7Bar)
- Range adjustment
- Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
|
|
|
|
|
|
|
