BathSelect White Finish Commercial Touchless Motion Sensor Faucet
BathSelect White Finish Commercial Touchless Motion Sensor Faucet

Alternative Views:
Retail Price: $1,240.05
Sale Price: $1,079.59
You save $160.46!

Price with Selected Options: $1,079.59





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BST617-W


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Rose Gold

Matte Black

Chrome

Gold

BathSelect White Finish Commercial Touchless Motion Sensor Faucet - designed for new and retrofit installations

  • Complete motion detection touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, White Brass Finish
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Sensor faucet comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Fit for commercial use applications.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.

BathSelect White Finish Commercial Touchless Motion Sensor Faucett Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meaning of the codes is described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approximately 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
    • Diameter of inlet pipe: DN15
    • Diameter of outlet pipe: DN15
    • Water Pressure: 0.05Mpa - 0.7Mpa
    • Power and Voltage: DC.6V AC.220V - 50/60Hz
    • Power Consumption: 0.5MW <2W
    • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
    • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °
    • Degree of protection by enclosure: 1P56

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more

White Sensor Faucet

  1. Infrared sensor operated, touch-free operation
  2. Advanced energy saving design for long lasting battery life
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Sensing distance adjusted automatically
  6. Long life durable body
  7. Advanced circuit design saves electricity and water
  8. Battery: 4 x 'AA' size cells
  9. Operational water pressure range: 0.05 - 0.6MPa
  10. US standard water supply pipe size: DN15 (G1/2")
  11. Ambient temperature range: 0.1 - 45ºC
  12. Sensing distance: 25cm
  13. Time delay: 0.5 seconds
  14. Operation duration: power will automatically cut off after continuous use for 60 seconds
  15. Pop-up drain: No
  16. Color: White Finish

Sensor Tap Advantage:

  1. Conserves water
  2. Saves energy during water heating process
  3. Hygienic, no-touch activation
  4. Easy installation
  5. Durable, solid all-brass construction
  6. Built-in filter
  7. ADA complaint Ideal for use by disabled people
  8. Vandal resistant
  9. Waterproof Components
BST617 TOUCHLESS LINE

BST617™
Technical FAQs

Commercial touchless faucet with solid-brass construction, infrared AI sensing, adjustable detection, AC/DC power, and vandal-resistant electronic control.

✥ Sensor Calibration Procedure? +
Complete sensor commissioning after the basin and surrounding surfaces are installed. The microprocessor can automatically optimize the detection field for different basin colors and geometries, while the sensing distance can also be adjusted.
◇ Detection Range Setting? +
The commercial infrared system is designed for adjustable hands-free detection. The product documentation lists a 2 to 6 inch sensing range and also references factory calibration based on the installed lavatory environment.
◯ Flow Rate Verification? +
The standard aerator is rated at approximately 2.2 GPM. During commissioning, verify uniform discharge and inspect the aerator and inlet strainer if flow becomes restricted or irregular.
↻ Automatic Shutoff Timing? +
The sensor valve includes automatic shutoff protection, with approximately a 2-second shutoff delay and a 60-second maximum continuous operating period for anti-vandal and unattended-flow protection.
⌁ Operating Water Pressure? +
The product documentation specifies commercial operating pressure up to approximately 100–125 PSI depending on configuration. Confirm stable dynamic pressure and regulate excessive inlet pressure where required.
⌂ Water Supply Connection? +
The faucet uses a standard 1/2-inch supply connection with DN15 plumbing compatibility. Flush the supply piping before final connection and inspect the internal strainer before commissioning.
⚡ Power Supply Options? +
The electronic sensor system supports AC/DC operation and can also operate from four AA alkaline batteries. Verify the selected power configuration and solenoid connection before activating the sensor.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor window and aerator, inspect the built-in inlet strainer, verify battery condition, and confirm reliable solenoid shutoff during scheduled commercial maintenance.

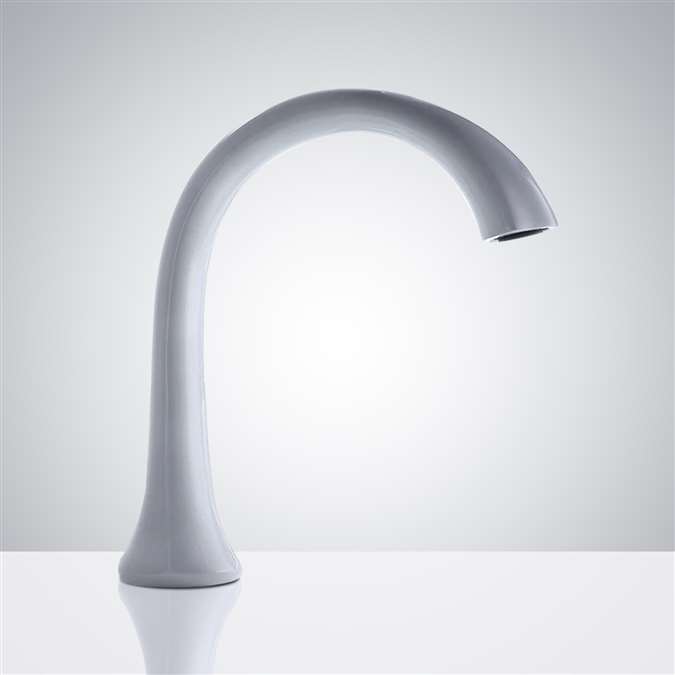

BathSelect BST617 White Commercial Touchless Sensor Faucet
White
♧
2.2 GPM Standard Aerator
◇
Solid Brass Vandal Resistant
⌁
Infrared AI Smart Detection
⚙
1/2" Supply DN15 Compatible
⚡
AC / DC Dual Power

Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 5 Write a review.

  1 of 1 people found the following review helpful:

3 of 5 Operational Pressure Lifted May 25, 2026
Reviewer: Logan Montgomery, Analyst from Salem, OR
Managing several educational buildings means restroom reliability directly affects daily operations. Since installing these faucets, building supervisors spend far less time responding to fixture concerns, allowing maintenance resources to be redirected toward planned campus improvements.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

4 of 5 Sensor Reliability May 2, 2026
Reviewer: Victoria Harper, Systems Consultant from Portland, OR
Following several healthcare restroom retrofit projects where older white-finish sensor faucets repeatedly developed staining and unstable infrared timing, we upgraded multiple facilities to the White Touchless Faucet between 2021 and 2024.The faucet maintained highly reliable touchless responsiveness during continuous daily operation, while the white finish resisted discoloration and chemical-cleaning exposure significantly better than previous commercial fixtures installed in similar environments. Water delivery also remained controlled without irregular stream dispersion.A technical benefit became especially noticeable during extended operation: the sensor maintained stable activation performance under varying restroom lighting conditions and reflective surfaces where earlier white-finish faucets frequently required recalibration.

Was this review helpful to you?

  4 of 4 people found the following review helpful:

5 of 5 White Sensor Value February 27, 2026
Reviewer: Olivia Bennett from Phoenix, AZ
BathSelect White Finish Commercial Touchless Motion Sensor Faucet fit well into a hospitality restroom refresh because the project needed a touchless fixture that looked deliberate and performed consistently. The white finish gives the installation a more premium presence, and the sensor response feels quick and controlled at the sink. It supports a more reliable hands-free wash station without making the space feel overly technical. It brings a cleaner user experience with less daily intervention from staff.

Was this review helpful to you?

  5 of 5 people found the following review helpful:

5 of 5 Responsive Sensor System February 19, 2026
Reviewer: Wyatt Price from Salt Lake City, Utah
In a controlled facility test, the system showed strong consistency and responsiveness. The BathSelect White Sensor Value (Model BST617-W) delivered stable results.

As a healthcare planner, I focused heavily on sensor accuracy and long-term durability. This unit uses a well-tuned infrared system that avoids false activation while maintaining quick response. The deck-mounted configuration is executed with solid brass construction, giving it structural reliability even in high-use environments.

Support documentation and response time from BathSelect were strong and practical. Overall, the unit meets commercial expectations for reliability, hygiene, and lifecycle performance.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

4 of 5 Everything just good April 13, 2022
Reviewer: Nida from Michigan
Heavy duty faucet with a good sensor. We own a restaurant business and it is very useful and functional faucet for us. Highly recommended for commercial use.

Was this review helpful to you?
