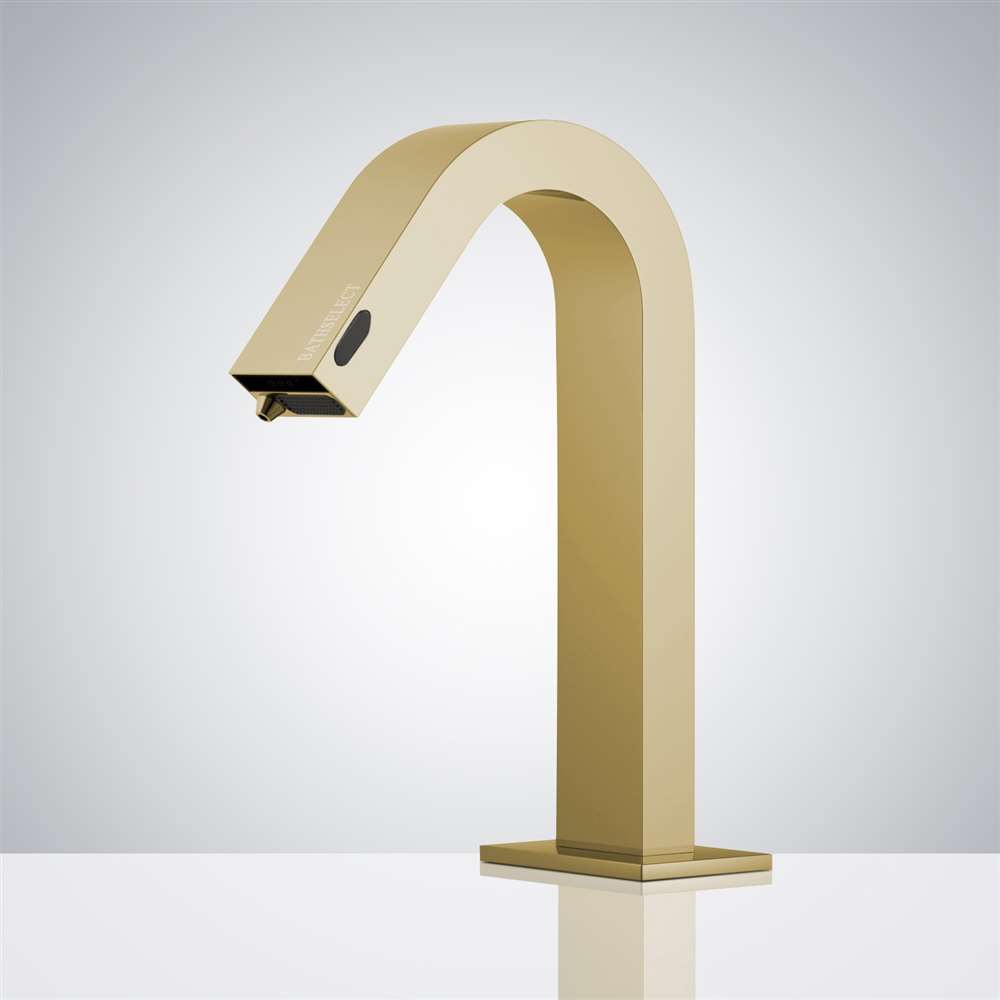

BathSelect Dual Function Automatic Deck Mount Brushed Gold Sensor Water Faucet and Soap Dispenser

BathSelect Dual Function Automatic Deck Mount Brushed Gold Sensor Water Faucet and Soap Dispenser
Alternative Views:

Retail Price: $1,291.96
Sale Price: $1,160.58
You save $131.38!

Price with Selected Options: $1,160.58

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS10012-BG

Hot & Cold Option:

Description Technical Specs Extended Technical Information

BathSelect Dual Function Automatic Deck Mount Brushed Gold Sensor Water Faucet and Soap Dispenser

Plato Automatic Commercial Sensor Faucet D514 (Available in Oil Rubbed Bronze Finish)

  • Sensor faucet and soap dispenser complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Solid Brass Material, Long Life Durable Body, Brushed Gold Finish
  • Installation made easy with simplified instructions
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Comes complete with Hoses & Accessories
  • Time Delay: 0.5 seconds
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, hospitals. Fits all US standard plumbing.

Fits all standard faucets. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup)Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Comes Complete for easy installation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of a lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 F
  • Degree of protection by enclosure: 1P56

BathSelect Dual Function Automatic Deck Mount Brushed Gold Sensor Water Faucet and Soap Dispenser

  1. Water-efficient,
  2. Hygienic,
  3. No-touch activation,
  4. Easy installation Durable,
  5. Solid DR-brass construction,
  6. Built-in filter,
  7. ADA compliant,
  8. Vandal-resistant,
  9. Waterproof components,
  10. Complies with Food Premises Standard

Faucet Specification

  1. Body: Solid brass with Brushed Gold
  2. Power: i>DC AA Alkaline Battery*4, ii>AC/DC alternately
  3. Working pressure: 0.5~7Bar
  4. Water supply pipe size: DN15 (G1/2")
  5. Ambient Tem. Range: 0.1~ 55 Celsius
  6. Sensing distance: adjustable 25cm (default 25cm)
  7. Sensing range setup: Digital
  8. Response time: 0.3 sec (default)
  9. Off Delay time: 1 sec (default)
  10. Pop-up drain: yes
  11. Fresh Battery Life Cycle: 500,000 on/off
  12. Low Battery Indicator: Red Led flash
  13. Weakness of Battery: Red Led on,
  14. Usage: Commercial
