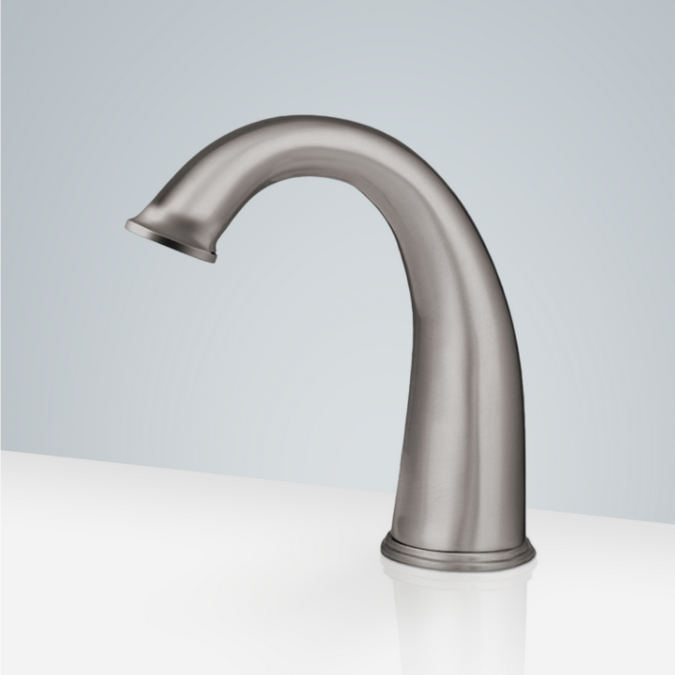

Marsala Brushed Nickel Infrared Automatic Electronic Commercial Faucet
Bathroom automatic sensor motion faucets Bravat

Alternative Views:
Retail Price: $748.47
Sale Price: $695.87
You save $52.60!

Price with Selected Options: $695.87





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-1096BM-SF


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Brushed Gold

Dark Oil Rubbed Bronze

Light Oil Rubbed Bronze

Marsala Brushed Nickel Infrared Automatic Electronic Commercial Faucet

Bravat Oil Rubbed Bronze Commercial Automatic Motion Sensor Faucets

The Bavaria Brushed Gold Infrared Automatic Electronic Commercial Faucet

Improve hand washing compliance, and minimize waste of water, by using BathSelect touchless bathroom automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. BathSelect touchless faucet comes with AC/DC option (hardwired and battery backup) Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing. Commercial Automatic Sensor Faucet; Built with consistent activation, anti-splash flow, and long service life.
  • Sensor faucet complete motion detection operation.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Brushed Nickel
  • Installation made easy with simplified instructions
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high traffic use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Complaint
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V AC.220V - 50/60Hz
  • Power Consumption: 0.5MW <2W
  • Detection Zone: Factory sets 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56



Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more
MARSALA SENSOR LINE

Marsala™
Technical FAQs

Commercial infrared touchless faucet with solid brass construction, adjustable sensing, AC/DC power and four coordinated finish options.

✥ Sensor Calibration Procedure? +
Complete sensor commissioning after the basin, countertop and surrounding surfaces are installed. The factory sensing position is approximately 4 to 5 inches and may be adjusted to suit the final lavatory geometry.
◇ Hydraulic Checks During Installation? +
Flush the supply piping before final connection, confirm the 1/2-inch NPT inlet is secure and inspect the built-in strainer and 50-mesh particle filtration for debris before commissioning the valve assembly.
◯ Flow Rate Verification? +
The standard mesh aerator is specified at approximately 2.2 GPM. If output becomes restricted, inspect the aerator, filtration system, inlet pressure and supply connections.
↻ Continuous Water Flow Diagnostics? +
Clean the infrared sensing area, remove reflective objects from the detection field and inspect the 6-volt magnet-latching solenoid for debris or incomplete seating. Maximum continuous operation is approximately 60 seconds.
⌁ Sensor Detection Range? +
The active infrared sensor uses digital microprocessor control with an adjustable sensing range of approximately 2 to 6 inches. The factory reference is also listed at approximately 25 cm under standard inductive-board conditions.
⌂ Operating Water Pressure? +
BathSelect lists approximately 10 to 125 PSI in the primary specifications, while the extended technical data identifies approximately 1 to 100 PSI working pressure.
⚡ Power Supply Options? +
The Marsala faucet supports AC and DC operation. Product documentation lists AC110V and DC6V capability together with four AA alkaline batteries or an AC adapter.
⌕ Routine Maintenance Requirements? +
Periodically clean the infrared sensor and aerator, inspect the built-in strainer and 50-mesh filter, remove mineral buildup and verify reliable solenoid opening and complete automatic shutoff.
Marsala Brushed Nickel Infrared Automatic Electronic Commercial Faucet
Brushed Nickel
♧
2.2 GPM Standard Aerator
◇
Solid Brass Commercial Construction
⌁
2–6 Inches Adjustable Sensor
⚙
AC / DC Dual Power Option
◇
250K Cycles Battery Expectancy

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 4 Write a review.

  1 of 1 people found the following review helpful:

5 of 5 Repair Cycles Broken Sunday, July 19, 2026
Reviewer: Nolan Holloway, Consultant from Columbia, MO
Our property management team noticed the same restroom fixtures repeatedly appearing on monthly maintenance reports before this renovation. Since these faucets entered service, that repair cycle has been broken, giving technicians more time to complete planned maintenance across the rest of the building.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

4 of 5 Internal valve assembly Sunday, May 3, 2026
Reviewer: Daniel Mercer, Systems Advisor from Charlotte, NC
Across several healthcare and airport restroom modernization projects completed between 2022 and 2024, previous brushed nickel faucets repeatedly suffered from unstable shutoff timing and inconsistent sensor responsiveness under continuous public usage. The Marsala Nickel Faucet provided a far more stable long-term operating profile after installation. Its infrared sensing system maintained highly accurate activation during rapid repeated operation, while the brushed nickel finish resisted corrosion and maintenance-related surface wear substantially better than earlier decorative fixtures. Water delivery also remained smooth and balanced without irregular stream interruption. A technical advantage became especially apparent during maintenance inspections: the internal valve assembly maintained highly predictable flow regulation despite fluctuations in inlet pressure and basin depth configurations, improving consistency across multiple installations.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Great built and high quality Wednesday, February 8, 2023
Reviewer: Simon from Alabama
Was looking for this brushed nickel finish from a long time . It looks very pretty and works well too. The faucet shape is making it look more attractive.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

5 of 5 Great built and high quality Saturday, February 11, 2017
Reviewer: Albert from Arizona
In practical use, this fixture showed stable and reliable operation. The BathSelect Great built and high quality (Model BS-1096BM-SF) demonstrated consistent sensor activation and controlled water flow. The solid brass construction supports durability, while the finish maintains its appearance under frequent use.

Installation was straightforward with standard connections, and the internal components allow for easy maintenance access. The sensor response is well-balanced, avoiding false triggers while ensuring user convenience.

BathSelect’s support team provided clear technical guidance during setup and helped streamline the process. Overall, the fixture meets commercial expectations for reliability, hygiene, and long-term performance.

Was this review helpful to you?
