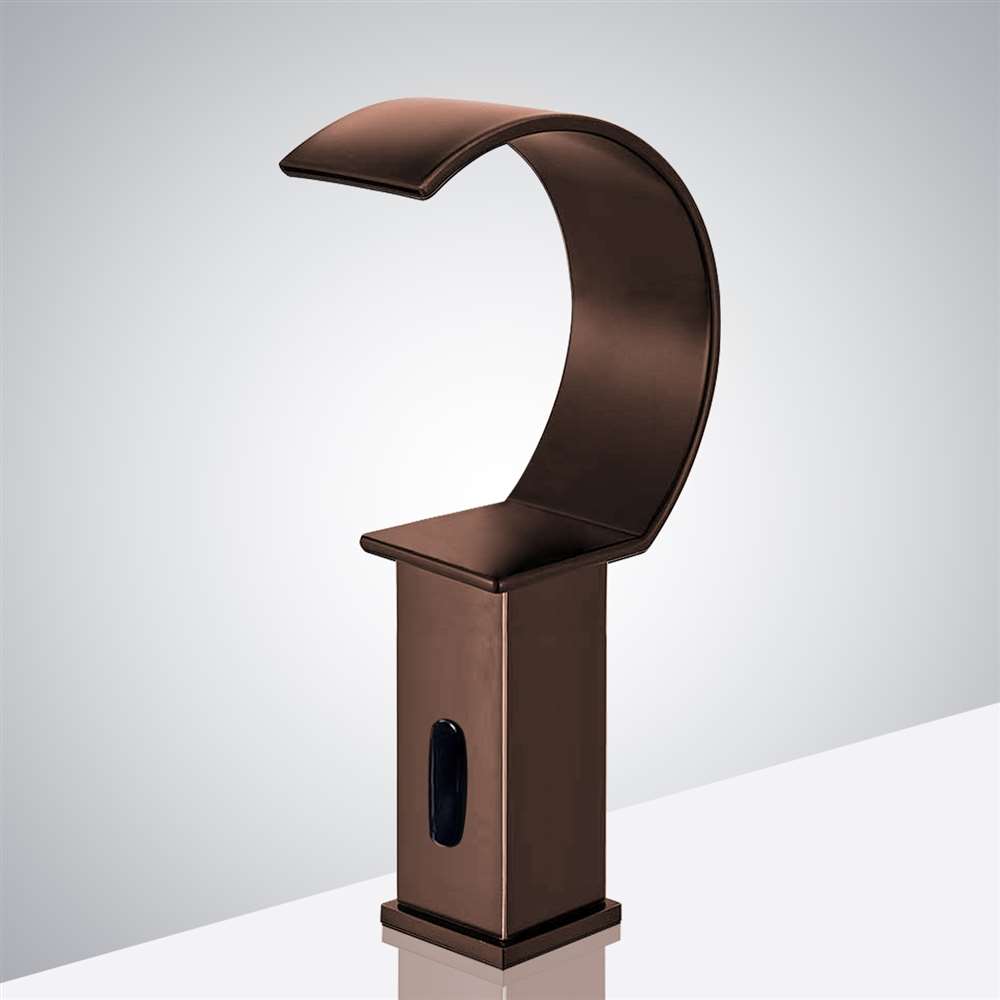

BathSelect Light Oil Rubbed Bronze Commercial Waterfall Style Motion Sensor Faucet
Fontana Light Oil Rubbed Bronze Commercial Waterfall Style Motion Sensor Faucet

Alternative Views:
Retail Price $724.44
Sale Price: $665.55
You save $58.89!

Price with Selected Options: $665.55





Free Shipping
Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-LB8736


Hot & Cold Option:

Qty:
Description Technical Specs Extended Technical Information


Chrome

Oil Rubbed Bronze

Brushed Gold

Gold

Brushed Nickel

Matte Black

Fontana Light Oil Rubbed Bronze Commercial Waterfall Motion Sensor Faucet Details:

  • Type: Basin Faucet
  • Model Number: BS-LB8736
  • Surface Finish: Light Oil Rubbed Bronze
  • Feature: Electronic motion Faucet
  • Surface Treatment: Light Oil Rubbed Bronze
  • Faucet Mount: Single Hole
  • Style: Contemporary
  • Valve Core Material: Ceramic
  • Material: Copper 59-60%, Automatic Basin mixer
  • Faucet Type: Automatic Basin mixer
  • Certification: ISO9001:2000;CE&ROHS
  • Faucet Style: Waterfall sensor faucet

Key Features

  • Faucet Type: Sensor Faucet
  • Installation Type: Deck Mount
  • Installation Hole: One Hole
  • Number of Handle: Hands Free Sensor Faucet
  • Finish: Light Oil Rubbed Bronze
  • Style: Contemporary
  • Flow Rate: 1.8 GPM (6.81 L/min)
  • Faucet center: Single Hole
  • Faucet Body Material: Brass
  • Touchless operation; specifically designed for optimal performance in various commercial use applications, making it ideal for public restrooms, restaurants, office buildings, public facilities and hospitals. Fits all standard US plumbing.
  • Product Name: Fontana Light Oil Rubbed Bronze Waterfall Bathroom Sensor Faucet Automatic Basin Mixer Tap
  • Material: solid brass:57-60%
  • Voltage: DC 6V (4AA alkaline batteries);AC power
  • Surface Treatment: Chrome Other plating: antique copper, antique bronze, gold, Light Oil Rubbed Bronze, Painting colors, etc. Please call us to know the availability of all these colors.
  • Power Consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
  • Sensor Range Adjustable: (4.72"-7.08") 12 - 18cm adjustable distance according to requirements
  • Flush Time: when your hands reached the sensor zone, the water will come out automatically, when your hands draw back the sensor zone, the water will close.
  • Hot&Cold water temperature control: Cold only
  • Inlet and outlet pipe dia: G1/2"
  • Water Pressure: 0.05-0.8Mpa
  • Life Test: 500,000 cycles
  • Certificate: RoHS, ACS, CE, ISO9000, CUPC, WaterMark

BathSelect Oil Rubbed Bronze Commercial Waterfall Style Motion Sensor Faucet

Features


We're available to provide assistance and support for your inquiries!

Featured

categories
Touchless Combo
View more
Touchless Faucets
View more
Touchless Dispensers
View more
FONTANA WATERFALL SENSOR LINE

Waterfall Sensor™
Technical FAQs

Commercial waterfall touchless faucet with solid brass construction, adjustable infrared sensing, AC/DC power, 1.8 GPM sheet-flow delivery and commercial-grade valve control.

✥ How Should the Sensor Range Be Commissioned? +
The infrared sensing distance is adjustable from approximately 12 to 18 cm. Complete final commissioning after the basin, countertop and surrounding reflective surfaces are installed, then set the detection field for reliable hand activation without unintended triggering.
◇ How Does the Waterfall Outlet Control Flow? +
The wide waterfall outlet distributes the approximately 1.8 GPM discharge into a broad sheet rather than a narrow aerated stream. Correct basin positioning and stable inlet pressure help maintain even flow while reducing excessive splash around the washing zone.
◯ What Water Pressure Range Is Supported? +
BathSelect specifies approximately 0.05 to 0.8 MPa operating pressure. Flush the supply before final connection and confirm stable dynamic pressure at the G1/2 inlet before commissioning the electronic valve and waterfall outlet.
↻ How Does Automatic Water Shutoff Work? +
When hands enter the programmed infrared detection zone, the electronic controller opens the valve automatically. Once the user's hands leave the sensing field, the valve closes automatically to limit unnecessary water use and support hygienic hands-free operation.
⌁ What Is the Rated Commercial Flow? +
The waterfall sensor faucet is rated at approximately 1.8 GPM or 6.81 L/min. If the sheet becomes uneven, inspect inlet pressure, supply restrictions and the waterfall outlet for mineral buildup or debris before adjusting the sensor system.
⌂ What Is the Expected Valve Service Life? +
BathSelect specifies a life test of approximately 500,000 operating cycles. Long-term reliability depends on stable supply pressure, clean waterways, correct electrical power and regular inspection of the electronic valve and waterfall outlet.
⚡ Which Power Configurations Are Supported? +
The faucet supports DC6V operation using four AA alkaline batteries as well as AC power. BathSelect lists extremely low standby consumption, with battery service life dependent on traffic frequency and operating conditions.
⌕ What Should Routine Maintenance Include? +
Clean the infrared sensor window and waterfall outlet, inspect G1/2 supply connections, verify battery or AC power condition and confirm consistent valve shutoff. Remove mineral deposits carefully so the broad sheet-flow geometry remains uniform.
Fontana Light Oil Rubbed Bronze Commercial Waterfall Sensor Faucet
Light Oil Rubbed Bronze
♧
1.8 GPM Waterfall Flow
⌁
12–18 cm Adjustable Detection
⚡
AC / DC Flexible Power
◇
Solid Brass Commercial Construction
⚙
500K Cycles Life Tested
