How does the waterfall outlet differ hydraulically from a conventional aerated spout?

The open-channel outlet forms a broad sheet of water with limited aeration, requiring controlled inlet flow and precise basin alignment to maintain a uniform cascade.

Why is basin geometry especially important for a commercial waterfall faucet?

Basin depth, drain position, rear-wall slope, and faucet projection determine how effectively the wide discharge is captured without splash escaping onto the countertop or floor.

How should the waterfall channel be protected during supply-line flushing?

Construction debris should be flushed from the plumbing before final outlet operation because sediment can collect inside the open channel and distort the width or uniformity of the water sheet.

Why should flow uniformity be inspected across the full waterfall edge?

An uneven cascade can indicate mineral deposits, debris, improper leveling, insufficient supply flow, or internal restrictions that require correction before the faucet enters service.

How does commercial activation frequency affect valve and outlet maintenance?

Frequent operation accelerates wear and mineral accumulation, making routine inspection of the control valve, inlet screens, outlet channel, mounting hardware, and supply connections essential.

Why must the faucet body be installed level on the mounting deck?

A level body allows water to distribute evenly across the waterfall lip, prevents one-sided discharge, and maintains consistent visual and hydraulic performance.

What cleaning procedure preserves the gold finish and waterfall outlet?

Clean exposed surfaces with a soft cloth and pH-neutral solution, remove outlet scale using finish-compatible methods, and avoid abrasive tools or acidic chemicals that could damage the coating.

Which commissioning procedures verify complete BS-G8736 commercial faucet performance?

Commissioning should verify secure mounting, level outlet alignment, supply flushing, valve response, uniform waterfall discharge, basin splash control, leak-free connections, complete shutoff, service accessibility, and finish integrity.

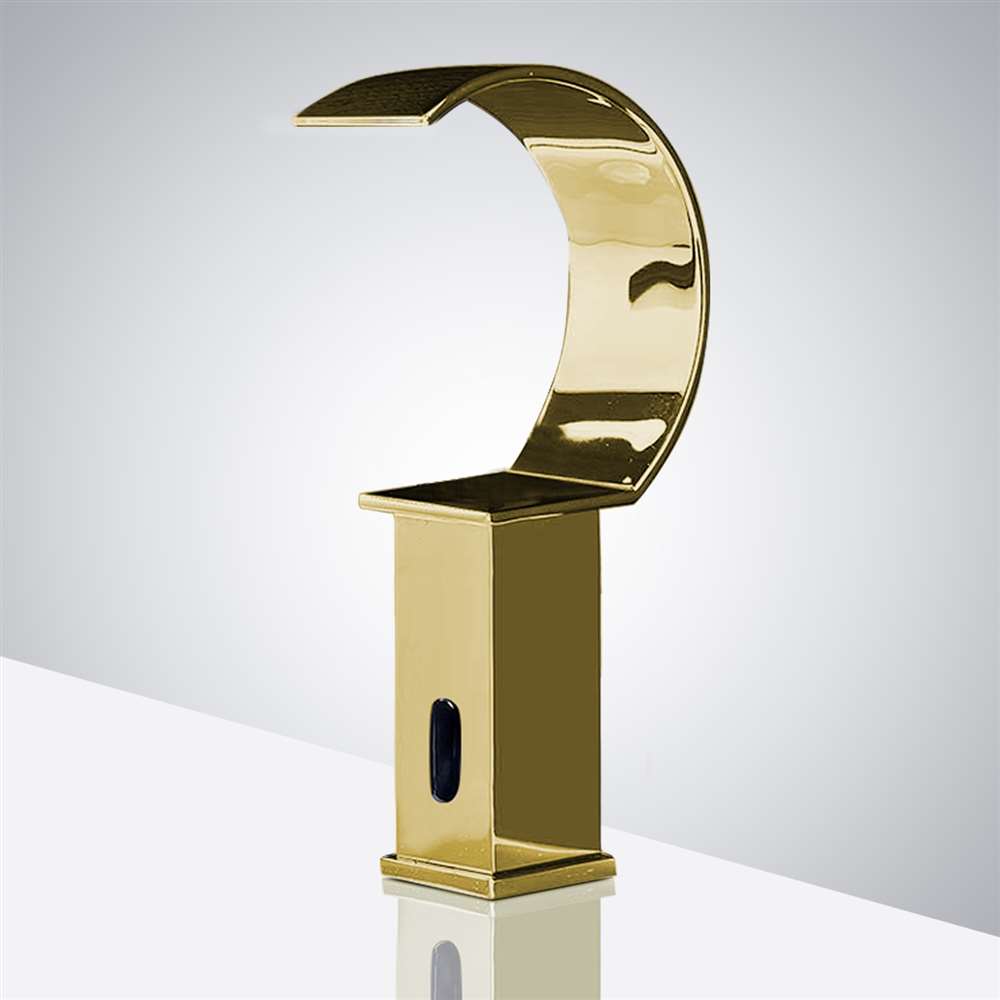

BathSelect Gold Commercial Waterfall Style Motion Sensor Faucet

Fontana Gold Commercial Waterfall Style Motion Sensor Faucet

Alternative Views:

Retail Price $878.46

Sale Price: $820.48

You save $57.98!

Price with Selected Options: $820.48

Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-G8736

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Technical Information

Chrome

Oil Rubbed Bronze

Brushed Gold

Brushed Nickel

Light Oil Rubbed Bronze

Matte Black

Fontana Gold Commercial Waterfall Motion Sensor Faucet Details:

Type: Basin Faucet
Model Number: BS-G8736
Surface Finish: Gold
Feature: Electronic motion Faucet
Surface Treatment: Gold
Faucet Mount: Single Hole
Style: Contemporary
Valve Core Material: Ceramic
Material: Copper 59-60%, Automatic Basin mixer
Faucet Type: Automatic Basin mixer
Certification: ISO9001:2000;CE&ROHS
Faucet Style: Waterfall sensor faucet

Key Features

Faucet Type: Sensor Faucet
Installation Type: Deck Mount
Installation Hole: One Hole
Number of Handle: Hands Free Sensor Faucet
Finish: Gold
Style: Contemporary
Flow Rate: 1.8 GPM (6.81 L/min)
Faucet center: Single Hole
Faucet Body Material: Brass
Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, hospitals. Fits all standard US plumbing.

Product Name: Fontana Gold Waterfall Bathroom Sensor Faucet Automatic Basin Mixer Tap
Material: solid brass:57-60%
Voltage: DC 6V (4AA alkaline batteries);AC power
Surface Treatment: Chrome Other plating:antique copper, antique bronze, gold, Gold, Painting colors etc. Please call us to know availability of all these colors.
Power Consumption: ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
Sensor Range Adjustable: (4.72"-7.08") 12 - 18cm adjustable distance according to requirements
Flush Time: when your hands reached to the sensor zone,the water will come out automatically,when your hands draw back the sensor zone,the water will closed.
Hot&Cold water temperature control: Cold only
Inlet and outlet pipe dia: G1/2"
Water Pressure: 0.05-0.8Mpa
Life Test: 500,000 cycles
Certificate: RoHS, ACS, CE, ISO9000, CUPC, WaterMark

Features

We're available to provide assistance and support for your inquiries!

Featured

Gold Surface Protection, Waterfall Sheet Hydraulics & Infrared Activation Control

This gold commercial waterfall sensor faucet combines touchless infrared activation, brass waterway construction, and controlled sheet-flow discharge to provide hygienic operation and stable basin performance in high-use restroom environments.

How does the waterfall outlet maintain a smooth sheet of water?

The wide outlet lip spreads water evenly across the spout width, creating a stable laminar sheet while reducing turbulence and splash.

Why is infrared activation useful in commercial waterfall faucets?

The sensor opens the valve only after detecting hand presence, reducing surface contact while limiting unnecessary water discharge.

How does the gold finish support long-term surface durability?

The protective coating helps resist oxidation, fingerprints, water spotting, and routine cleaning exposure in commercial restrooms.

How does brass construction improve hydraulic consistency?

Brass waterways maintain stable internal dimensions under pressure, supporting consistent waterfall flow across repeated activation cycles.

Average Customer Review: Average Customer Review: 2 of 5

2 of 5 Total Reviews: 2 Write a review.

1 of 1 people found the following review helpful:

Frustration Became Minor	July 28, 2026
Reviewer: Anthony Wilkins from Newark, NJ

No tracking information arrived when expected, and my first request for an update didn't receive a useful response. I eventually got the shipment details, but communication could certainly improve. The gold commercial faucet itself looks excellent. Its waterfall outlet gives the wash area a distinctive feature, while the gold treatment makes the fixture feel much more design-oriented than typical commercial restroom hardware.

Was this review helpful to you?

1 of 1 people found the following review helpful:

Rough Yet Worthwhile	November 8, 2005
Reviewer: Bradley Porter from Helena, MT

Tracking showed up after I had already started wondering what happened to the order. Not disastrous, just unnecessarily vague. We installed the faucet in a client-facing restroom and the reaction has been surprisingly positive. The gold finish gets noticed immediately, while the waterfall flow keeps it from looking like every other automatic commercial faucet. The product has considerably more personality than the shipping process did.

Was this review helpful to you?
