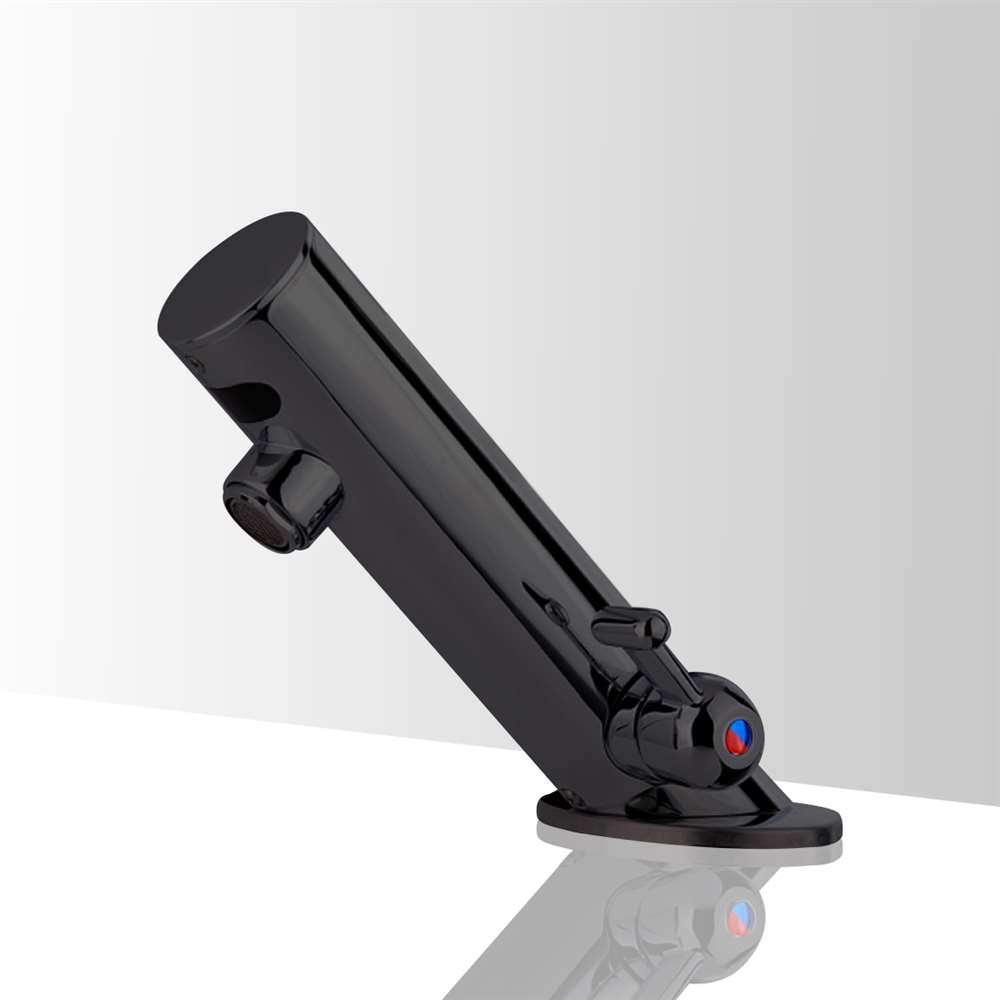

Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish

Leo Solid Brass Commercial Motion Automatic Sensor Faucet

Alternative Views:


Retail Price: $421.00
Sale Price: $381.00
You save $40.00!

Price with Selected Options: $381.00


Availability: Ships In 24 Hours
Product Code: B5132RB

Click to view another Add Matching Soap Dispenser

Add Matching Soap Dispenser:


Qty:
Description Technical Specs Extended Technical Information


Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish

Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish

Leo Oil Rubbed Bronze Commercial Automatic Sensor Faucet with built-in Mixing Valve (Hot & Cold)

Leo Thermostatic Sensor Faucet Product Description

Automatic Faucet with Integral Water Mixing Valve, Chrome Finish

Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding,while mixing the water at the desirable temperature at the point of use.

The Leo BST5132 lavatory faucet features an integrated above counter mixer built into the faucet body, an 2-8 inch sensor range, and built in brass solenoid. Maintenance of the BSTHD5132 is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.

This contemporary angel spout single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms and other public commercial lavatories.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

  • Durable solid-brass construction; expertly crafted
  • Motion detection touchless sensor faucet operation
  • Drip Free Ceramic Disc Cartridge for Smooth and Long Lasting Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Dark Oil Rubbed Bronze Finish
  • The Oil Rubbed Bronze Finish will not corrode or fade it combines durability with Beauty
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Stainless Steel Hoses Included
  • Easily can be installed in new or retrofit applications.
  • Suitable Places: family bathroom, hotels, office buildings, airports, medical institutions and public restrooms
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

All Parts in one perfect product;

Ceramic Cartridge;

Built-in check valve;

Sensor control;


Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!

Sensor Faucet finish is Dark Oil Rubbed Bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

sensor-faucet-installations-drawingsLeo all-in-one Thermostatic Sensor Faucet Dark ORB FinishLeo all-in-one Thermostatic Sensor Faucet Dark ORB Finish

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Diameter of inlet pipe DN15
Diameter of outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power DC.6V
Flow Rate 0.5 GPM (1.9 L/min)
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 ° F
Degree of protection by enclosure 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for High Traffic Commercial and Residential Applications.

Leo all-in-one Thermostatic Sensor Faucet Dark ORB Finish Leo all-in-one Thermostatic Sensor Faucet Dark ORB Finish
  • Specifications: Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Holes Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation
BathSelect® Manufacturer Warranty Information
Leo all-in-one Thermostatic Commercial Automatic Sensor Faucet Dark Oil Rubbed Bronze Finish Installation Instructions
Features
Detailed Product Description:Thermostatic Sensor mixer Faucet All-in-one B5132
  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature.
  • The Oil Rubbed Bronze finish will not fade, tarnish or corrode for the lifetime of the faucet.
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
