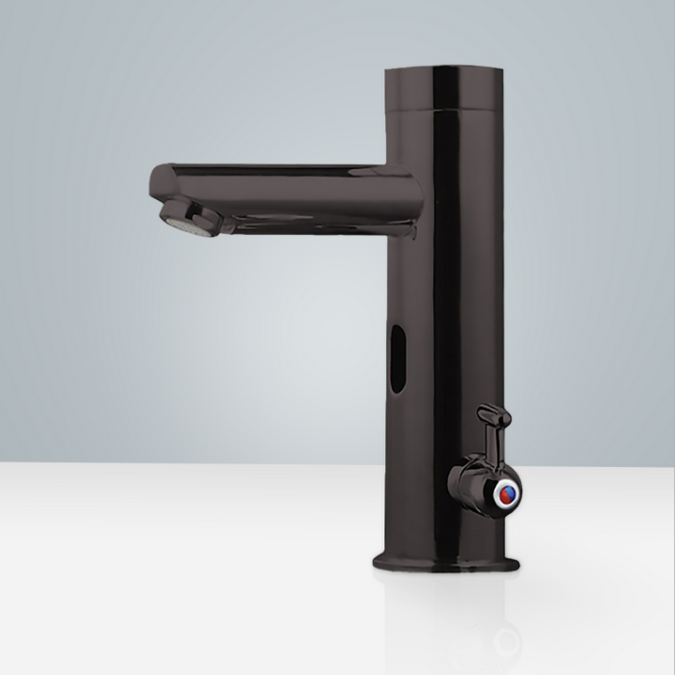

BathSelect All-in-one Thermostatic Automatic Commercial Sensor Faucet B5125 Dark Oil Rubbed Bronze Finish

Temperature Control Solid Brass Sensor Faucet

Alternative Views:


Retail Price: $686.40
Sale Price: $617.34
You save $69.06!

Price with Selected Options: $617.34





Availability: Usually Ships in 5 to 10 Business Days
Product Code: BS-5125DORB


Hot & Cold Option:


Qty:
Description Technical Specs Extended Technical Information


BathSelect All-in-one Thermostatic Automatic Commercial Sensor Faucet B5125 Dark Oil Rubbed Bronze Finish

BathSelect All-in-one Thermostatic Automatic Commercial Sensor Faucet B5125 Available in Chrome Finish or Oil Rubbed Bronze Finish

  • Motion sensor touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Dark Oil Rubbed Bronze Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply : AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Fit for commercial use applications.
  • Can be installed in new or retrofit applications.
  • Usage: Commercial
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

All Parts in one perfect product;

Ceramic Cartridge;

Built-in check valve;

Sensor control;

These contemporary single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms, and other public commercial lavatories.

Intelligent with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory!

Sensor Faucet finish is dark oil rubbed bronze, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.

Built-in check valveAll Parts in one perfect productJuno All-in-oneThermostatic Sensor Faucet B5125 Available in Chrome Finish or Oil Rubbed Bronze Finish - Built-in check valve


Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing and eliminating unnecessary, unattended water flow.

Sensor Activated Faucet Special Features :

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer, to prevent sundries from entering the solenoid valve and the strainer is easy to clean.
  • The faucet can be mounted to any sink surface.
  • ADA Compliant; commercial sensor faucets.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
  • Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial Applications.

  • Overall Height: 7" (measured from the countertop to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from countertop to the spout outlet) Spout Reach: 4" (measured from the center of the faucet base to the center of the spout outlet)
  • Mounting Type: Single hole
  • Number of Holes Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation with temperature control.

BathSelect® Manufacturer Warranty Information BathSelect Product Warranty
Installation Instructions for Thermostatic Automatic Commercial Sensor Faucet
Features

Juno All-in-oneThermostatic Sensor Faucet B5125

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature also available
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
  • Usage: Commercial
