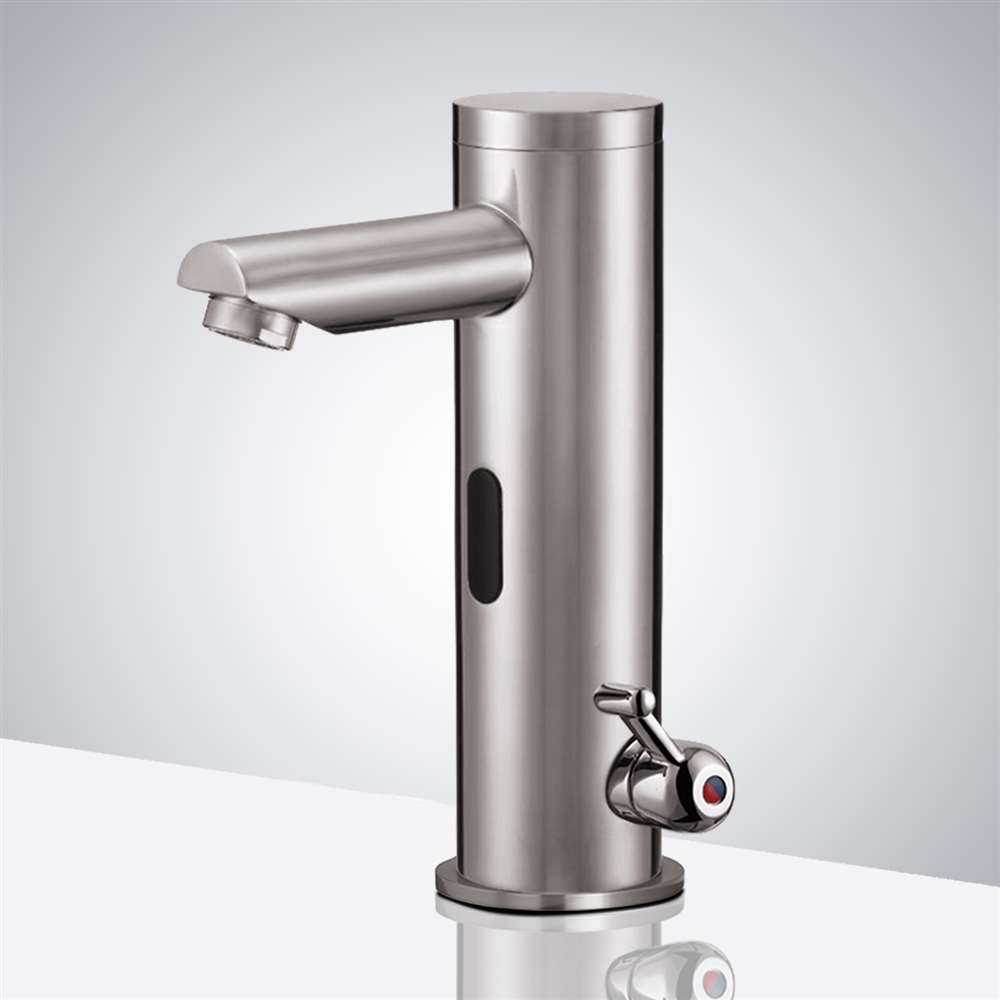

BathSelect All-in-one Thermostatic Automatic Commercial Brushed Nickel Sensor Faucet Available in Chrome Finish or Oil Rubbed Bronze Finish

Temperature Control Solid Brass Brushed Nickel Sensor Faucet

Alternative Views:


Retail Price: $478.00
Sale Price: $463.58





Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5125D-BN
Qty:

Description Technical Specs Extended Technical Information


Juno Automatic Commercial Temperature Control Motion Brushed Nickel Sensor Faucet with built-in Mixing Valve

BathSelect All-in-one Thermostatic Automatic Commercial Sensor Faucet B5125 Available in Chrome Finish or Oil Rubbed Bronze Finish

Available in Chrome Finish or Oil Rubbed Bronze Finish

Juno Temperature Control Commercial Motion Brushed Nickel Sensor Faucet Product Description

Thermostatic technology that controls the temperature fluctuations at the outlet, preventing scalding,while mixing the water at the desirable temperature at the point of use.

The B5125D-BN lavatory faucet features an integrated above counter mixer built into the faucet body, at 2-8 inch sensor range, and built in brass solenoid. Maintenance of the B5125D-BN is simple and can be performed in minimal time. The faucet is equipped with a sensor override and a 60-second time out feature to prevent floods. The Fontana® faucet line is certified to meet ASME A112.18.1/CSA B125.1.Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

  • Motion sensor touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure : 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Brushed Nickel Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply : AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Fit for residential or commercial use applications.
  • Easily can be installed in new or retrofit applications.
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

All Parts in one perfect product;

Ceramic Cartridge;

Built-in check valve;

Sensor control;


This contemporary single post AC/DC operated faucets provide facilities with ultimate reliability and easy maintenance. Perfect for hotels, private washrooms and other public commercial lavatories.

Intelligent with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!

Sensor Faucet finish is brushed nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

Built-in check valveAll Parts in one perfect productJuno All-in-oneThermostatic Sensor Faucet B5125 Available in Chrome Finish or Oil Rubbed Bronze Finish - Built-in check valve
BathSelect All-in-one Thermostatic Automatic Commercial Sensor Faucet B5125 Available in Chrome Finish or Oil Rubbed Bronze Finish
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features :

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent : with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean.
  • Faucet can be mount to any sink surface.
  • ADA Compliant; commercial sensor faucets.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power: DC.6V
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56

Heavy Duty Lavatory Automatic Sensor Faucet, Solid Brass, Generally Suitable for

Heavy/Medium Traffic Commercial and Residential Applications.

  • Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet) Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Holes Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation with temperature control.

BathSelect® Manufacturer Warranty Information BathSelect Product Warranty
Installation Instructions for Thermostatic Automatic Commercial Sensor Faucet B5125 Available in Chrome Finish
Features

Juno All-in-oneThermostatic Sensor Faucet B5125

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations atthe outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enoughcoldand hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature also available
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
  • Usage: Commercial / Residential
