Installation Instructions for Oil Rubbed Bronze and Gold Bathroom Shower Set
Avignon Solid Brass Luxurious Exposed Oil Rubbed Bronze and Gold Bathroom Shower Set
Our Avignon bathroom shower set offers a combination of luxury and comfort. The oil rubbed bronze and gold finish will make it proudly stand out among other fixtures in any modern bathroom. It has both a rain shower and a hand held shower, so it will fit all your needs. Only the best quality materials have been used – the body is made of solid brass, while the valve core material is ceramic, for long-lasting use. It comes complete with accessories and installation instructions. The handheld shower is just as great, with solid water pressure and well-designed grip for better handling. If you are looking for a shower set that looks great and works great, with the added benefit of easy cleaning and maintenance, then the Avignon Shower Set is definitely a great option.
Avignon Solid Brass Luxurious Exposed Oil Rubbed Bronze and Gold Bathroom Shower Set Features:
Type: Shower Set
Cold/Hot Water Control: Yes
Control Type: Dual Control
Style : Contemporary
Number of Handles: Dual Handles
Surface Treatment: Oil Rubbed Bronze and Gold Finish
Type: Fixed Support Type
Valve Core Material: Ceramic
Surface Finish Brass
Feature: Thermostatic Faucets
Installation Type: Wall Mount
|
|
BathSelect® Manufacturer Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

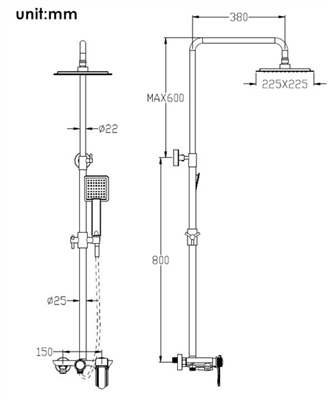

1. Brass Adapter
2. Faucet body
3. Washers
4. Diverter
5. Shower bar
6. Hand shower holder
7. Shower bar bracket
8. Shower bar
9. Mounting base
10. Decoration cover
11. Rain shower head
12. Handheld shower
Step 1: Connect the brass adapter provided to the water supply line.
Step 2: Adjust lever and distance to fit the faucet body.
Step 3: Turn the water valve on for a while to let the dust and impurities out.
Step 4: Assemble the shower set.
Step 5: Place a pre-assembled shower in the wall to find the proper position and then mark the mounting hole that needs to be drilled.
Step 6: Drill a hole for the upper part shower bar bracket, screw it.
Step 7: Place the decoration cover to the brass adapters.
Step 8: Install the pre-assembled shower to the connections.
Step 9: Connect shower hose, handheld shower, and rain shower head.
|
